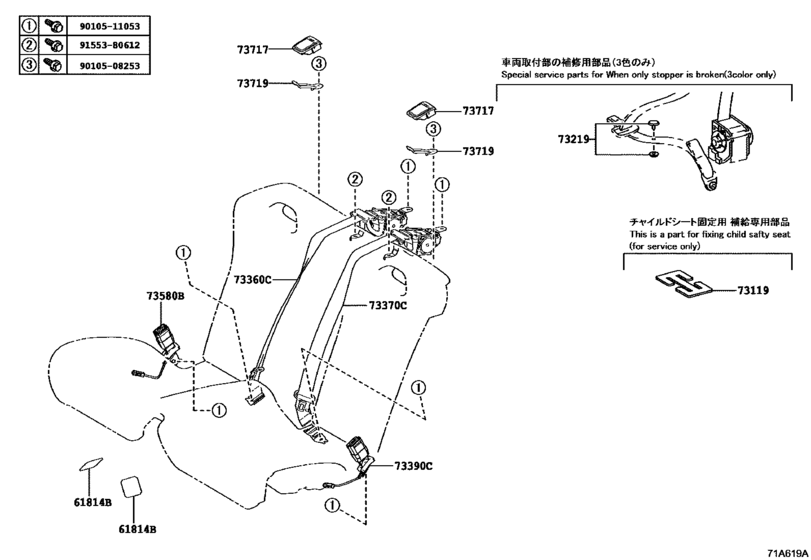

Seat Belt & Child Restraint Seat ([01.2017 - ] REAR SEAT BELT (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61814B
|
61814B
61815-30120 Cover, Roof Side, Inner Upper[03.2017 -] GWZ100,URZ100 |
61815-30120 |
US $6.27 |
||
|
73119
|
73119
73119-22010 Plate, Seat Belt Webbing Clip[03.2017 -] GWZ100,URZ100 |
73119-22010 |
from US $17.67 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[03.2017 -] GWZ100,URZ100 BLACK |
73219-33010 |
from US $0.89 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[03.2017 -] GWZ100,URZ100 GRAY |
73219-33020 |
from US $1.05 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[03.2017 -] GWZ100,URZ100 BEIGE |
73219-33030 |
from US $0.89 |
||
|
73219
|
73219
73219-50010 Stopper, Tongue PlateTONGUE PLATE [03.2017 -] GWZ100,URZ100 MELLOW WHITE |
73219-50010 |
US $1.31 |
||
|
73360C
|
73360C
73360-11020-C5 Belt Assy, Rear No.1 Seat, Outer Rh[03.2017 -] GWZ100,URZ100 OCHRE/BLACK,TRIM4# |
73360-11020-C5 |
US $320.32 |
||
|
73360C
|
73360C
73360-11020-C6 Belt Assy, Rear No.1 Seat, Outer Rh[03.2017 -] GWZ100,URZ100 BLUE/BLACK,TRIM8# |
73360-11020-C6 |
US $320.32 |
||
|
73360C
|
73360C
73360-11020-C7 Belt Assy, Rear No.1 Seat, Outer Rh[03.2017 -] GWZ100,URZ100 BLACK/BLACK,TRIM2#,3# |
73360-11020-C7 |
US $320.32 |
||
|
73370C
|
73370C
73370-11020-C5 Belt Assy, Rear No.1 Seat, Outer Lh[03.2017 -] GWZ100,URZ100 OCHRE/BLACK,TRIM4# |
73370-11020-C5 |
US $320.32 |
||
|
73370C
|
73370C
73370-11020-C6 Belt Assy, Rear No.1 Seat, Outer Lh[03.2017 -] GWZ100,URZ100 BLUE/BLACK,TRIM8# |
73370-11020-C6 |
US $320.32 |
||
|
73370C
|
73370C
73370-11020-C7 Belt Assy, Rear No.1 Seat, Outer Lh[03.2017 -] GWZ100,URZ100 BLACK/BLACK,TRIM2#,3# |
73370-11020-C7 |
US $320.32 |
||
|
73390C
|
73390C
73390-11010-C1 Belt Assy, Rear No.1 Seat, Inner Lh[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3#,4#,8# |
73390-11010-C1 |
US $56.20 |
||
|
73580B
|
73580B
73380-11010-C1 Belt Assy, Rear Seat, Inner Rh[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3#,4#,8# |
73380-11010-C1 |
US $56.20 |
||
|
73717
|
73717
73717-50020-C1 Cover, Child Restraint Seat Tether Anchor[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3# |
73717-50020-C1 |
US $7.69 |
||
|
73717
|
73717
73717-50020-E6 Cover, Child Restraint Seat Tether Anchor[03.2017 -] GWZ100,URZ100 OCHRE,TRIM4# |
73717-50020-E6 |
US $7.28 |
||
|
73717
|
73717
73717-50020-J0 Cover, Child Restraint Seat Tether Anchor[03.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
73717-50020-J0 |
US $7.28 |
||
|
73719
|
73719
73719-11010 Bracket, Child Restraint Seat Tether Anchor[03.2017 -] GWZ100,URZ100 |
73719-11010 |
US $3.79 |
||
|
9010508253
|
9010508253
90105-08253 BOLT WASHER BASED |
90105-08253 |
US $1.61 |
||
|
9010511053
|
9010511053
90105-11053 BOLT FLANGE |
90105-11053 |
from US $1.05 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.61 |
