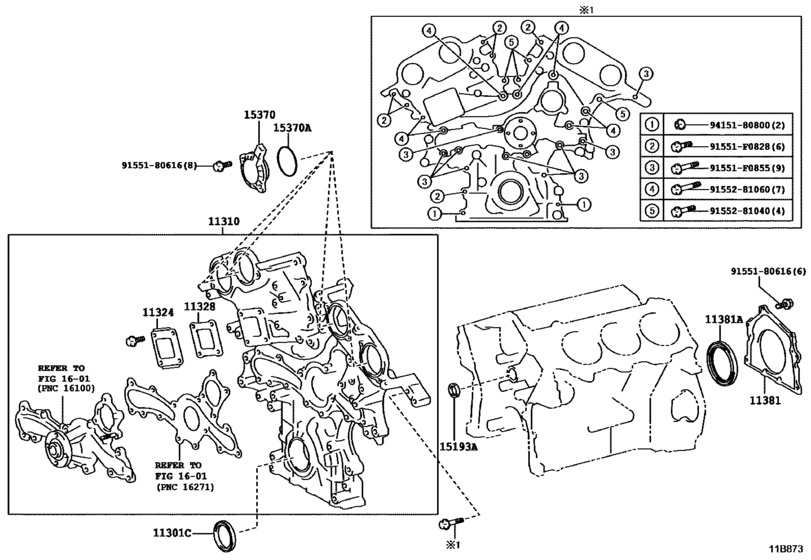

Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301C
|
11301C
90311-42052 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[03.2017 -] 8GRFXS..GWZ100 |
90311-42052 |
from US $6.18 |
||
|
11310
|
11310
11310-31090 Cover Assy, Timing Chain[03.2017 -] 8GRFXS..GWZ100 |
11310-31090 |
US $429.52 |
||
|
11324
|
11324
11324-31020 Plate, Timing Chain Cover[03.2017 -] 8GRFXS..GWZ100 |
11324-31020 |
from US $6.04 |
||
|
11328
|
11328
11328-31030 Gasket, Timing Gear Or Chain Cover[03.2017 -] 8GRFXS..GWZ100 |
11328-31030 |
from US $7.17 |
||
|
11381
|
11381
11381-31030 Retainer, Engine Rear Oil Seal[03.2017 -] 8GRFXS..GWZ100 |
11381-31030 |
US $46.65 |
||
|
11381A
|
11381A
90311-92011 Seal, Engine Rear Oil[03.2017 -] 8GRFXS..GWZ100 |
90311-92011 |
US $20.24 |
||
|
15193A
|
15193A
15193-31020 Gasket, Oil Pump[03.2017 -] 8GRFXS..GWZ100 |
15193-31020 |
from US $2.07 |
||
|
15370
|
15370
15370-31010 Solenoid Assy, Cam Timing Oil Control[03.2017 -] 8GRFXS..GWZ100 |
15370-31010 |
from US $49.32 |
||
|
15370A
|
15370A
90301-50003 Ring, O(For Cam Timing Oil Control Solenoid)[03.2017 -] 8GRFXS..GWZ100 |
90301-50003 |
from US $2.41 |
||
|
91551F0828
|
91551F0828
91551-F0828 BOLT FLANGE |
91551-F0828 |
US $1.43 |
||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.91 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.12 |
||
|
9155281060
|
9155281060
91552-81060 Bolt, No.3(For Alternator) |
91552-81060 |
from US $1.27 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
