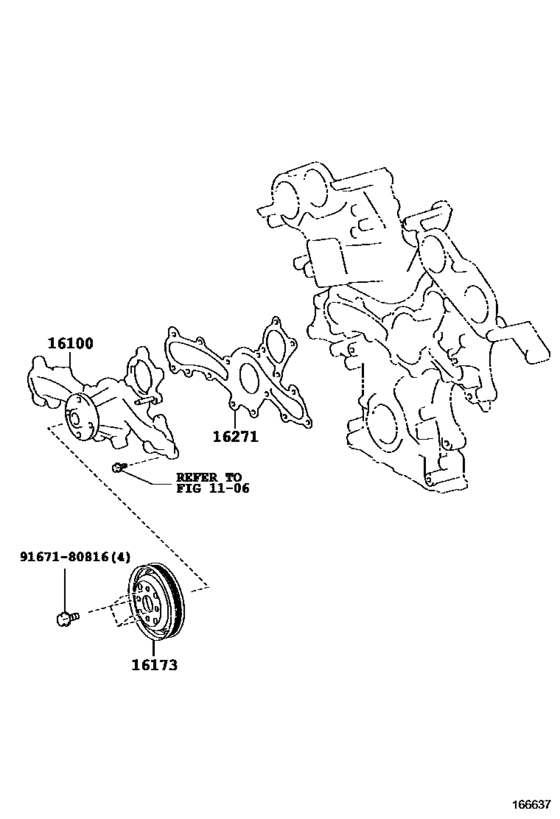

Water Pump ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-39615
Pump Assy, Engine Water
[03.2017 -] 8GRFXS..GWZ100 |
16100-39615 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-39616 PUMP ASSY WATER[03.2017 -] 8GRFXS..GWZ100 |
16100-39616 |
from US $131.35 |
||
|
16173
|
16173
16173-31040 Pulley, Water Pump[03.2017 -] 8GRFXS..GWZ100 |
16173-31040 |
US $40.33 |
||
|
16271
|
16271
16271-31050 Gasket, Water Pump[03.2017 -] 8GRFXS..GWZ100 |
16271-31050 |
US $29.23 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
