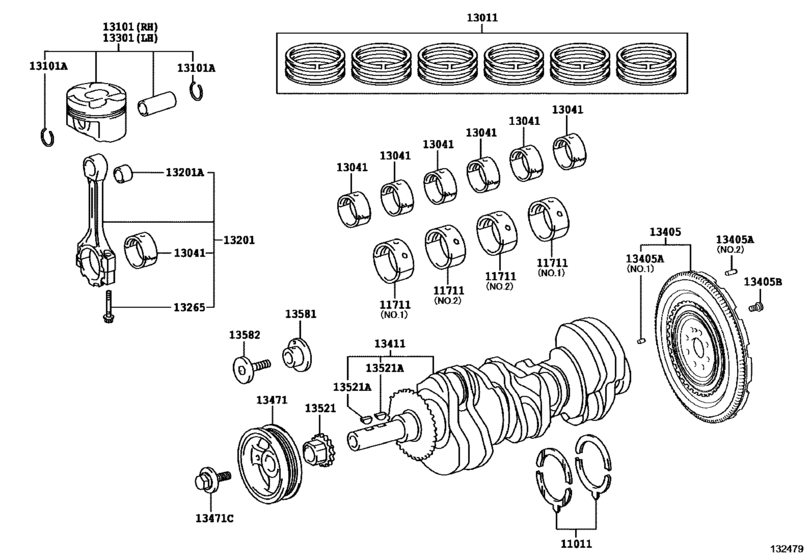

Crankshaft & Piston ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-31080 Washer Set, Crankshaft Thrust[03.2017 -] 8GRFXS..GWZ100 STD |
11011-31080 |
from US $21.84 |
||
|
11711
|
11711
11071-31060-A1 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
11071-31060-A1 |
from US $16.80 |
||
|
11711
|
11711
11071-31060-A2 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
11071-31060-A2 |
US $32.61 |
||
|
11711
|
11711
11071-31060-B2 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
11071-31060-B2 |
from US $16.91 |
||
|
11711
|
11711
11071-31060-B3 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
11071-31060-B3 |
from US $16.95 |
||
|
11711
|
11711
11071-31060-C3 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
11071-31060-C3 |
from US $16.82 |
||
|
11711
|
11711
11071-31060-C4 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
11071-31060-C4 |
US $32.61 |
||
|
11711
|
11711
11071-31060-D4 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
11071-31060-D4 |
from US $16.57 |
||
|
11711
|
11711
11071-31060-D5 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
11071-31060-D5 |
US $32.61 |
||
|
11711
|
11711
11071-31060-E5 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
11071-31060-E5 |
US $32.61 |
||
|
11711
|
11711
11701-31100-A1 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
11701-31100-A1 |
from US $17.90 |
||
|
11711
|
11711
11701-31100-A2 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
11701-31100-A2 |
US $34.65 |
||
|
11711
|
11711
11701-31100-B2 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
11701-31100-B2 |
from US $17.86 |
||
|
11711
|
11711
11701-31100-B3 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
11701-31100-B3 |
US $34.65 |
||
|
11711
|
11711
11701-31100-C3 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
11701-31100-C3 |
from US $17.75 |
||
|
11711
|
11711
11701-31100-C4 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
11701-31100-C4 |
US $34.65 |
||
|
11711
|
11711
11701-31100-D4 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
11701-31100-D4 |
from US $20.27 |
||
|
11711
|
11711
11701-31100-D5 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
11701-31100-D5 |
US $34.65 |
||
|
11711
|
11711
11701-31100-E5 Bearing, Crankshaft[03.2017 -] 8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
11701-31100-E5 |
from US $17.90 |
||
|
13011
|
13011
13011-31290 Ring Set, Piston[03.2017 -] 8GRFXS..GWZ100 STD |
13011-31290 |
from US $213.18 |
||
|
13041
|
13041
13041-31100-01 Bearing, Connecting Rod[03.2017 -] 8GRFXS..GWZ100 MARK 1 |
13041-31100-01 |
from US $10.58 |
||
|
13041
|
13041
13041-31100-02 Bearing, Connecting Rod[03.2017 -] 8GRFXS..GWZ100 MARK 2 |
13041-31100-02 |
from US $10.83 |
||
|
13041
|
13041
13041-31100-03 Bearing, Connecting Rod[03.2017 -] 8GRFXS..GWZ100 MARK 3 |
13041-31100-03 |
from US $10.89 |
||
|
13041
|
13041
13041-31100-04 Bearing, Connecting Rod[03.2017 -] 8GRFXS..GWZ100 MARK 4 |
13041-31100-04 |
from US $10.94 |
||
|
13101
|
13101
13101-31181-A0 Piston Sub-Assy, W/pin[03.2017 -] 8GRFXS..GWZ100 STD,MARK A |
13101-31181-A0 |
US $61.01 |
||
|
13101
|
13101
13101-31181-B0 Piston Sub-Assy, W/pin[03.2017 -] 8GRFXS..GWZ100 STD,MARK B |
13101-31181-B0 |
US $61.01 |
||
|
13101
|
13101
13101-31181-C0 Piston Sub-Assy, W/pin[03.2017 -] 8GRFXS..GWZ100 STD,MARK C |
13101-31181-C0 |
US $61.01 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[03.2017 -] 8GRFXS..GWZ100 |
90520-22025 |
from US $1.90 |
||
|
13201
|
13201
13201-39285-A0 Rod Sub-Assy, Connecting[03.2017 -] 8GRFXS..GWZ100 MARK A |
13201-39285-A0 |
from US $144.14 |
||
|
13201
|
13201
13201-39285-B0 Rod Sub-Assy, Connecting[03.2017 -] 8GRFXS..GWZ100 MARK B |
13201-39285-B0 |
US $139.78 |
||
|
13201
|
13201
13201-39285-C0 Rod Sub-Assy, Connecting[03.2017 -] 8GRFXS..GWZ100 MARK C |
13201-39285-C0 |
US $152.01 |
||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[03.2017 -] 8GRFXS..GWZ100 |
90999-73144 |
from US $2.32 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[03.2017 -] 8GRFXS..GWZ100 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[03.2017 -] 8GRFXS..GWZ100 |
13265-28020 |
from US $2.77 |
||
|
13301
|
13301
13301-31111-A0 Piston Sub-Assy, W/pin, Lh[03.2017 -] 8GRFXS..GWZ100 STD,MARK A |
13301-31111-A0 |
from US $64.12 |
||
|
13301
|
13301
13301-31111-B0 Piston Sub-Assy, W/pin, Lh[03.2017 -] 8GRFXS..GWZ100 STD,MARK B |
13301-31111-B0 |
US $61.01 |
||
|
13301
|
13301
13301-31111-C0 Piston Sub-Assy, W/pin, Lh[03.2017 -] 8GRFXS..GWZ100 STD,MARK C |
13301-31111-C0 |
US $61.01 |
||
|
13405
|
13405
13405-31150 Flywheel Sub-Assy[03.2017 -] 8GRFXS..GWZ100 |
13405-31150 |
US $248.98 |
||
|
13405A
|
13405A
90250-06027 Pin, Straight(For Oil Pan Cover)[03.2017 -] 8GRFXS..GWZ100 L=10,OD=6,NO.1 |
90250-06027 |
US $1.25 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[03.2017 -] 8GRFXS..GWZ100 L=23,OD=8,NO.2 |
90250-08054 |
from US $0.95 |
||
|
13405B
|
13405B
90105-10048 Bolt, Flywheel Setting[03.2017 -] 8GRFXS..GWZ100 |
90105-10048 |
from US $1.08 |
||
|
13411
|
13411
13401-31080 Crankshaft[03.2017 -] 8GRFXS..GWZ100 |
13401-31080 |
from US $1,164.02 |
||
|
13471
|
13471
13470-31080 Pulley, Crankshaft[03.2017 -] 8GRFXS..GWZ100 |
13470-31080 |
US $104.83 |
||
|
13471C
|
13471C
90119-16020 Bolt(For Crankshaft Pulley Set)[03.2017 -] 8GRFXS..GWZ100 |
90119-16020 |
from US $5.05 |
||
|
13521
|
13521
13521-31070 Gear Or Sprocket, Crankshaft Timing[03.2017 -] 8GRFXS..GWZ100 |
13521-31070 |
from US $19.65 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[03.2017 -] 8GRFXS..GWZ100 |
95161-30516 |
from US $1.06 |
||
|
13581
|
13581
13581-31030 Shaft, Idle Gear, No.1[03.2017 -] 8GRFXS..GWZ100 |
13581-31030 |
from US $6 |
||
|
13582
|
13582
13582-31031 Shaft, Idle Gear, No.2[03.2017 -] 8GRFXS..GWZ100 |
13582-31031 |
from US $2.34 |
||
