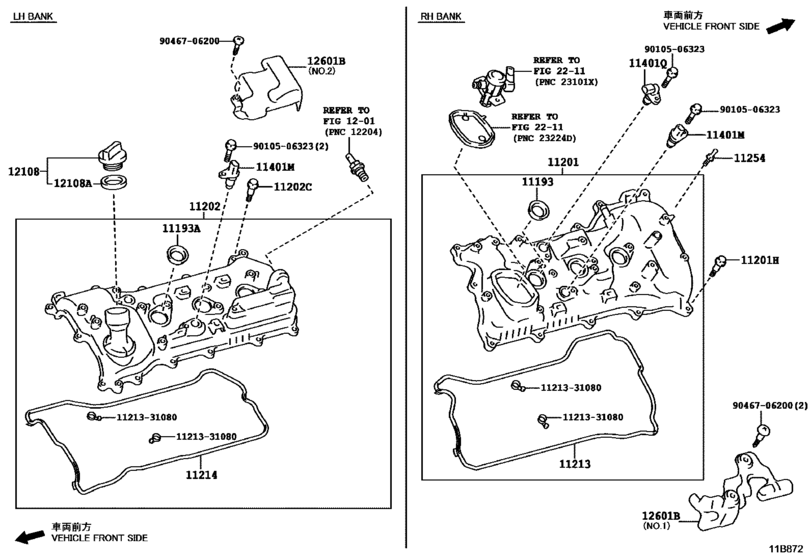

Cylinder Head ([03.2017 - ] CYLINDER HEAD COVER (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11193
|
11193
11193-31010 Gasket(For Spark Plug Tube)[03.2017 -] 8GRFXS..GWZ100 |
11193-31010 |
from US $2.09 |
||
|
11193A
|
11193A
11193-31010 Gasket(For Spark Plug Tube)[03.2017 -] 8GRFXS..GWZ100 |
11193-31010 |
from US $2.09 |
||
|
11201
|
11201
11201-31301 Cover Sub-Assy, Cylinder Head[03.2017 -] 8GRFXS..GWZ100 |
11201-31301 |
US $184.91 |
||
|
11201H
|
11201H
90109-06384 Bolt(For Cylinder Head Cover)[03.2017 -] 8GRFXS..GWZ100 |
90109-06384 |
from US $0.74 |
||
|
11202
|
11202
11202-31080 Cover Sub-Assy, Cylinder Head, Lh[03.2017 - 04.2017] 8GRFXS..GWZ100 |
11202-31080 |
US $184.91 |
||
|
11202C
|
11202C
90109-06384 Bolt(For Cylinder Head Cover)[03.2017 -] 8GRFXS..GWZ100 |
90109-06384 |
from US $0.74 |
||
|
11213
|
11213
11213-31070
Gasket, Cylinder Head Cover
[03.2017 -] 8GRFXS..GWZ100 |
11213-31070 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-31090 GASKET CYLINDER[03.2017 -] 8GRFXS..GWZ100 |
11213-31090 |
from US $10.53 |
||
|
11214
|
11214
11214-31050
Gasket, Cylinder Head Cover, No.2
[03.2017 -] 8GRFXS..GWZ100 |
11214-31050 |
— | ||
| replacement | |||||
|
11214
|
11214
11214-31070 GASKET CYLINDER[03.2017 -] 8GRFXS..GWZ100 |
11214-31070 |
from US $10.43 |
||
|
11254
|
11254
11254-31020 Bracket, V-Bank Cover, No.1[03.2017 -] 8GRFXS..GWZ100 |
11254-31020 |
US $1.79 |
||
|
11401M
|
11401M
90919-05060 Sensor, Cam Position[03.2017 -] 8GRFXS..GWZ100 |
90919-05060 |
from US $69.38 |
||
|
11401Q
|
11401Q
90919-05061 Sensor, Cam Position[03.2017 -] 8GRFXS..GWZ100 |
90919-05061 |
from US $69.38 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[03.2017 -] 8GRFXS..GWZ100 |
12180-38010 |
from US $11.13 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
90430-35001 |
from US $1.14 |
||
|
12601B
|
12601B
12601-31040 Cover Sub-Assy, Engine, No.1[03.2017 -] 8GRFXS..GWZ100 NO.2 |
12601-31040 |
US $20.97 |
||
|
12601B
|
12601B
12601-31050 Cover Sub-Assy, Engine, No.1[03.2017 -] 8GRFXS..GWZ100 |
12601-31050 |
from US $22.36 |
||
|
1121331080
|
1121331080
11213-31080 Gasket, Cylinder Head Cover, No.2 |
11213-31080 |
from US $5.36 |
||
|
9010506323
|
9010506323
90105-06323 BOLT FLANGE |
90105-06323 |
US $0.73 |
||
|
9046706200
|
9046706200
90467-06200 CLIP |
90467-06200 |
US $1.79 |
||
