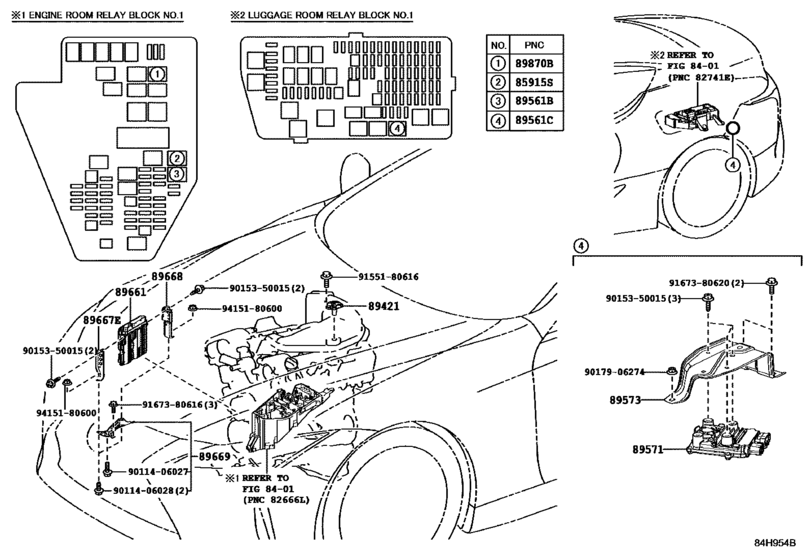

Electronic Fuel Injection System ([03.2017 - ] (1703- )GWZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915S
|
85915S
90987-02027 Relay[03.2017 -] GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
||
|
89421
|
89421
89421-47010 Sensor Assy, VacuumVACUUM (FOR E.F.I.) [03.2017 -] GWZ100 |
89421-47010 |
from US $96.76 |
||
|
89561B
|
89561B
90987-02027 Relay[03.2017 -] GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
||
|
89561C
|
89561C
90987-02027 Relay[03.2017 -] GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
||
|
89571
|
89571
89571-58010 Computer, Fuel Pump Control[03.2017 -] GWZ100,URZ100 |
89571-58010 |
US $134.53 |
||
|
89573
|
89573
89573-11010 Bracket, Fuel Pump Control Computer[03.2017 -] GWZ100,URZ100 |
89573-11010 |
US $25.04 |
||
|
89661
|
89661
89661-11130
Computer, Engine Control
[03.2017 -] GWZ100 |
89661-11130 |
— | ||
|
89661
|
89661
89661-11150
Computer, Engine Control
[03.2017 -] GWZ100..ARL BRUNEI SPEC; GWZ100..GCC JORDAN SPEC; GWZ100..GEN PHILIPPINE SPEC; GWZ100..GEN MIDDLE & SOUTH AMERICA SPEC; GWZ100..GCC LEBANON SPEC; GWZ100..GEN COSTA RICA & PANAMA SPEC |
89661-11150 |
— | ||
|
89667E
|
89667E
89667-11030 Bracket, Engine Control Computer, No.1[03.2017 -] GWZ100 |
89667-11030 |
US $14.27 |
||
|
89668
|
89668
89668-11030 Bracket, Engine Control Computer, No.2[03.2017 -] GWZ100 |
89668-11030 |
US $18.20 |
||
|
89669
|
89669
89669-11030 Bracket, Engine Control Computer, No.3[03.2017 -] GWZ100 |
89669-11030 |
US $31.60 |
||
|
89870B
|
89870B
90987-02027 Relay[03.2017 -] GWZ100 |
90987-02027 |
from US $47.82 |
||
|
9011406027
|
9011406027
90114-06027 New Genuine Part |
90114-06027 |
US $0.73 |
||
|
9011406028
|
9011406028
90114-06028 New Genuine Part |
90114-06028 |
US $0.73 |
||
|
9015350015
|
9015350015
90153-50015 New Genuine Part |
90153-50015 |
US $1.08 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.63 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
