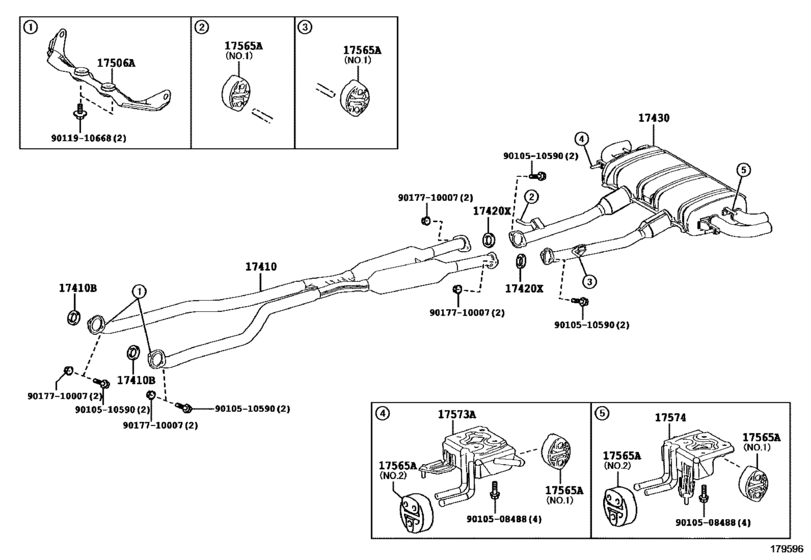

Exhaust Pipe ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-31F20 Pipe Assy, Exhaust, Front[03.2017 -] 8GRFXS..GWZ100 |
17410-31F20 |
US $677.04 |
||
|
17410B
|
17410B
90917-06078 Gasket, Exhaust Pipe[03.2017 -] 8GRFXS..GWZ100 |
90917-06078 |
from US $5.93 |
||
| replacement | |||||
|
17410B
|
17410B
90917-A6003 Gasket, Exhaust Pipe[03.2017 -] 8GRFXS..GWZ100 |
90917-A6003 |
US $27.68 |
||
|
17420X
|
17420X
90917-06083 Gasket, Exhaust Pipe[03.2017 -] 8GRFXS..GWZ100 |
90917-06083 |
from US $4.64 |
||
|
17430
|
17430
17430-31E51
Pipe Assy, Exhaust, Tail
[03.2017 -] 8GRFXS..GWZ100 |
17430-31E51 |
— | ||
|
17506A
|
17506A
17506-31140 Bracket Sub-Assy, Exhaust Pipe No.1 Support[03.2017 -] 8GRFXS..GWZ100 |
17506-31140 |
US $33.92 |
||
|
17565A
|
17565A
17565-28010 Support, Exhaust Pipe, No.1[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 NO.1 |
17565-28010 |
from US $9.22 |
||
|
17565A
|
17565A
17565-31050 Support, Exhaust Pipe, No.1[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 NO.2 |
17565-31050 |
from US $12.07 |
||
|
17573A
|
17573A
17573-38072 Bracket, Exhaust Pipe Support, No.3[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
17573-38072 |
US $24.75 |
||
|
17574
|
17574
17574-38092 Bracket, Exhaust Pipe Support, No.4[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
17574-38092 |
US $24.75 |
||
|
9010508488
|
9010508488
90105-08488 New Genuine Part |
90105-08488 |
US $1.43 |
||
|
9010510590
|
9010510590
90105-10590 BOLT FLANGE |
90105-10590 |
US $1.79 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.33 |
||
|
9017710007
|
9017710007
90177-10007 NUT LOCK |
90177-10007 |
from US $0.80 |
||
