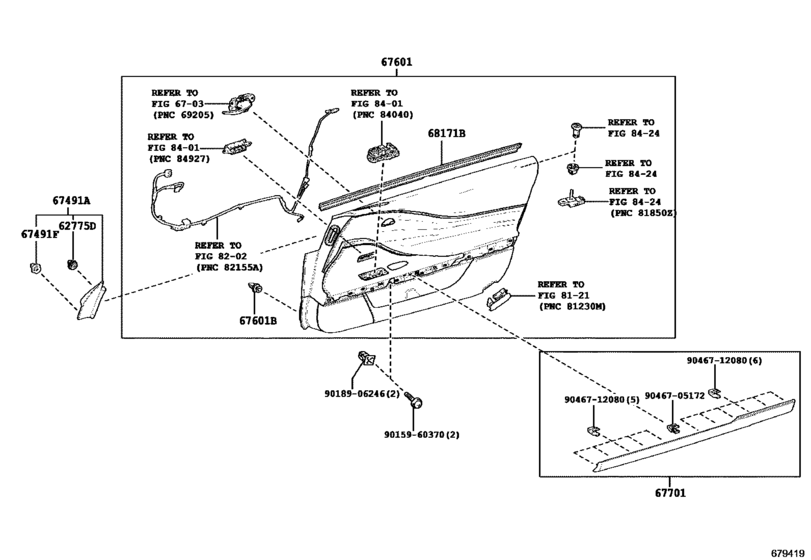

Front Door Panel & Glass ([03.2017 - ] DOOR TRIM DRIVER SIDE (1703- )ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62775D
|
62775D
62707-48010 Clip, Center Piller GarnishUPPER) [03.2017 -] GWZ100,URZ100 |
62707-48010 |
from US $2.04 |
||
|
67491A
|
67491A
67491-11010 Garnish, Front Door Lower Frame Bracket, Rh[03.2017 -] GWZ100,URZ100 |
67491-11010 |
US $16.02 |
||
|
67491F
|
67491F
90467-09233 Clip(For Door Trim)[03.2017 -] GWZ100,URZ100 |
90467-09233 |
US $1.43 |
||
|
67601
|
67601
67610-11030-20 Board Sub-Assy, Front Door Trim, Rh[03.2017 -] GWZ100,URZ100..ARL DK.ROSE,TRIM3# |
67610-11030-20 |
US $3,246.88 |
||
|
67601
|
67601
67610-11030-21 Board Sub-Assy, Front Door Trim, Rh[03.2017 -] GWZ100,URZ100..ARL BLACK,TRIM2# |
67610-11030-21 |
US $3,246.88 |
||
|
67601
|
67601
67610-11030-E2 Board Sub-Assy, Front Door Trim, Rh[03.2017 -] GWZ100,URZ100..ARL OCHRE,TRIM4# |
67610-11030-E2 |
US $3,246.88 |
||
|
67601
|
67601
67610-11030-J3 Board Sub-Assy, Front Door Trim, Rh[03.2017 -] GWZ100,URZ100..ARL BLUE,TRIM8# |
67610-11030-J3 |
US $3,246.88 |
||
|
67601B
|
67601B
90467-09233 Clip(For Door Trim)[03.2017 -] GWZ100,URZ100 |
90467-09233 |
US $1.43 |
||
|
67701
|
67701
67701-11010-C3 Cover Sub-Assy, Front Door Trim, Rh[03.2017 -] GWZ100,URZ100..ARL BLACK,TRIM2#,3# |
67701-11010-C3 |
US $230.05 |
||
|
67701
|
67701
67701-11010-E1 Cover Sub-Assy, Front Door Trim, Rh[03.2017 -] GWZ100,URZ100..ARL OCHRE,TRIM4# |
67701-11010-E1 |
US $230.05 |
||
|
67701
|
67701
67701-11010-J1 Cover Sub-Assy, Front Door Trim, Rh[03.2017 -] GWZ100,URZ100..ARL BLUE,TRIM8# |
67701-11010-J1 |
US $230.05 |
||
|
68171B
|
68171B
68171-11010 Weatherstrip, Front Door Glass, Inner Rh[03.2017 -] GWZ100,URZ100 |
68171-11010 |
US $38.73 |
||
|
9015960370
|
9015960370
90159-60370 SCREW WWASHER |
90159-60370 |
US $1.25 |
||
|
9018906246
|
9018906246
90189-06246 New Genuine Part |
90189-06246 |
US $1.25 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
from US $0.63 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.74 |
