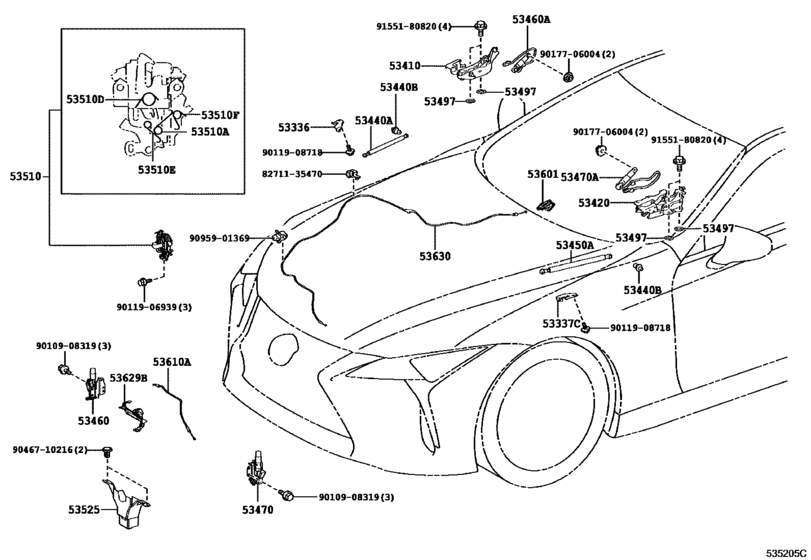

Hood Lock & Hinge ([03.2017 - ] (1703- )ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53336
|
53336
53336-11010 Bracket, Hood Stay, Rh[03.2017 -] GWZ100,URZ100 |
53336-11010 |
US $5.29 |
||
|
53337C
|
53337C
53337-11010 Bracket, Hood Stay, Lh[03.2017 -] GWZ100,URZ100 |
53337-11010 |
US $5.29 |
||
|
53410
|
53410
53410-11060 Hinge Assy, Hood, Rh[03.2017 -] GWZ100,URZ100 |
53410-11060 |
from US $46.55 |
||
|
53420
|
53420
53420-11060 Hinge Assy, Hood, Lh[03.2017 -] GWZ100,URZ100 |
53420-11060 |
from US $46.70 |
||
|
53440A
|
53440A
53440-0W400 Support Assy, Hood[03.2017 -] GWZ100,URZ100 |
53440-0W400 |
from US $100.04 |
||
|
53440B
|
53440B
68961-20051 Bolt, Hood Support, No.1[03.2017 -] GWZ100,URZ100 |
68961-20051 |
from US $5.28 |
||
|
53450A
|
53450A
53440-0W400 Support Assy, Hood[03.2017 -] GWZ100,URZ100 |
53440-0W400 |
from US $100.04 |
||
|
53460
|
53460
53460-11040 Lifter Assy, Pop Up Hood, Rh[03.2017 -] GWZ100,URZ100 |
53460-11040 |
US $626.60 |
||
|
53460A
|
53460A
53460-11050 Lifter Assy, Pop Up Hood, No.2[03.2017 -] GWZ100,URZ100 |
53460-11050 |
US $626.60 |
||
|
53470
|
53470
53470-11040 Lifter Assy, Pop Up Hood, Lh[03.2017 -] GWZ100,URZ100 |
53470-11040 |
US $626.60 |
||
|
53470A
|
53470A
53460-11050 Lifter Assy, Pop Up Hood, No.2[03.2017 -] GWZ100,URZ100 |
53460-11050 |
US $626.60 |
||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[03.2017 -] GWZ100,URZ100 T=1.0 |
53497-50020 |
from US $2.19 |
||
|
53510
|
53510
53510-11010 Lock Assy, Hood[03.2017 -] GWZ100,URZ100 |
53510-11010 |
from US $49.22 |
||
|
53510A
|
53510A
90508-09016 Spring, Tension(For Hood Lock)[03.2017 -] GWZ100,URZ100 WD=0.9 |
90508-09016 |
US $1.02 |
||
|
53510D
|
53510D
90508-14127 Spring, Tension(For Hood Lock)[03.2017 -] GWZ100,URZ100 WD=1.4 |
90508-14127 |
US $1.02 |
||
|
53510E
|
53510E
90508-14128 Spring, Tension(For Hood Lock)[03.2017 -] GWZ100,URZ100 WD=1.4 |
90508-14128 |
US $1.02 |
||
|
53510F
|
53510F
90508-14129 Spring, Tension(For Hood Lock)[03.2017 -] GWZ100,URZ100 WD=1.4 |
90508-14129 |
US $1.02 |
||
|
53525
|
53525
53525-11010
Protector, Hood Lock Release Lever
[03.2017 -] GWZ100,URZ100 |
53525-11010 |
— | ||
| replacement | |||||
|
53525
|
53525
53525-11020 Protector, Hood Lock Release Lever[03.2017 -] GWZ100,URZ100 |
53525-11020 |
US $23.46 |
||
|
53601
|
53601
53601-30090-C1 Lever Sub-Assy, Hood Lock Control[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3# |
53601-30090-C1 |
from US $23.69 |
||
|
53601
|
53601
53601-30090-E3 Lever Sub-Assy, Hood Lock Control[03.2017 -] GWZ100,URZ100 OCHRE,TRIM4# |
53601-30090-E3 |
US $18.93 |
||
|
53601
|
53601
53601-30090-J1 Lever Sub-Assy, Hood Lock Control[03.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
53601-30090-J1 |
US $18.93 |
||
|
53610A
|
53610A
53610-11010 Control Assy, Hood Lock[03.2017 -] GWZ100,URZ100 |
53610-11010 |
US $13.69 |
||
|
53629B
|
53629B
53629-11010 Cover, Hood Lock Control Cable, Rh[03.2017 -] GWZ100,URZ100 |
53629-11010 |
US $8.27 |
||
|
53630
|
53630
53630-11020 Cable Assy, Hood Lock Control[03.2017 -] GWZ100,URZ100..ARL |
53630-11020 |
US $13.25 |
||
|
8271135470
|
8271135470
82711-35470 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35470 |
US $3.94 |
||
|
9010908319
|
9010908319
90109-08319 Bolt |
90109-08319 |
US $1.43 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.63 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
||
|
9017706004
|
9017706004
90177-06004 Nut |
90177-06004 |
US $1.08 |
||
|
9046710216
|
9046710216
90467-10216 Clip, Engine Under Cover, No.2 |
90467-10216 |
from US $1.05 |
||
|
9095901369
|
9095901369
90959-01369 Clamp, Hood Lock Control Cable |
90959-01369 |
from US $0.97 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
