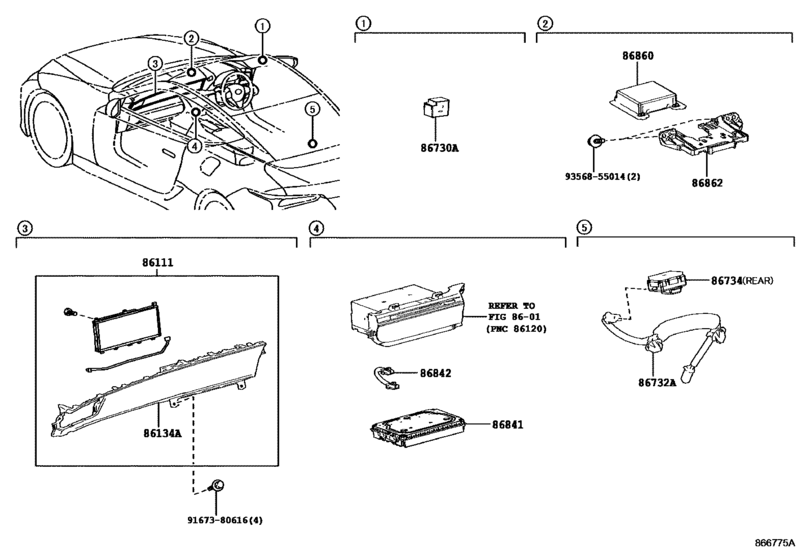

Navigation & Front Monitor Display ([03.2017 - ] (1703- )ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86111
|
86111
86111-11010-A0
Multi-Display
[03.2017 -] GWZ100,URZ100..ARL DENSO,AR COAT,TRIM4# |
86111-11010-A0 |
— | ||
|
86111
|
86111
86111-11010-A1
Multi-Display
[03.2017 -] GWZ100,URZ100..ARL DENSO,TRANSPARENT,TRIM2#,3#,8# |
86111-11010-A1 |
— | ||
|
86134A
|
86134A
86134-11020-A0 Parts, Multi-Display[03.2017 -] GWZ100,URZ100..ARL AR COAT,TRIM4# |
86134-11020-A0 |
US $103.38 |
||
|
86134A
|
86134A
86134-11020-A1 Parts, Multi-Display[03.2017 -] GWZ100,URZ100..ARL TRANSPARENT,TRIM2#,3#,8# |
86134-11020-A1 |
US $103.38 |
||
|
86730A
|
86730A
86730-11010
Microphone Assy, Telephone
[03.2017 -] GWZ100,URZ100 |
86730-11010 |
— | ||
| replacement | |||||
|
86730A
|
86730A
86730-48110 MICROPHONE ASSY[03.2017 -] GWZ100,URZ100 |
86730-48110 |
from US $90.85 |
||
|
86732A
|
86732A
86732-11010 Wire,microphone[03.2017 -] GWZ100,URZ100 |
86732-11010 |
US $5.53 |
||
|
86734
|
86734
86734-11010 Microphone, Active Noise Control, Front[03.2017 -] GWZ100,URZ100 REAR |
86734-11010 |
US $25.04 |
||
|
86841
|
86841
86840-11050
Computer, Navigation
[03.2017 -] GWZ100,URZ100..ARL BRUNEI SPEC; URZ100..ARL INDONESIA SPEC; GWZ100,URZ100..ARL SINGAPORE SPEC; GWZ100..ARL THAILAND SPEC; GWZ100,URZ100..ARL MALAYSIA SPEC; GWZ100,URZ100..GEN PHILIPPINE SPEC |
86840-11050 |
— | ||
|
86841
|
86841
86840-11090
Computer, Navigation
[03.2017 -] GWZ100,URZ100..ARL |
86840-11090 |
— | ||
|
86841
|
86841
86840-11110
Computer, Navigation
[03.2017 -] GWZ100..ARL HONGKONG SPEC |
86840-11110 |
— | ||
|
86842
|
86842
86842-11010 Wire, Navigation, No.1[03.2017 -] GWZ100,URZ100 |
86842-11010 |
US $31.89 |
||
|
86860
|
86860
86860-78010
Antenna Assy, Navigation
[03.2017 -] GWZ100,URZ100 |
86860-78010 |
— | ||
|
86862
|
86862
86862-58020 Bracket, Navigation Antenna[03.2017 -] GWZ100,URZ100 |
86862-58020 |
from US $12.67 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.63 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
