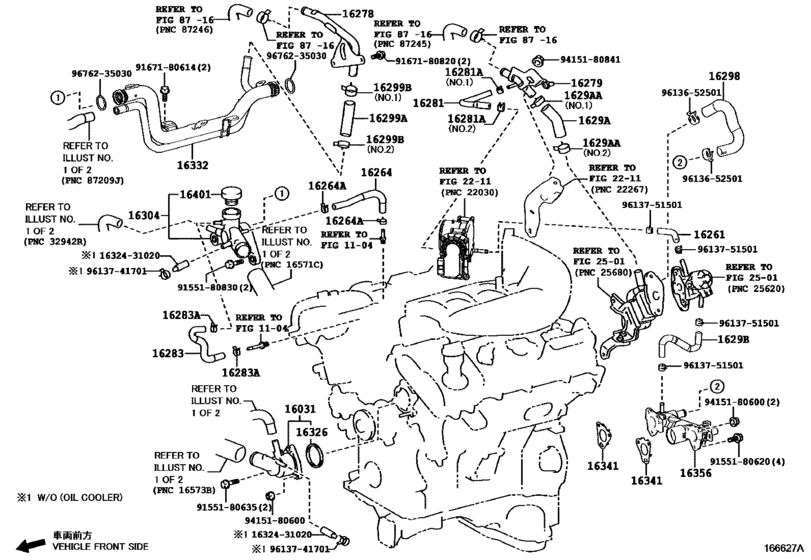

Radiator & Water Outlet ([03.2017 - ] (1703- )8GRFXS..ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1629A
|
1629A
1629A-31010 Hose, Water By-Pass, No.14[03.2017 -] 8GRFXS..GWZ100 |
1629A-31010 |
US $4.66 |
||
|
1629AA
|
1629AA
96136-52501 Clip(For Water By-Pass Hose No.1)[03.2017 -] 8GRFXS..GWZ100 NO.2 |
96136-52501 |
from US $3.19 |
||
|
1629AA
|
1629AA
96138-52501 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 8GRFXS..GWZ100 NO.1 |
96138-52501 |
from US $3.23 |
||
|
1629B
|
1629B
1629B-31010 Hose, Water By-Pass, No.15[03.2017 -] 8GRFXS..GWZ100 |
1629B-31010 |
US $4.66 |
||
|
16031
|
16031
16031-31080 Water Inlet Sub-Assy, W/thermostat[03.2017 -] 8GRFXS..GWZ100 |
16031-31080 |
US $51.83 |
||
|
16261
|
16261
16261-31150 Hose, Water By-Pass[03.2017 -] 8GRFXS..GWZ100 |
16261-31150 |
US $4.66 |
||
|
16264
|
16264
16264-31180 Hose, Water By-Pass, No.2[03.2017 -] 8GRFXS..GWZ100 |
16264-31180 |
US $4.66 |
||
|
16264A
|
16264A
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)[03.2017 -] 8GRFXS..GWZ100 |
96137-41301 |
from US $2.07 |
||
|
16278
|
16278
16278-31040 Pipe, Water By-Pass, No.2[03.2017 -] 8GRFXS..GWZ100 |
16278-31040 |
US $40.19 |
||
|
16279
|
16279
16279-31030 Pipe, Water By-Pass, No.3[03.2017 -] 8GRFXS..GWZ100 |
16279-31030 |
US $25.04 |
||
|
16281
|
16281
16281-31130 Hose, Water By-Pass, No.4[03.2017 -] 8GRFXS..GWZ100 |
16281-31130 |
US $4.66 |
||
|
16281A
|
16281A
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)[03.2017 -] 8GRFXS..GWZ100 NO.1 |
96137-41301 |
from US $2.07 |
||
|
16281A
|
16281A
96137-51501 Clip(For Water By-Pass Hose Assy)[03.2017 -] 8GRFXS..GWZ100 NO.2 |
96137-51501 |
US $2.15 |
||
|
16283
|
16283
16283-31080 Hose, Water By-Pass, No.6[03.2017 -] 8GRFXS..GWZ100 |
16283-31080 |
US $4.66 |
||
|
16283A
|
16283A
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)[03.2017 -] 8GRFXS..GWZ100 |
96137-41301 |
from US $2.07 |
||
|
16298
|
16298
16298-31020 Hose, Water By-Pass, No.12[03.2017 -] 8GRFXS..GWZ100 |
16298-31020 |
US $7.28 |
||
|
16299A
|
16299A
16299-31020 Hose, Water By-Pass, No.13[03.2017 -] 8GRFXS..GWZ100 |
16299-31020 |
US $4.66 |
||
|
16299B
|
16299B
96136-52501 Clip(For Water By-Pass Hose No.1)[03.2017 -] 8GRFXS..GWZ100 NO.2 |
96136-52501 |
from US $3.19 |
||
|
16299B
|
16299B
96138-52501 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 8GRFXS..GWZ100 NO.1 |
96138-52501 |
from US $3.23 |
||
|
16304
|
16304
16304-31140 Outlet Sub-Assy, Water[03.2017 -] 8GRFXS..GWZ100 |
16304-31140 |
US $38.61 |
||
|
16326
|
16326
16326-31050 Gasket, Water Inlet Housing, No.2[03.2017 -] 8GRFXS..GWZ100 |
16326-31050 |
from US $0.67 |
||
|
16332
|
16332
16332-31050 Pipe, Water Outlet, No.1[03.2017 -] 8GRFXS..GWZ100 |
16332-31050 |
US $96.10 |
||
|
16341
|
16341
16341-31030 Gasket, Water Outlet[03.2017 -] 8GRFXS..GWZ100 |
16341-31030 |
US $3.32 |
||
|
16356
|
16356
16356-31080 Joint, Water By-Pass, Rear[03.2017 -] 8GRFXS..GWZ100 |
16356-31080 |
US $86.31 |
||
|
16401
|
16401
16501-36013 Cap Sub-Assy, Radiator[03.2017 -] 8GRFXS..GWZ100 |
16501-36013 |
from US $7.89 |
||
|
1632431020
|
1632431020
16324-31020 New Genuine Part |
16324-31020 |
US $4.80 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.63 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.76 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.89 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.76 |
||
|
9613652501
|
9613652501
96136-52501 Clip(For Water By-Pass Hose No.1) |
96136-52501 |
from US $3.19 |
||
|
9613741701
|
9613741701
96137-41701 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96137-41701 |
from US $2.36 |
||
|
9613751501
|
9613751501
96137-51501 Clip(For Water By-Pass Hose Assy) |
96137-51501 |
US $2.15 |
||
|
9676235030
|
9676235030
96762-35030 RING O |
96762-35030 |
from US $2.18 |
