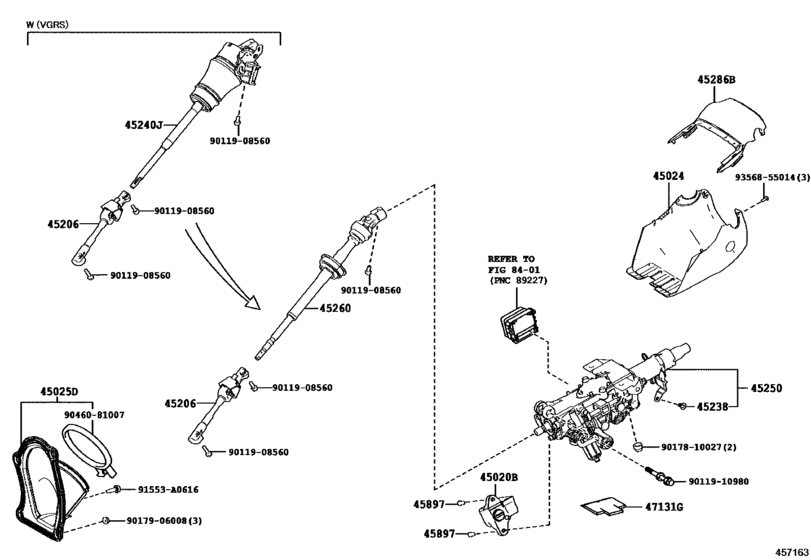

Steering Column & Shaft ([03.2017 - ] (1703- )ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020B
|
45020B
45020-33260 Actuator Or Upper Bracket Assy, Steering Lock[03.2017 -] GWZ100,URZ100 |
45020-33260 |
US $182 |
||
|
45024
|
45024
45024-11010-C1 Cover Sub-Assy, Steering Column, Lower[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3#,4# |
45024-11010-C1 |
US $33.49 |
||
|
45024
|
45024
45024-11010-J0 Cover Sub-Assy, Steering Column, Lower[03.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
45024-11010-J0 |
US $33.49 |
||
|
45025D
|
45025D
45025-11020 Cover Sub-Assy, Steering Column Hole, No.1[03.2017 -] GWZ100,URZ100..ARL |
45025-11020 |
US $36.98 |
||
|
45206
|
45206
45206-11020 Yoke Sub-Assy, Steering Sliding W/shaft[03.2017 -] GWZ100,URZ100..ARL |
45206-11020 |
US $116.48 |
||
|
45238
|
45238
45238-11010 Clamp, Bolt(For Steering Flexible Coupling)[03.2017 -] GWZ100,URZ100 |
45238-11010 |
US $0.87 |
||
|
45240J
|
45240J
45240-11020 Actuator Assy, Steering[03.2017 -] GWZ100,URZ100..ARL SPORT PLUS |
45240-11020 |
US $1,645.28 |
||
|
45250
|
45250
45250-33D60 Column Assy, Steering[03.2017 -] GWZ100,URZ100 |
45250-33D60 |
US $1,356.99 |
||
|
45260
|
45260
45260-11020 Shaft Assy, Steering Intermediate, No.2[03.2017 -] GWZ100,URZ100..ARL |
45260-11020 |
US $174.72 |
||
|
45286B
|
45286B
45286-11010-C1 Cover, Steering Column, Upr[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3#,4# |
45286-11010-C1 |
US $18.20 |
||
|
45286B
|
45286B
45286-11010-J0 Cover, Steering Column, Upr[03.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
45286-11010-J0 |
US $18.20 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[03.2017 -] GWZ100,URZ100 |
45897-12020 |
from US $2.62 |
||
|
47131G
|
47131G
47131-11030 Cushion[03.2017 -] GWZ100,URZ100 |
47131-11030 |
US $0.73 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.43 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9011910980
|
9011910980
90119-10980 Bolt, Tilt Steering Pawl Set |
90119-10980 |
from US $1.41 |
||
|
9017810027
|
9017810027
90178-10027 New Genuine Part |
90178-10027 |
US $1.79 |
||
|
9017906008
|
9017906008
90179-06008 Nut, Rear Wiper Link Pivot, No.1 |
90179-06008 |
US $0.73 |
||
| replacement | |||||
|
9017906008
|
9017906008
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9046081007
|
9046081007
90460-81007 CLAMP HOSE |
90460-81007 |
US $2.91 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
