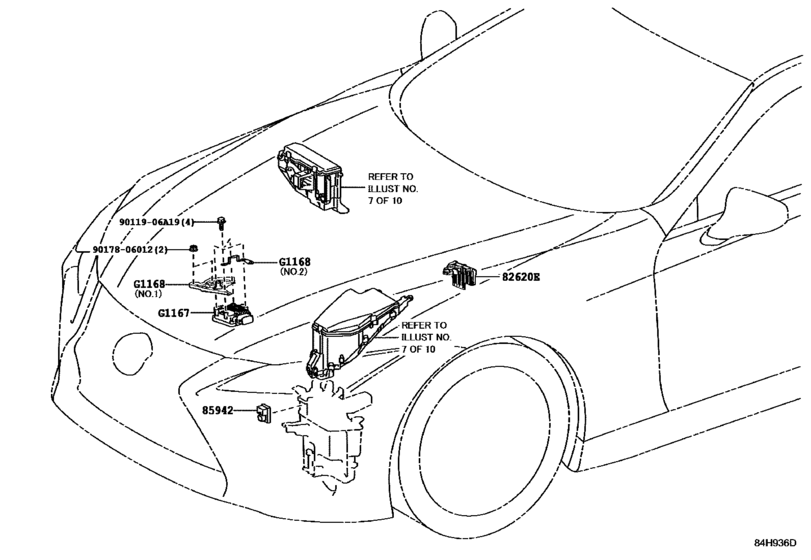

Switch & Relay & Computer ([03.2017 - ] ENGINE ROOM (1703- )GWZ100..ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82620E
|
82620E
82620-50210 Block Assy, Fusible Link[03.2017 -] GWZ100..ARL |
82620-50210 |
US $37.42 |
||
|
85942
|
85942
85942-53020 Relay, Headlamp Cleaner Control[03.2017 -] GWZ100,URZ100 |
85942-53020 |
from US $73.75 |
||
|
9011906A19
|
9011906A19
90119-06A19 New Genuine Part |
90119-06A19 |
US $0.73 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.67 |
||
|
G1167
|
G1167
G1167-11010 Controller, Oil Pump Motor[03.2017 -] GWZ100 |
G1167-11010 |
US $554.74 |
||
|
G1168
|
G1168
G1168-11010 Bracket, Oil Pump Motor Controller[03.2017 -] GWZ100 NO.1 |
G1168-11010 |
US $13.25 |
||
|
G1168
|
G1168
G1168-11051 Bracket, Oil Pump Motor Controller[03.2017 -] GWZ100 NO.2 |
G1168-11051 |
US $2.77 |
