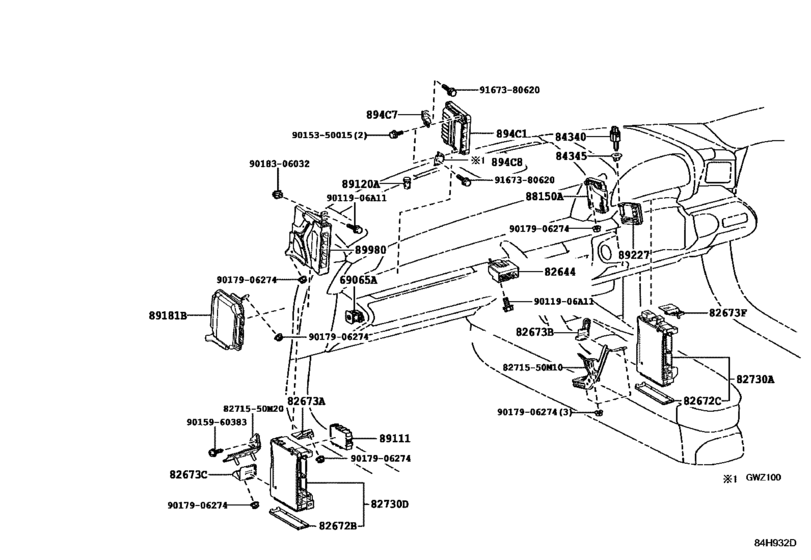

Switch & Relay & Computer ([03.2017 - ] COWL (1703- )ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
894C1
|
894C1
894C1-11010 Computer, Shift Control[03.2017 -] GWZ100 |
894C1-11010 |
US $343.62 |
||
|
894C7
|
894C7
894C7-11010 Bracket, Shift Control Computer, No.1[03.2017 -] GWZ100,URZ100..ARL |
894C7-11010 |
US $4.51 |
||
|
894C8
|
894C8
894C8-11010 Bracket, Shift Control Computer, No.2[03.2017 -] GWZ100..ARL; URZ100..ARL |
894C8-11010 |
US $3.79 |
||
|
82644
|
82644
82644-50040 Computer, Semiconductor Power Integration[03.2017 -] GWZ100..ARL |
82644-50040 |
US $10.92 |
||
|
82672B
|
82672B
82672-50380 Cover, Junction Block[03.2017 -] GWZ100,URZ100..ARL |
82672-50380 |
US $3.49 |
||
|
82672C
|
82672C
82672-50360 Cover, Junction Block[03.2017 -] GWZ100,URZ100..ARL |
82672-50360 |
US $3.49 |
||
|
82673A
|
82673A
82673-48130 Bracket, Junction Block[03.2017 -] GWZ100,URZ100..ARL; GWZ100,URZ100..LHD |
82673-48130 |
US $5.39 |
||
|
82673B
|
82673B
82673-50050 Bracket, Junction Block[03.2017 -] GWZ100,URZ100..ARL |
82673-50050 |
US $5.39 |
||
|
82673C
|
82673C
82673-50060 Bracket, Junction Block[03.2017 -] GWZ100,URZ100..ARL |
82673-50060 |
US $6.84 |
||
|
82673F
|
82673F
82673-50040 Bracket, Junction Block[03.2017 -] GWZ100,URZ100 |
82673-50040 |
US $5.97 |
||
|
82730A
|
82730A
82730-5A580 Block Assy, Driver Side Junction[03.2017 -] GWZ100,URZ100..ARL |
82730-5A580 |
US $176.18 |
||
|
82730D
|
82730D
82730-5A600 Block Assy, Passenger Side Junction[03.2017 -] GWZ100,URZ100..ARL |
82730-5A600 |
US $176.18 |
||
|
84340
|
84340
84340-19075 Switch Assy, Stop Lamp[03.2017 -] GWZ100,URZ100 |
84340-19075 |
US $40.19 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[03.2017 -] GWZ100,URZ100 |
84345-51010 |
from US $3.36 |
||
|
88150A
|
88150A
88150-11040
Computer Assy, Driving Support
[03.2017 -] GWZ100..ARL; GWZ100..ARL HONGKONG SPEC; GWZ100..ARL BRUNEI SPEC; GWZ100..ARL SINGAPORE SPEC; GWZ100..ARL MALAYSIA SPEC |
88150-11040 |
— | ||
|
89111
|
89111
89111-50101 Computer, Network Gateway[03.2017 -] GWZ100 |
89111-50101 |
US $174.72 |
||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[03.2017 -] GWZ100,URZ100 |
89121-30020 |
from US $48.09 |
||
|
89181B
|
89181B
89181-11010 Computer, Steering Control, Fr[03.2017 -] GWZ100..ARL SPORT PLUS |
89181-11010 |
US $579.49 |
||
|
89227
|
89227
89227-33030 Computer, Multiplex Tilt & Telescopic[03.2017 -] GWZ100,URZ100 |
89227-33030 |
US $235.87 |
||
|
89980
|
89980
89980-11050
Computer Assy, Hybrid Vehicle Control
[03.2017 -] GWZ100 |
89980-11050 |
— | ||
|
8271550M20
|
8271550M20
82715-50M20 Bracket,wiring Harness Clamp |
82715-50M20 |
US $7.72 |
||
|
9011906A11
|
9011906A11
90119-06A11 BOLT WWASHER |
90119-06A11 |
US $1.08 |
||
|
9015350015
|
9015350015
90153-50015 New Genuine Part |
90153-50015 |
US $1.08 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9018306032
|
9018306032
90183-06032 New Genuine Part |
90183-06032 |
US $1.25 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $1.08 |
