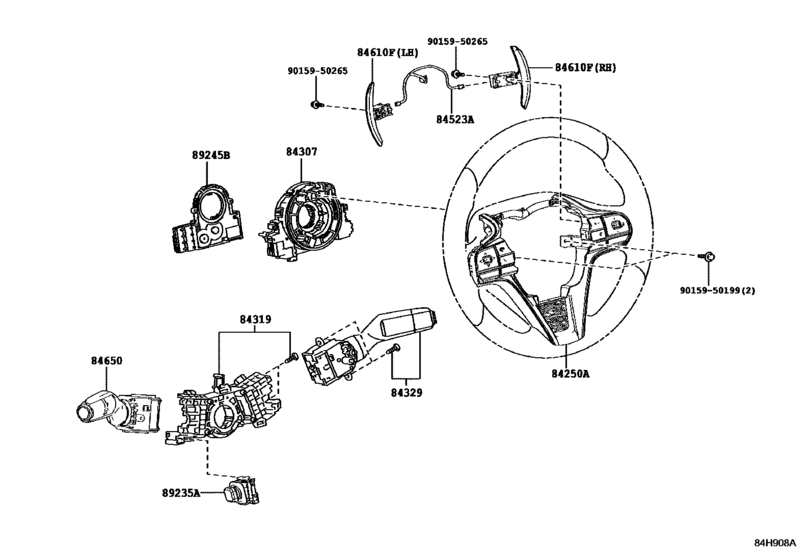

Switch & Relay & Computer ([03.2017 - ] STEERING (1703- )ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84250A
|
84250A
84250-11010 Switch Assy, Steering Pad[03.2017 -] GWZ100,URZ100 SPORT PLUS |
84250-11010 |
US $221.31 |
||
|
84250A
|
84250A
84250-11020 Switch Assy, Steering Pad[03.2017 -] GWZ100,URZ100 |
84250-11020 |
US $221.31 |
||
|
84250A
|
84250A
84250-11030
Switch Assy, Steering Pad
[03.2017 -] GWZ100,URZ100..ARL,GEN SPORT PLUS&PRE-COLLISION SYSTEM-WITHOUT |
84250-11030 |
— | ||
|
84250A
|
84250A
84250-11040
Switch Assy, Steering Pad
[03.2017 -] GWZ100,URZ100..ARL,GEN PRE-COLLISION SYSTEM-WITHOUT |
84250-11040 |
— | ||
|
84307
|
84307
84308-11010 Cable Sub-Assy, Spiral W/sensor[03.2017 -] GWZ100,URZ100 |
84308-11010 |
from US $171.06 |
||
|
84319
|
84319
84319-11020 Housing, Steering Wheel Switch[03.2017 -] GWZ100,URZ100..ARL |
84319-11020 |
US $26.35 |
||
|
84329
|
84329
84329-11050 Switch, Turn Signal[03.2017 -] GWZ100,URZ100..ARL |
84329-11050 |
US $80.08 |
||
|
84329
|
84329
84329-11070
Switch, Turn Signal
[03.2017 -] URZ100..ARL SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-W(GSP & HI-SPEED & LDA & SCB); GWZ100..ARL THAILAND SPEC&PRE-COLLISION SYSTEM-W(GSP & HI-SPEED & LDA & SCB) |
84329-11070 |
— | ||
|
84329
|
84329
84329-11100
Switch, Turn Signal
[03.2017 -] GWZ100,URZ100..ARL BRUNEI SPEC&PRE-COLLISION SYSTEM-WITHOUT |
84329-11100 |
— | ||
|
84329
|
84329
84329-11110
Switch, Turn Signal
[03.2017 -] GWZ100..ARL HONGKONG SPEC&PRE-COLLISION SYSTEM-WITHOUT; URZ100..ARL INDONESIA SPEC&PRE-COLLISION SYSTEM-WITHOUT; GWZ100,URZ100..ARL SINGAPORE SPEC&PRE-COLLISION SYSTEM-WITHOUT; GWZ100,URZ100..ARL MALAYSIA SPEC&PRE-COLLISION SYSTEM-WITHOUT |
84329-11110 |
— | ||
|
84523A
|
84523A
84523-11010 Wire, Switch No.2[03.2017 -] GWZ100,URZ100 |
84523-11010 |
from US $7.35 |
||
|
84610F
|
84610F
84610-11010 Switch Assy, Transmission Shift[03.2017 -] GWZ100,URZ100 LH |
84610-11010 |
US $109.88 |
||
|
84610F
|
84610F
84610-11020 Switch Assy, Transmission Shift[03.2017 -] GWZ100,URZ100 RH |
84610-11020 |
US $109.88 |
||
|
84650
|
84650
84652-11030 Switch Assy, Windshield Wiper[03.2017 -] GWZ100,URZ100..ARL |
84652-11030 |
US $56.20 |
||
|
89235A
|
89235A
89235-33010 Switch, Tilt & Telescopic[03.2017 -] GWZ100,URZ100 |
89235-33010 |
from US $38.98 |
||
|
89245B
|
89245B
8924B-11010 Sensor, Steering[03.2017 -] GWZ100,URZ100 SPORT PLUS |
8924B-11010 |
US $196.56 |
||
|
89245B
|
89245B
8924B-33040 Sensor, Steering[03.2017 -] GWZ100,URZ100 |
8924B-33040 |
US $196.56 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.25 |
