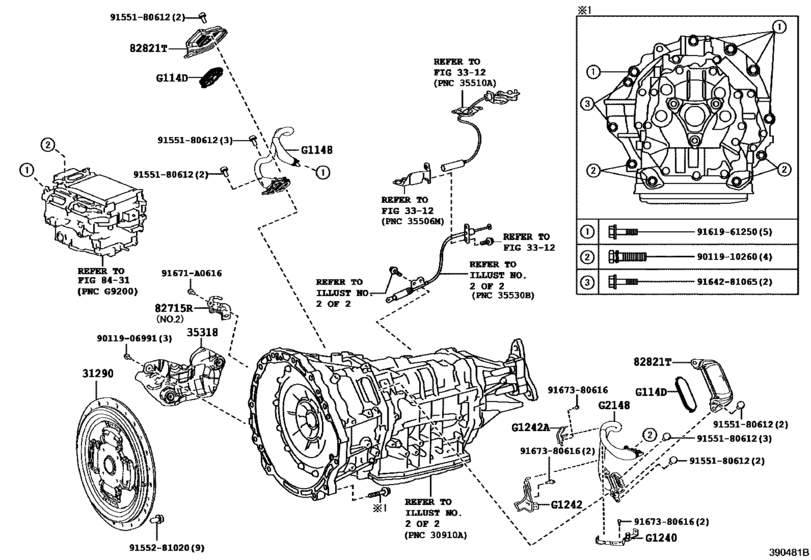

Transaxle Assy, Hv Or Fcv ([03.2017 - ] (1703- )GWZ100..ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31290
|
31290
31290-30010 Cover Assy, Transmission Input Damper[03.2017 -] GWZ100 |
31290-30010 |
US $433.31 |
||
|
35318
|
35318
35318-11010 Insulator, Transmission Oil Pump[03.2017 -] GWZ100 |
35318-11010 |
US $25.92 |
||
|
82715R
|
82715R
82715-11010 Bracket, Wiring Harness Clamp, No.1[03.2017 -] GWZ100 NO.1 |
82715-11010 |
US $8.15 |
||
|
82715R
|
82715R
82715-11020 Bracket, Wiring Harness Clamp, No.1[03.2017 -] GWZ100 NO.2 |
82715-11020 |
US $5.53 |
||
|
82821T
|
82821T
82821-11010 Cover, Connector[03.2017 -] GWZ100 |
82821-11010 |
US $18.78 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.63 |
||
|
9011906991
|
9011906991
90119-06991 New Genuine Part |
90119-06991 |
US $1.08 |
||
|
9011910260
|
9011910260
90119-10260 Bolt (For Transmission Housing & Engine Setting) |
90119-10260 |
from US $2.05 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.63 |
||
|
9155281020
|
9155281020
91552-81020 Bolt(For Alternator) |
91552-81020 |
US $1.79 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9164281065
|
9164281065
91642-81065 Bolt(For Alternator) |
91642-81065 |
from US $1.25 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.63 |
||
|
G114D
|
G114D
G114D-30010 Cap, Motor Cable Terminal[03.2017 -] GWZ100 |
G114D-30010 |
US $6.63 |
||
|
G1148
|
G1148
G1148-11010 Cable, Motor[03.2017 -] GWZ100..ARL |
G1148-11010 |
US $375.65 |
||
|
G1240
|
G1240
G1240-11010 Bracket Assy, Inverter Motor Cable[03.2017 -] GWZ100..ARL |
G1240-11010 |
US $7.57 |
||
|
G1242
|
G1242
G1242-11010 Bracket, Engine Motor Cable Clamp[03.2017 -] GWZ100..ARL |
G1242-11010 |
US $8.30 |
||
|
G1242A
|
G1242A
G1242-11020 Bracket, Engine Motor Cable Clamp[03.2017 -] GWZ100..ARL |
G1242-11020 |
US $5.39 |
||
|
G2148
|
G2148
G2148-11010 Cable, Generator[03.2017 -] GWZ100..ARL |
G2148-11010 |
US $375.65 |
