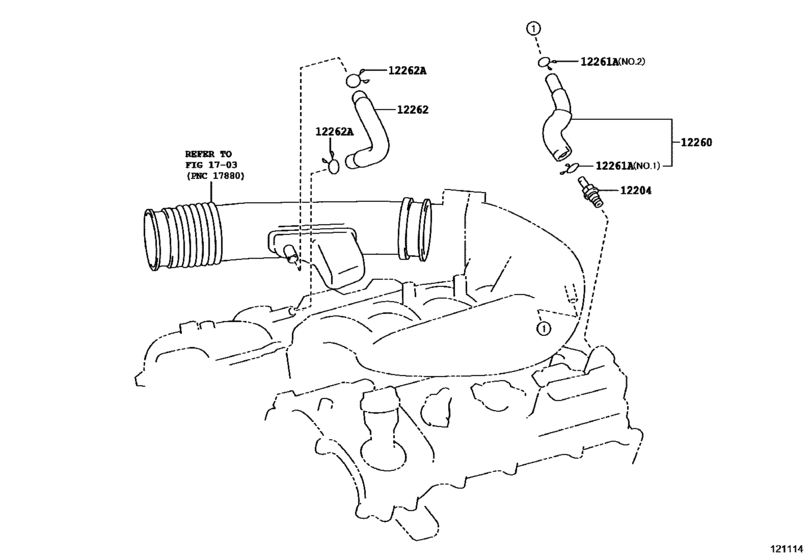

Ventilation Hose ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-31150 Valve Sub-Assy, Ventilation[03.2017 -] 8GRFXS..GWZ100 |
12204-31150 |
from US $13.53 |
||
|
12260
|
12260
12260-31090
Hose Assy, Ventilation
[03.2017 -] 8GRFXS..GWZ100 |
12260-31090 |
— | ||
| replacement | |||||
|
12260
|
12260
12260-31091 Hose Assy, Ventilation[03.2017 -] 8GRFXS..GWZ100 |
12260-31091 |
US $13.12 |
||
|
12261A
|
12261A
90467-14017 Clip Or Clamp(For Ventilation Hose)[03.2017 -] 8GRFXS..GWZ100 NO.1; 2URGSE..URZ100 NO.1:REFER ILLUST. |
90467-14017 |
from US $1.01 |
||
|
12261A
|
12261A
90467-15120 Clip Or Clamp(For Ventilation Hose)[03.2017 -] 8GRFXS..GWZ100 NO.2 |
90467-15120 |
from US $0.93 |
||
|
12262
|
12262
12262-31200 Hose, Ventilation, No.2[03.2017 -] 8GRFXS..GWZ100 |
12262-31200 |
US $10.34 |
||
|
12262A
|
12262A
90467-21004 Clip Or Clamp(For Ventilation Hose)[03.2017 -] 8GRFXS..GWZ100 |
90467-21004 |
from US $1.24 |
||
