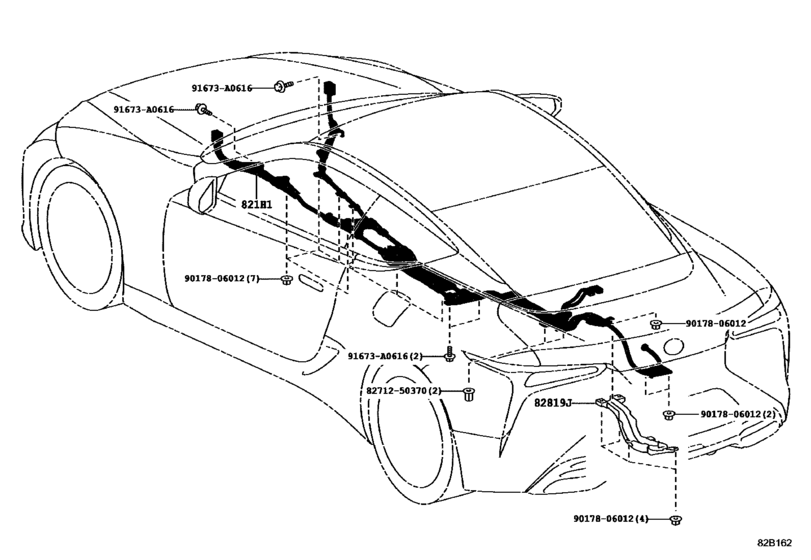

Wiring & Clamp ([03.2017 - ] HI-VOLTAGE CABLE (1703- )GWZ100..ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
821H1
|
821H1
821H1-11020 Wire, Hv Floor Under[03.2017 -] GWZ100..ARL |
821H1-11020 |
US $958.05 |
||
|
82819J
|
82819J
82817-11180 Protector, Wiring Harness, No.25[03.2017 -] GWZ100,URZ100 |
82817-11180 |
US $46.01 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
from US $0.63 |
||
|
8271250370
|
8271250370
82712-50370
Support, Wiring Harness
|
82712-50370 |
— | ||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.67 |
