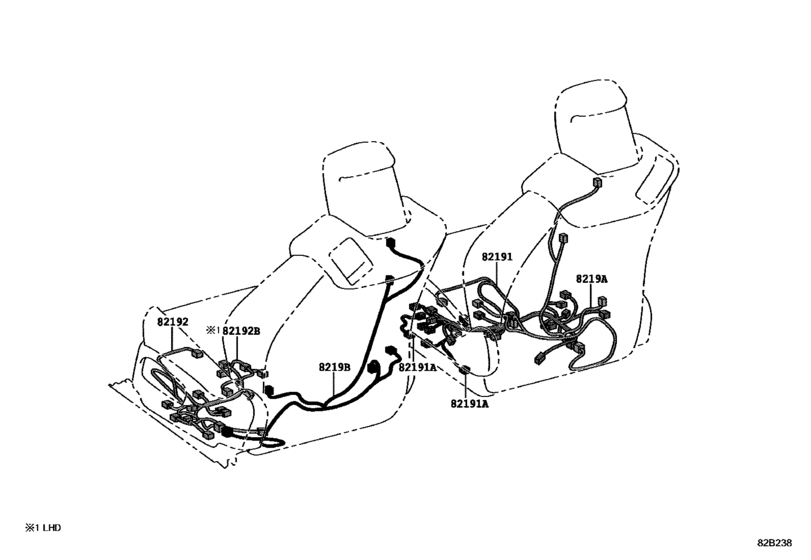

Wiring & Clamp ([03.2017 - ] SEAT (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- ARL
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8219A
|
8219A
8219A-11010 Wire, Front Seat, Rh No.2[03.2017 -] GWZ100,URZ100 |
8219A-11010 |
US $62.46 |
||
|
8219A
|
8219A
8219A-11020 Wire, Front Seat, Rh No.2[03.2017 -] GWZ100,URZ100..GCC SPORT PACKAGE; GWZ100,URZ100..ARL,GEN SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100..GCC SPORT PLUS&ROOF HEADLINING-ALCANTARA; GWZ100,URZ100..ARL,GEN SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & |
8219A-11020 |
US $43.24 |
||
|
8219B
|
8219B
8219B-11010 Wire, Front Seat, Lh No.2[03.2017 -] GWZ100,URZ100 |
8219B-11010 |
US $62.46 |
||
|
8219B
|
8219B
8219B-11020 Wire, Front Seat, Lh No.2[03.2017 -] GWZ100,URZ100..GCC SPORT PACKAGE; GWZ100,URZ100..ARL,GEN SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100..GCC SPORT PLUS&ROOF HEADLINING-ALCANTARA; GWZ100,URZ100..ARL,GEN SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & |
8219B-11020 |
US $43.24 |
||
|
82191
|
82191
82191-11060 Wire, Front Seat, Rh[03.2017 -] GWZ100,URZ100..ARL |
82191-11060 |
US $135.41 |
||
|
82191
|
82191
82191-11070 Wire, Front Seat, Rh[03.2017 -] GWZ100,URZ100..ARL SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100..ARL SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE) |
82191-11070 |
US $120.85 |
||
|
82191A
|
82191A
82191-11090 Wire, Front Seat, Rh[03.2017 -] GWZ100,URZ100..ARL |
82191-11090 |
US $4.80 |
||
|
82192
|
82192
82192-11030 Wire, Front Seat, Lh[03.2017 -] GWZ100,URZ100..ARL |
82192-11030 |
US $120.85 |
||
|
82192
|
82192
82192-11060 Wire, Front Seat, Lh[03.2017 -] GWZ100,URZ100..ARL SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100..ARL SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE) |
82192-11060 |
US $120.85 |
