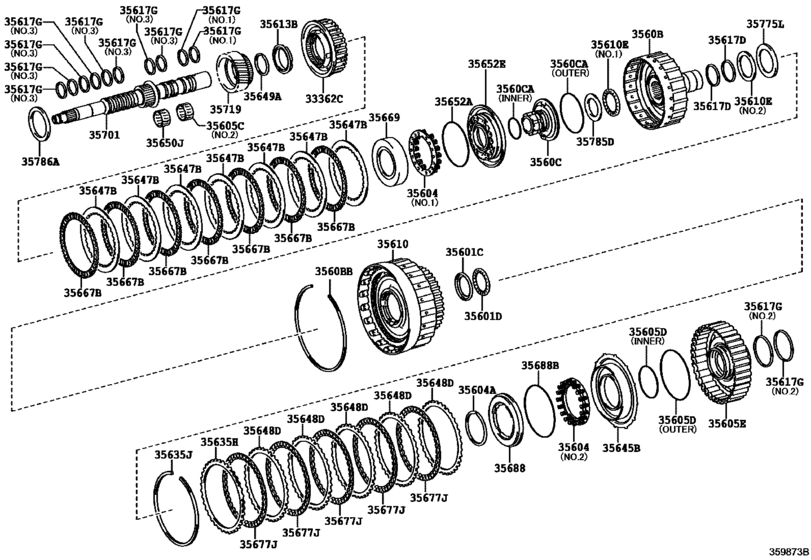

Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] AGA0E (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3560B
|
3560B
3560B-11010
Drum Sub-Assy, C-2
[03.2017 -] URZ100 |
3560B-11010 |
— | ||
|
3560BB
|
3560BB
90521-99201 Ring, Hole Snap(For C-2 Drum)[03.2017 -] URZ100 |
90521-99201 |
US $3.20 |
||
|
3560C
|
3560C
3560C-11010 Sleeve Sub-Assy, C-2 Clutch Reaction[03.2017 -] URZ100 |
3560C-11010 |
US $37.27 |
||
|
3560CA
|
3560CA
90302-39001 Ring, D(For C-2 Clutch Reaction Sleeve)[03.2017 -] URZ100 内側 |
90302-39001 |
US $2.18 |
||
|
3560CA
|
3560CA
90302-79001 Ring, D(For C-2 Clutch Reaction Sleeve)[03.2017 -] URZ100 外側 |
90302-79001 |
US $2.18 |
||
|
33362C
|
33362C
33362-11010
Hub, Transmission Clutch, No.2
[03.2017 -] URZ100 |
33362-11010 |
— | ||
|
35601C
|
35601C
35776-11010 Race, Thrust Bearing (For Front Clutch Drum)[03.2017 -] URZ100 |
35776-11010 |
US $9.32 |
||
|
35601D
|
35601D
90374-43010 Bearing, Thrust Needle Roller (For Front Clutch Drum)[03.2017 -] URZ100 |
90374-43010 |
US $15 |
||
|
35604
|
35604
35604-11020 Spring Sub-Assy, Direct Clutch Return[03.2017 -] URZ100 ＮＯ．１ |
35604-11020 |
US $9.32 |
||
|
35604
|
35604
35604-11030 Spring Sub-Assy, Direct Clutch Return[03.2017 -] URZ100 ＮＯ．２ |
35604-11030 |
US $8.88 |
||
|
35604
|
35604
35604-11040 Spring Sub-Assy, Direct Clutch Return[03.2017 -] URZ100 ＮＯ．３ |
35604-11040 |
US $8.15 |
||
|
35604A
|
35604A
90520-63003 Ring, Shaft Snap (For Direct Clutch Piston)[03.2017 -] URZ100 |
90520-63003 |
US $1.16 |
||
|
35605C
|
35605C
90364-30015 Bearing, Needle Roller[03.2017 -] URZ100 ＮＯ．２ |
90364-30015 |
US $11.93 |
||
|
35605C
|
35605C
90364-49001 Bearing, Needle Roller[03.2017 -] URZ100 ＮＯ．１ |
90364-49001 |
US $25.04 |
||
|
35605D
|
35605D
90301-63007 Ring, O(For Direct Clutch Drum)[03.2017 -] URZ100 内側 |
90301-63007 |
US $2.18 |
||
|
35605D
|
35605D
90301-99223 Ring, O (For Output Shaft)[03.2017 -] URZ100 外側 |
90301-99223 |
US $2.62 |
||
|
35605E
|
35605E
35605-11020 Drum Sub-Assy, C-3[03.2017 -] URZ100 |
35605-11020 |
US $26.35 |
||
|
35610
|
35610
35610-11020
Clutch Assy, Front Multiple Disc
[03.2017 -] URZ100 |
35610-11020 |
— | ||
|
35610E
|
35610E
90374-43010 Bearing, Thrust Needle Roller (For Front Clutch Drum)[03.2017 -] URZ100 ＮＯ．１ |
90374-43010 |
US $15 |
||
|
35610E
|
35610E
90374-47006 Bearing, Thrust Needle Roller (For Front Clutch Disc)[03.2017 -] URZ100 ＮＯ．２ |
90374-47006 |
US $16.89 |
||
|
35613B
|
35613B
90209-46002 Washer, Clutch Hub Thrust, No.2[03.2017 -] URZ100 |
90209-46002 |
US $4.80 |
||
|
35617D
|
35617D
35617-11050 Ring, Clutch Drum Oil Seal[03.2017 -] URZ100 |
35617-11050 |
US $2.62 |
||
|
35617G
|
35617G
35617-11020 Ring, Clutch Drum Oil Seal[03.2017 -] URZ100 ＮＯ．２ |
35617-11020 |
US $3.49 |
||
|
35617G
|
35617G
35617-11040 Ring, Clutch Drum Oil Seal[03.2017 -] URZ100 ＮＯ．１ |
35617-11040 |
US $2.48 |
||
|
35617G
|
35617G
35617-11060 Ring, Clutch Drum Oil Seal[03.2017 -] URZ100 ＮＯ．５ |
35617-11060 |
US $2.62 |
||
|
35617G
|
35617G
35617-60030 Ring, Clutch Drum Oil Seal[03.2017 -] URZ100 ＮＯ．４ |
35617-60030 |
from US $1.54 |
||
|
35635H
|
35635H
35635-11380 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．１ |
35635-11380 |
US $29.70 |
||
|
35635H
|
35635H
35635-11390 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．２ |
35635-11390 |
US $29.70 |
||
|
35635H
|
35635H
35635-11400 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．３ |
35635-11400 |
US $29.70 |
||
|
35635H
|
35635H
35635-11410 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．４ |
35635-11410 |
US $29.70 |
||
|
35635H
|
35635H
35635-11420 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．５ |
35635-11420 |
US $29.70 |
||
|
35635H
|
35635H
35635-11430 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．６ |
35635-11430 |
US $29.70 |
||
|
35635H
|
35635H
35635-11440 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．７ |
35635-11440 |
US $29.70 |
||
|
35635H
|
35635H
35635-11450 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．８ |
35635-11450 |
US $29.70 |
||
|
35635H
|
35635H
35635-11460 Flange, Clutch[03.2017 -] URZ100 厚さ＝３．９ |
35635-11460 |
US $29.70 |
||
|
35635J
|
35635J
90521-99205 Ring, Hole Snap(For C-3 Clutch Flange)[03.2017 -] URZ100 |
90521-99205 |
US $3.20 |
||
|
35645B
|
35645B
35645-11010 Piston, C-3 Clutch[03.2017 -] URZ100 |
35645-11010 |
US $40.48 |
||
|
35647B
|
35647B
35647-11020 Plate, Clutch, No.2[03.2017 -] URZ100 |
35647-11020 |
US $18.78 |
||
|
35648D
|
35648D
35648-11010 Plate, Clutch, No.3[03.2017 -] URZ100 |
35648-11010 |
US $15.14 |
||
|
35649A
|
35649A
90520-43010 Ring, Hole Snap(For Reverse Clutch Flange)[03.2017 -] URZ100 |
90520-43010 |
US $1.16 |
||
|
35650J
|
35650J
90364-30015 Bearing, Needle Roller[03.2017 -] URZ100 |
90364-30015 |
US $11.93 |
||
|
35652A
|
35652A
90302-89001 Ring (For Rear Clutch Outer)[03.2017 -] URZ100 |
90302-89001 |
US $2.62 |
||
|
35652E
|
35652E
35652-11020 Piston, C-2 Clutch[03.2017 -] URZ100 |
35652-11020 |
US $38.73 |
||
|
35667B
|
35667B
35667-11020
Disk, Clutch, No.2
[03.2017 -] URZ100 |
35667-11020 |
— | ||
|
35669
|
35669
35669-11020
Balancer, Clutch, No.2
[03.2017 -] URZ100 |
35669-11020 |
— | ||
|
35677J
|
35677J
35677-11010 Disc, Clutch, No.3[03.2017 -] URZ100 |
35677-11010 |
US $27.96 |
||
|
35688
|
35688
35699-11010 Balancer, Clutch, No.3[03.2017 -] URZ100 |
35699-11010 |
US $20.53 |
||
|
35688B
|
35688B
90301-99222 Ring, O (For Clutch Balancer No.3)[03.2017 -] URZ100 |
90301-99222 |
US $2.62 |
||
|
35701
|
35701
35701-11020
Shaft Sub-Assy, Input
[03.2017 -] URZ100 |
35701-11020 |
— | ||
|
35719
|
35719
35719-11020 Gear, Planetary Sun[03.2017 -] URZ100 |
35719-11020 |
US $123.76 |
||
|
35775L
|
35775L
35775-11010 Race, Thrust Bearing, No.5[03.2017 -] URZ100 |
35775-11010 |
US $23.44 |
||
|
35785D
|
35785D
35785-11020 Race, Thrust Bearing, No.4[03.2017 -] URZ100 |
35785-11020 |
US $8.44 |
||
|
35786A
|
35786A
35786-11010 Race, Thrust Bearing, No.1[03.2017 -] URZ100 |
35786-11010 |
US $27.81 |
