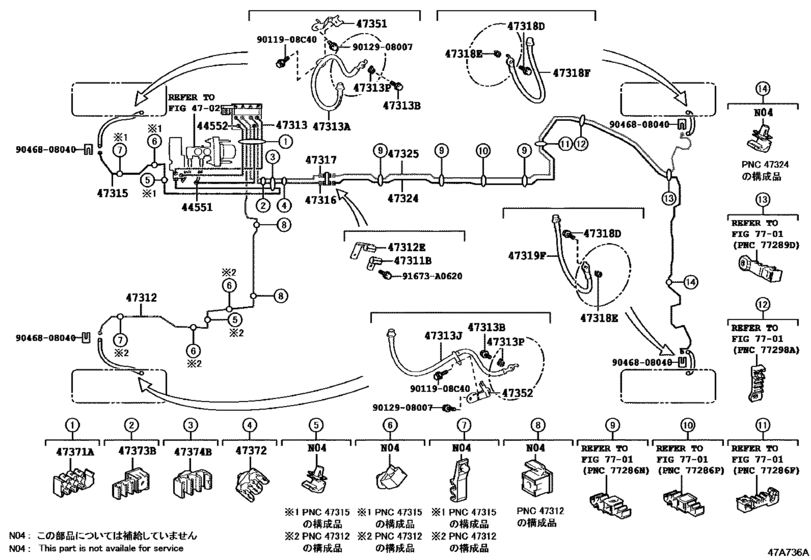

Brake Tube & Clamp ([01.2017 - ] ﾌﾞﾚｰｷﾁｭｰﾌﾞ (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44551
|
44551
44551-11010 Tube, Brake Actuator, No.1[01.2017 -] GWZ100,URZ100 |
44551-11010 |
US $5.97 |
||
|
44552
|
44552
44552-11010 Tube, Brake Actuator, No.2[01.2017 -] GWZ100,URZ100 |
44552-11010 |
US $5.97 |
||
|
47311B
|
47311B
90412-10292 Way, No.1(For Front Brake Tube)[01.2017 -] GWZ100,URZ100 |
90412-10292 |
US $6.29 |
||
|
47312
|
47312
47312-11060 Tube, Front Brake, No.2[03.2017 -] URZ100 |
47312-11060 |
US $27.52 |
||
|
47312E
|
47312E
90412-10297 Way, No.1(For Front Brake Tube)[01.2017 -] GWZ100,URZ100 |
90412-10297 |
US $7.86 |
||
|
47313
|
47313
47313-11060 Tube, Front Brake, No.3[01.2017 -] GWZ100,URZ100 |
47313-11060 |
US $6.12 |
||
|
47313A
|
47313A
90947-02H62 Hose, Flexible, No.1(For Front)[01.2017 -] GWZ100,URZ100 |
90947-02H62 |
US $30.24 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[01.2017 -] GWZ100,URZ100 |
90401-10058 |
from US $3.94 |
||
|
47313J
|
47313J
90947-02H67 Hose, Flexible, No.2(For Front)[01.2017 -] GWZ100,URZ100 |
90947-02H67 |
US $23.33 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[01.2017 -] GWZ100,URZ100 |
47389-50020 |
from US $4.83 |
||
|
47315
|
47315
47315-11080 Tube, Front Brake, No.5[03.2017 -] URZ100 |
47315-11080 |
US $16.89 |
||
|
47316
|
47316
47322-11110 Tube, Front Brake, No.6[03.2017 -] URZ100 |
47322-11110 |
US $13.69 |
||
|
47317
|
47317
47323-11050 Tube, Front Brake, No.7[03.2017 -] URZ100 |
47323-11050 |
US $13.69 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[01.2017 -] GWZ100,URZ100 |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[01.2017 -] GWZ100,URZ100 |
47389-50020 |
from US $4.83 |
||
|
47318F
|
47318F
90947-02H68 Hose, Flexible(For Rear Rh)[01.2017 -] GWZ100,URZ100 |
90947-02H68 |
US $19.22 |
||
|
47319F
|
47319F
90947-02H68 Hose, Flexible(For Rear Rh)[01.2017 -] GWZ100,URZ100 |
90947-02H68 |
US $19.22 |
||
|
47324
|
47324
47324-11020 Tube, Rear Brake, No.4[01.2017 -] GWZ100,URZ100 |
47324-11020 |
US $37.42 |
||
|
47325
|
47325
47325-11010 Tube, Rear Brake, No.5[01.2017 -] GWZ100,URZ100 |
47325-11010 |
US $29.12 |
||
|
47351
|
47351
47351-11040 Bracket, Flexible Hose(For Front Rh)[01.2017 -] GWZ100,URZ100 |
47351-11040 |
US $3.93 |
||
|
47352
|
47352
47352-11020 Bracket, Flexible Hose(For Front Lh)[01.2017 -] GWZ100,URZ100 |
47352-11020 |
US $3.93 |
||
|
47371A
|
47371A
47371-11010 Clamp, Brake Tube, No.1[01.2017 -] GWZ100,URZ100 |
47371-11010 |
US $2.48 |
||
|
47372
|
47372
90469-07020 Clamp, Brake Tube, No.6[01.2017 -] GWZ100,URZ100 |
90469-07020 |
US $3.58 |
||
|
47373B
|
47373B
90949-01D21 Clamp, Brake Tube, No.3BRAKE TUBE, NO.6 [01.2017 -] GWZ100,URZ100 |
90949-01D21 |
US $2.62 |
||
|
47374B
|
47374B
90949-01D41
Clamp, Brake Tube, No.7
[01.2017 -] GWZ100,URZ100 |
90949-01D41 |
— | ||
|
91673A0620
|
91673A0620
91673-A0620 BOLT FLANGE |
91673-A0620 |
from US $0.65 |
||
|
9011908C40
|
9011908C40
90119-08C40 New Genuine Part |
90119-08C40 |
US $1.43 |
||
|
9012908007
|
9012908007
90129-08007 New Genuine Part |
90129-08007 |
US $1.61 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.37 |
