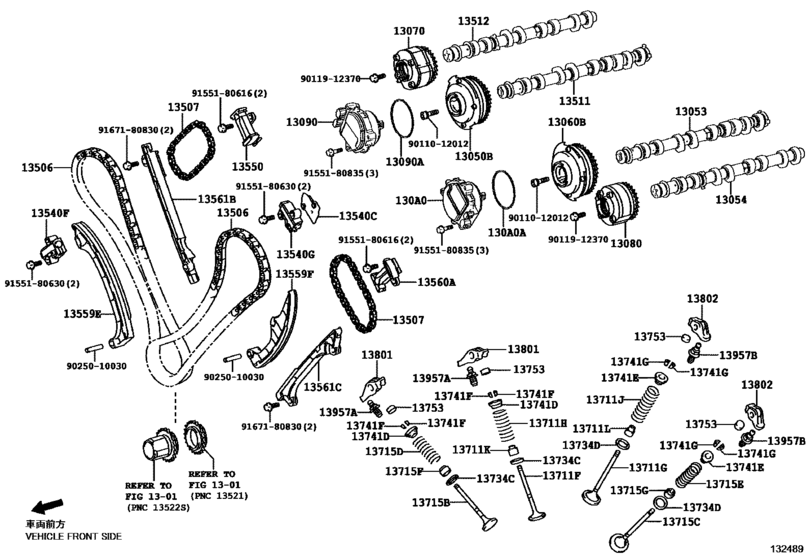

Camshaft & Valve ([03.2017 - ] (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130A0
|
130A0
130A0-38020 Motor Assy, Cam Timing Control W/edu, LhCAM TIMING CONTROL W/EDU, LH [03.2017 -] 2URGSE..URZ100 |
130A0-38020 |
from US $617.86 |
||
|
130A0A
|
130A0A
90301-92004 Ring, O(For Cam Timing Control Motor Rh)[03.2017 -] 2URGSE..URZ100 |
90301-92004 |
from US $3.14 |
||
|
13050B
|
13050B
13050-38060 Gear Assy, Camshaft Timing Intake, Rh[03.2017 -] 2URGSE..URZ100 |
13050-38060 |
US $570.68 |
||
|
13053
|
13053
13053-38070 Camshaft Sub-Assy, No.3[03.2017 -] 2URGSE..URZ100 |
13053-38070 |
US $503.78 |
||
|
13054
|
13054
13054-38070 Camshaft Sub-Assy, No.4[03.2017 -] 2URGSE..URZ100 |
13054-38070 |
US $503.78 |
||
|
13060B
|
13060B
13060-38020 Gear Assy, Camshaft Timing Intake, Lh[03.2017 -] 2URGSE..URZ100 |
13060-38020 |
US $506.69 |
||
|
13070
|
13070
13080-31050 Gear Assy, Camshaft Timing Exhaust, Rh[03.2017 -] 2URGSE..URZ100 |
13080-31050 |
from US $187.21 |
||
|
13080
|
13080
13080-31050 Gear Assy, Camshaft Timing Exhaust, Rh[03.2017 -] 2URGSE..URZ100 |
13080-31050 |
from US $187.21 |
||
|
13090
|
13090
13090-38020 Motor Assy, Cam Timing Control W/edu, RhCAM TIMING CONTROL W/EDU, RH [03.2017 -] 2URGSE..URZ100 |
13090-38020 |
from US $524.78 |
||
|
13090A
|
13090A
90301-92004 Ring, O(For Cam Timing Control Motor Rh)[03.2017 -] 2URGSE..URZ100 |
90301-92004 |
from US $3.14 |
||
|
13506
|
13506
13506-38030 Chain Sub-Assy[03.2017 -] 2URGSE..URZ100 |
13506-38030 |
from US $81.87 |
||
|
13507
|
13507
13507-31020 Chain Sub-Assy, No.2[03.2017 -] 2URGSE..URZ100 |
13507-31020 |
from US $33.80 |
||
|
13511
|
13511
13501-38070 Camshaft[03.2017 -] 2URGSE..URZ100 |
13501-38070 |
US $503.78 |
||
|
13512
|
13512
13502-38070 Camshaft, No.2[03.2017 -] 2URGSE..URZ100 |
13502-38070 |
US $503.78 |
||
|
13540C
|
13540C
13552-38010 Gasket(For Chain Tensioner)[03.2017 -] 2URGSE..URZ100 |
13552-38010 |
from US $5.19 |
||
|
13540F
|
13540F
13540-38020 Tensioner Assy, Chain, No.1[03.2017 -] 2URGSE..URZ100 |
13540-38020 |
from US $48.53 |
||
|
13540G
|
13540G
13540-38042 Tensioner Assy, Chain, No.1[03.2017 -] 2URGSE..URZ100 |
13540-38042 |
from US $58.20 |
||
|
13550
|
13550
13550-38020 Tensioner Assy, Chain, No.2[03.2017 -] 2URGSE..URZ100 |
13550-38020 |
from US $58.84 |
||
|
13559E
|
13559E
13559-38030 Slipper, Chain Tensioner[03.2017 -] 2URGSE..URZ100 |
13559-38030 |
from US $22.36 |
||
|
13559F
|
13559F
13559-38040 Slipper, Chain Tensioner[03.2017 -] 2URGSE..URZ100 |
13559-38040 |
from US $22.19 |
||
|
13560A
|
13560A
13560-38021 Tensioner Assy, Chain, No.3[03.2017 -] 2URGSE..URZ100 |
13560-38021 |
from US $58.03 |
||
|
13561B
|
13561B
13561-38060 Damper, Chain Vibration, No.1[03.2017 -] 2URGSE..URZ100 |
13561-38060 |
from US $35.11 |
||
|
13561C
|
13561C
13561-38070 Damper, Chain Vibration, No.1[03.2017 -] 2URGSE..URZ100 |
13561-38070 |
from US $28.56 |
||
|
13711F
|
13711F
13711-38050 Valve, Intake[03.2017 -] 2URGSE..URZ100 |
13711-38050 |
from US $18.89 |
||
|
13711G
|
13711G
13711-38050 Valve, Intake[03.2017 -] 2URGSE..URZ100 |
13711-38050 |
from US $18.89 |
||
|
13711H
|
13711H
90501-40044 Spring, Intake Valve Compression(For Rh Cylinder Head)[03.2017 -] 2URGSE..URZ100 |
90501-40044 |
US $4.30 |
||
|
13711J
|
13711J
90501-40044 Spring, Intake Valve Compression(For Rh Cylinder Head)[03.2017 -] 2URGSE..URZ100 |
90501-40044 |
US $4.30 |
||
|
13711K
|
13711K
90913-02101 Seal Or Ring, O(For Valve Stem Oil)Intake side [03.2017 -] 2URGSE..URZ100 |
90913-02101 |
from US $4.84 |
||
|
13711L
|
13711L
90913-02101 Seal Or Ring, O(For Valve Stem Oil)Intake side [03.2017 -] 2URGSE..URZ100 |
90913-02101 |
from US $4.84 |
||
|
13715B
|
13715B
13715-38090 Valve, Exhaust(For Rh Cylinder Head)[03.2017 -] 2URGSE..URZ100 |
13715-38090 |
from US $31.71 |
||
|
13715C
|
13715C
13715-38090 Valve, Exhaust(For Rh Cylinder Head)[03.2017 -] 2URGSE..URZ100 |
13715-38090 |
from US $31.71 |
||
|
13715D
|
13715D
90501-35049 Spring, Compression(For Rh Exhaust Valve)[03.2017 -] 2URGSE..URZ100 |
90501-35049 |
US $3.20 |
||
|
13715E
|
13715E
90501-35049 Spring, Compression(For Rh Exhaust Valve)[03.2017 -] 2URGSE..URZ100 |
90501-35049 |
US $3.20 |
||
|
13715F
|
13715F
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[03.2017 -] 2URGSE..URZ100 |
90913-02112 |
from US $4.84 |
||
|
13715G
|
13715G
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[03.2017 -] 2URGSE..URZ100 |
90913-02112 |
from US $4.84 |
||
|
13734C
|
13734C
13734-62020 Washer, Plate(For Valve Spring Seat)[03.2017 -] 2URGSE..URZ100 |
13734-62020 |
from US $0.55 |
||
|
13734D
|
13734D
13734-62020 Washer, Plate(For Valve Spring Seat)[03.2017 -] 2URGSE..URZ100 |
13734-62020 |
from US $0.55 |
||
|
13741D
|
13741D
13741-38020 Retainer, Valve Spring(For Rh Cylinder Head)[03.2017 -] 2URGSE..URZ100 |
13741-38020 |
from US $2.45 |
||
|
13741E
|
13741E
13741-38020 Retainer, Valve Spring(For Rh Cylinder Head)[03.2017 -] 2URGSE..URZ100 |
13741-38020 |
from US $2.45 |
||
|
13741F
|
13741F
90913-03028 Lock, Valve Spring Retainer[03.2017 -] 2URGSE..URZ100 |
90913-03028 |
from US $0.95 |
||
|
13741G
|
13741G
90913-03028 Lock, Valve Spring Retainer[03.2017 -] 2URGSE..URZ100 |
90913-03028 |
from US $0.95 |
||
|
13753
|
13753
13753-22450 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．０００ |
13753-22450 |
US $5.91 |
||
|
13753
|
13753
13753-22460 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．０２０ |
13753-22460 |
US $4.72 |
||
|
13753
|
13753
13753-22470 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．０４０ |
13753-22470 |
US $4.72 |
||
|
13753
|
13753
13753-22480 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．０６０ |
13753-22480 |
US $4.72 |
||
|
13753
|
13753
13753-22490 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．０８０ |
13753-22490 |
US $4.13 |
||
|
13753
|
13753
13753-22500 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．１００ |
13753-22500 |
US $4.13 |
||
|
13753
|
13753
13753-22510 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．１２０ |
13753-22510 |
US $4.13 |
||
|
13753
|
13753
13753-22520 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．１４０ |
13753-22520 |
US $4.72 |
||
|
13753
|
13753
13753-22530 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．１６０ |
13753-22530 |
US $4.72 |
||
|
13753
|
13753
13753-22540 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．１８０ |
13753-22540 |
US $4.72 |
||
|
13753
|
13753
13753-22550 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．２００ |
13753-22550 |
US $4.72 |
||
|
13753
|
13753
13753-22560 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．２２０ |
13753-22560 |
US $4.72 |
||
|
13753
|
13753
13753-22570 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．２４０ |
13753-22570 |
US $4.72 |
||
|
13753
|
13753
13753-22580 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．２６０ |
13753-22580 |
US $4.72 |
||
|
13753
|
13753
13753-22590 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．２８０ |
13753-22590 |
US $4.72 |
||
|
13753
|
13753
13753-22600 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．３００ |
13753-22600 |
US $5.91 |
||
|
13753
|
13753
13753-22610 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．３２０ |
13753-22610 |
US $4.72 |
||
|
13753
|
13753
13753-22620 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．３４０ |
13753-22620 |
US $4.72 |
||
|
13753
|
13753
13753-22630 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．３６０ |
13753-22630 |
US $5.91 |
||
|
13753
|
13753
13753-22640 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．３８０ |
13753-22640 |
US $5.91 |
||
|
13753
|
13753
13753-22650 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．４００ |
13753-22650 |
US $5.91 |
||
|
13753
|
13753
13753-22660 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．４２０ |
13753-22660 |
US $5.91 |
||
|
13753
|
13753
13753-22670 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．４４０ |
13753-22670 |
US $4.72 |
||
|
13753
|
13753
13753-22680 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．４６０ |
13753-22680 |
US $5.91 |
||
|
13753
|
13753
13753-22690 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．４８０ |
13753-22690 |
US $4.72 |
||
|
13753
|
13753
13753-22700 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．５００ |
13753-22700 |
US $5.91 |
||
|
13753
|
13753
13753-22710 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．５２０ |
13753-22710 |
US $4.72 |
||
|
13753
|
13753
13753-22720 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．５４０ |
13753-22720 |
US $4.72 |
||
|
13753
|
13753
13753-22730 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．５６０ |
13753-22730 |
US $5.91 |
||
|
13753
|
13753
13753-22740 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．５８０ |
13753-22740 |
US $4.72 |
||
|
13753
|
13753
13753-22750 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．６００ |
13753-22750 |
from US $4.72 |
||
|
13753
|
13753
13753-22760 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．６２０ |
13753-22760 |
US $4.72 |
||
|
13753
|
13753
13753-22770 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．６４０ |
13753-22770 |
US $4.72 |
||
|
13753
|
13753
13753-22780 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．６６０ |
13753-22780 |
US $4.72 |
||
|
13753
|
13753
13753-22790 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．６８０ |
13753-22790 |
US $4.72 |
||
|
13753
|
13753
13753-22800 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．７００ |
13753-22800 |
US $4.72 |
||
|
13753
|
13753
13753-22810 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．７２０ |
13753-22810 |
US $4.72 |
||
|
13753
|
13753
13753-22820 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．７４０ |
13753-22820 |
US $4.72 |
||
|
13753
|
13753
13753-22830 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．７６０ |
13753-22830 |
US $4.72 |
||
|
13753
|
13753
13753-22840 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．７８０ |
13753-22840 |
US $4.72 |
||
|
13753
|
13753
13753-22850 Shim, Valve Adjusting[03.2017 -] 2URGSE..URZ100 厚さ＝２．８００ |
13753-22850 |
from US $4.13 |
||
|
13801
|
13801
13801-38030 Arm Sub-Assy, Valve Rocker, No.1[03.2017 -] 2URGSE..URZ100 |
13801-38030 |
from US $29.05 |
||
|
13802
|
13802
13801-38030 Arm Sub-Assy, Valve Rocker, No.1[03.2017 -] 2URGSE..URZ100 |
13801-38030 |
from US $29.05 |
||
|
13957A
|
13957A
13957-38010 Pivot, Valve Rocker Arm[03.2017 -] 2URGSE..URZ100 |
13957-38010 |
from US $3.59 |
||
|
13957B
|
13957B
13957-38010 Pivot, Valve Rocker Arm[03.2017 -] 2URGSE..URZ100 |
13957-38010 |
from US $3.59 |
||
|
9011012012
|
9011012012
90110-12012 New Genuine Part |
90110-12012 |
US $4.48 |
||
|
9011912370
|
9011912370
90119-12370 Bolt(For Camshaft Timing Gear) |
90119-12370 |
from US $2.66 |
||
|
9025010030
|
9025010030
90250-10030 Pin, Straight(For Clutch Housing Set) |
90250-10030 |
from US $1.27 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155180630
|
9155180630
91551-80630 Bolt(For Cylinder Head Cover) |
91551-80630 |
from US $0.63 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.78 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.43 |
