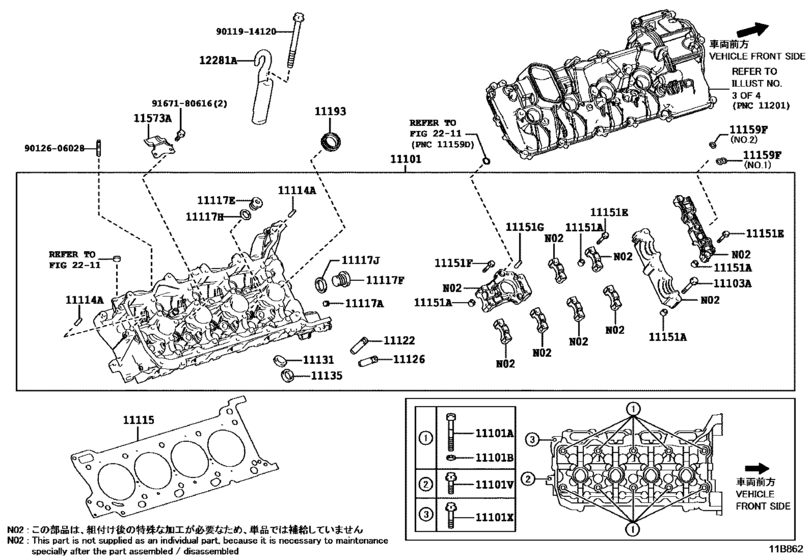

Cylinder Head ([03.2017 - ] ｼﾘﾝﾀﾞﾍｯﾄﾞ(ﾐｷﾞﾊﾞﾝｸ) (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-39836 Head Sub-Assy, Cylinder[03.2017 -] 2URGSE..URZ100 |
11101-39836 |
US $1,572.48 |
||
|
11101A
|
11101A
90910-02164 Bolt(For Cylinder Head Set)[03.2017 -] 2URGSE..URZ100 |
90910-02164 |
from US $5.56 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[03.2017 -] 2URGSE..URZ100 |
90201-11034 |
from US $0.87 |
||
|
11101V
|
11101V
91551-80825 Bolt(For Cylinder Head Set Sub)[03.2017 -] 2URGSE..URZ100 |
91551-80825 |
from US $0.78 |
||
|
11101X
|
11101X
91551-F0855 Bolt(For Cylinder Head Set Sub)[03.2017 -] 2URGSE..URZ100 |
91551-F0855 |
from US $0.91 |
||
|
11103A
|
11103A
91671-G0860 Bolt(For Camshaft Housing Set)[03.2017 -] 2URGSE..URZ100 |
91671-G0860 |
US $1.31 |
||
|
11114A
|
11114A
90250-05021 Pin, Straight[03.2017 -] 2URGSE..URZ100 長さ＝１３．８，外径＝５．０ |
90250-05021 |
from US $0.67 |
||
|
11115
|
11115
11115-38030 Gasket, Cylinder Head[03.2017 -] 2URGSE..URZ100 |
11115-38030 |
US $81.94 |
||
|
11117A
|
11117A
90344-51005 Plug, W/head Taper Screw, No.1[03.2017 -] 2URGSE..URZ100 |
90344-51005 |
US $3.58 |
||
|
11117E
|
11117E
90341-20012 Plug, W/head Straight Screw, No.1[03.2017 -] 2URGSE..URZ100 |
90341-20012 |
US $3.58 |
||
|
11117F
|
11117F
90341-27006 Plug, W/head Straight Screw, No.1[03.2017 -] 2URGSE..URZ100 |
90341-27006 |
from US $5.73 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[03.2017 -] 2URGSE..URZ100 |
90430-20004 |
from US $0.93 |
||
|
11117J
|
11117J
90430-27005 Gasket(For Cylinder Head Screw Plug)[03.2017 -] 2URGSE..URZ100 |
90430-27005 |
from US $1.25 |
||
|
11122
|
11122
11122-31050 Bush, Intake Valve Guide[03.2017 -] 2URGSE..URZ100 ＳＴＤ |
11122-31050 |
US $7.02 |
||
|
11122
|
11122
11123-31050 Bush, Intake Valve Guide[03.2017 -] 2URGSE..URZ100 Ｏ／Ｓ ０．０５ |
11123-31050 |
from US $7.02 |
||
|
11126
|
11126
11126-31030 Bush, Exhaust Valve Guide[03.2017 -] 2URGSE..URZ100 ＳＴＤ |
11126-31030 |
US $7.02 |
||
|
11126
|
11126
11127-31030 Bush, Exhaust Valve Guide[03.2017 -] 2URGSE..URZ100 Ｏ／Ｓ ０．０５ |
11127-31030 |
US $7.02 |
||
|
11131
|
11131
11131-31040 Seat, Intake Valve[03.2017 -] 2URGSE..URZ100 ＳＴＤ |
11131-31040 |
from US $7.33 |
||
|
11131
|
11131
11132-31040 Seat, Intake Valve[03.2017 -] 2URGSE..URZ100 Ｏ／Ｓ ０．０３ |
11132-31040 |
US $9.46 |
||
|
11135
|
11135
11135-38060 Seat, Exhaust Valve[03.2017 -] 2URGSE..URZ100 ＳＴＤ |
11135-38060 |
US $10.34 |
||
|
11135
|
11135
11136-38060 Seat, Exhaust Valve[03.2017 -] 2URGSE..URZ100 Ｏ／Ｓ ０．０３ |
11136-38060 |
US $10.34 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[03.2017 -] 2URGSE..URZ100 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.41 |
||
|
11151E
|
11151E
90119-07013 Bolt(For Camshaft Bearing Cap To Housing Rh, No.1)[03.2017 -] 2URGSE..URZ100 |
90119-07013 |
US $1.31 |
||
|
11151F
|
11151F
90119-08A58 Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)[03.2017 -] 2URGSE..URZ100 |
90119-08A58 |
US $1.79 |
||
|
11151G
|
11151G
90250-04097 Pin, Straight(For Camshaft Housing Rh)[03.2017 -] 2URGSE..URZ100 |
90250-04097 |
US $0.90 |
||
|
11159F
|
11159F
11159-31010 Gasket, Camshaft Bearing Cap Oil Hole, Rh[03.2017 -] 2URGSE..URZ100 ＮＯ．１：イラスト参照 |
11159-31010 |
from US $1.41 |
||
|
11159F
|
11159F
11159-38010 Gasket, Camshaft Bearing Cap Oil Hole, Rh[03.2017 -] 2URGSE..URZ100 ＮＯ．２：イラスト参照 |
11159-38010 |
from US $3.12 |
||
|
11193
|
11193
11193-38030 Gasket, Spark Plug Tube[03.2017 -] 2URGSE..URZ100 |
11193-38030 |
from US $2.76 |
||
|
11573A
|
11573A
11573-38030 Plate, Oil Reflector, Rh[03.2017 -] 2URGSE..URZ100 |
11573-38030 |
US $5.24 |
||
|
12281A
|
12281A
12081-38040 Hanger, Engine, No.1[03.2017 -] 2URGSE..URZ100 |
12081-38040 |
from US $58.01 |
||
|
9011914120
|
9011914120
90119-14120 Bolt arm low front |
90119-14120 |
from US $4.43 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
