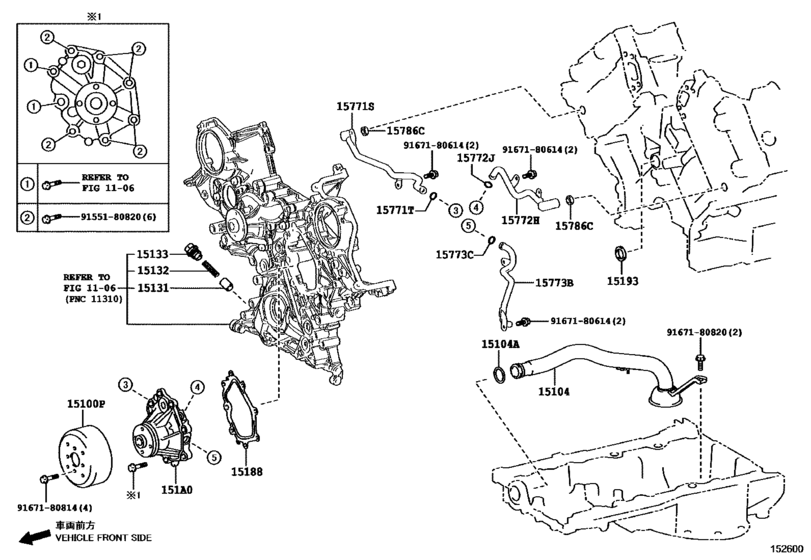

Engine Oil Pump ([03.2017 - ] (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
151A0
|
151A0
151A0-38010 Pump Assy, Scavenging[03.2017 -] 2URGSE..URZ100 |
151A0-38010 |
US $546 |
||
|
15100P
|
15100P
13524-38020 Pulley, Oil Pump Drive Shaft[03.2017 -] 2URGSE..URZ100 |
13524-38020 |
US $45.43 |
||
|
15104
|
15104
15104-38060 Strainer Sub-Assy, Oil[03.2017 -] 2URGSE..URZ100 |
15104-38060 |
US $70.03 |
||
|
15104A
|
15104A
96721-24028 Ring, O(For Oil Strainer)[03.2017 -] 2URGSE..URZ100 |
96721-24028 |
from US $2 |
||
|
15131
|
15131
15131-38070 Valve, Oil Pump Relief[03.2017 -] 2URGSE..URZ100 |
15131-38070 |
from US $2.87 |
||
|
15132
|
15132
15132-38070 Spring, Oil Pump Relief Valve[03.2017 -] 2URGSE..URZ100 |
15132-38070 |
from US $1.50 |
||
|
15133
|
15133
15133-38070 Plug, Oil Pump Relief Valve[03.2017 -] 2URGSE..URZ100 |
15133-38070 |
US $3.19 |
||
|
15188
|
15188
15193-38030 Gasket, Oil Pump[03.2017 -] 2URGSE..URZ100 |
15193-38030 |
US $5.53 |
||
|
15193
|
15193
15193-38010 Gasket, Oil Pump[03.2017 -] 2URGSE..URZ100 |
15193-38010 |
from US $3.08 |
||
|
15771S
|
15771S
15771-38010 Pipe, Oil, No.1[03.2017 -] 2URGSE..URZ100 |
15771-38010 |
US $40.33 |
||
|
15771T
|
15771T
90301-11019 Ring, O(For Oil Pipe No.1)[03.2017 -] 2URGSE..URZ100 |
90301-11019 |
US $2.51 |
||
|
15772H
|
15772H
15772-38010 Pipe, Oil, No.2[03.2017 -] 2URGSE..URZ100 |
15772-38010 |
US $25.48 |
||
|
15772J
|
15772J
90301-11019 Ring, O(For Oil Pipe No.1)[03.2017 -] 2URGSE..URZ100 |
90301-11019 |
US $2.51 |
||
|
15773B
|
15773B
15773-38020 Pipe, Oil, No.3[03.2017 -] 2URGSE..URZ100 |
15773-38020 |
US $19.80 |
||
|
15773C
|
15773C
90301-11019 Ring, O(For Oil Pipe No.1)[03.2017 -] 2URGSE..URZ100 |
90301-11019 |
US $2.51 |
||
|
15786C
|
15786C
15786-38010 Seal, Oil Pipe[03.2017 -] 2URGSE..URZ100 |
15786-38010 |
US $1.67 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
