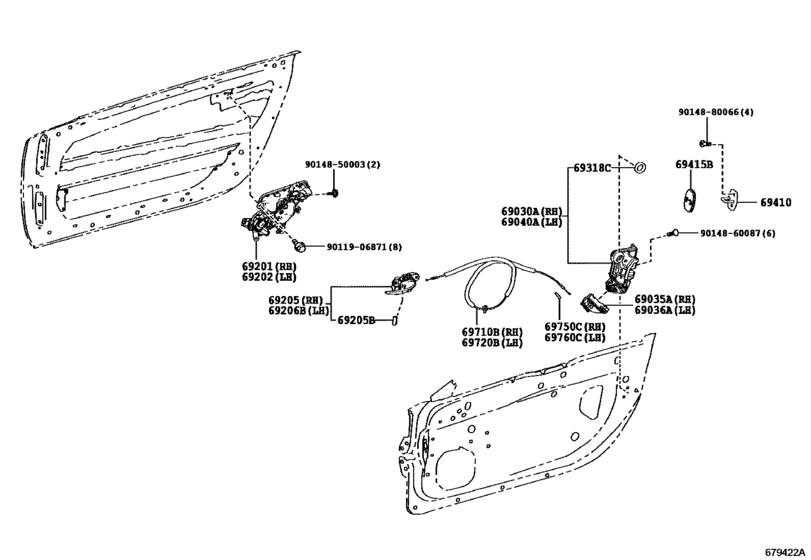

Front Door Lock & Handle ([01.2017 - ] (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-11010 Lock Assy, Front Door W/motor, Rh[01.2017 -] GWZ100,URZ100 |
69030-11010 |
US $151.42 |
||
|
69035A
|
69035A
69035-30010 Cover Sub-Assy, Front Door Lock, Rh[01.2017 -] GWZ100,URZ100 |
69035-30010 |
from US $3.44 |
||
|
69036A
|
69036A
69036-30010 Cover Sub-Assy, Front Door Lock, Lh[01.2017 -] GWZ100,URZ100 |
69036-30010 |
US $3.94 |
||
|
69040A
|
69040A
69040-11020 Lock Assy, Front Door W/motor, Lh[01.2017 -] GWZ100,URZ100 |
69040-11020 |
US $151.42 |
||
|
69201
|
69201
69201-11010-A0 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 WHITE NOVA GF.,083 |
69201-11010-A0 |
US $388.75 |
||
|
69201
|
69201
69201-11010-B0 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 DK.GRAY MC.,1G0 |
69201-11010-B0 |
US $388.75 |
||
|
69201
|
69201
69201-11010-B1 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 SONIC SILVER,1J2 |
69201-11010-B1 |
US $388.75 |
||
|
69201
|
69201
69201-11010-B2 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 SONIC TITANIUM,1J7 |
69201-11010-B2 |
US $388.75 |
||
|
69201
|
69201
69201-11010-C0 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 BLACK,212 |
69201-11010-C0 |
US $388.75 |
||
|
69201
|
69201
69201-11010-C1 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
69201-11010-C1 |
US $388.75 |
||
|
69201
|
69201
69201-11010-D0 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 GARNET RED MC.,3S0 |
69201-11010-D0 |
US $388.75 |
||
|
69201
|
69201
69201-11010-D1 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
69201-11010-D1 |
US $388.75 |
||
|
69201
|
69201
69201-11010-E0 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 AMBER CS.,4X2 |
69201-11010-E0 |
US $388.75 |
||
|
69201
|
69201
69201-11010-F0 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 NAPLES YELLOW,5C1 |
69201-11010-F0 |
US $388.75 |
||
|
69201
|
69201
69201-11010-J0 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 DEEP BLUE MC.,8X5 |
69201-11010-J0 |
US $388.75 |
||
|
69201
|
69201
69201-11010-J1 Handle Sub-Assy, Door Outside, Rh[01.2017 -] GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
69201-11010-J1 |
US $388.75 |
||
|
69202
|
69202
69202-11010-A0 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 WHITE NOVA GF.,083 |
69202-11010-A0 |
US $388.75 |
||
|
69202
|
69202
69202-11010-B0 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 DK.GRAY MC.,1G0 |
69202-11010-B0 |
US $388.75 |
||
|
69202
|
69202
69202-11010-B1 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 SONIC SILVER,1J2 |
69202-11010-B1 |
US $388.75 |
||
|
69202
|
69202
69202-11010-B2 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 SONIC TITANIUM,1J7 |
69202-11010-B2 |
US $388.75 |
||
|
69202
|
69202
69202-11010-C0 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 BLACK,212 |
69202-11010-C0 |
US $388.75 |
||
|
69202
|
69202
69202-11010-C1 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
69202-11010-C1 |
US $388.75 |
||
|
69202
|
69202
69202-11010-D0 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 GARNET RED MC.,3S0 |
69202-11010-D0 |
US $388.75 |
||
|
69202
|
69202
69202-11010-D1 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
69202-11010-D1 |
US $388.75 |
||
|
69202
|
69202
69202-11010-E0
Handle Sub-Assy, Door Outside, Lh
[01.2017 -] GWZ100,URZ100 AMBER CS.,4X2 |
69202-11010-E0 |
— | ||
| replacement | |||||
|
69202
|
69202
69202-11012-E0 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 AMBER CS.,4X2 |
69202-11012-E0 |
US $555.35 |
||
|
69202
|
69202
69202-11010-F0
Handle Sub-Assy, Door Outside, Lh
[01.2017 -] GWZ100,URZ100 NAPLES YELLOW,5C1 |
69202-11010-F0 |
— | ||
| replacement | |||||
|
69202
|
69202
69202-11012-F0 HANDLE SUBASSY FR[01.2017 -] GWZ100,URZ100 NAPLES YELLOW,5C1 |
69202-11012-F0 |
from US $395.22 |
||
|
69202
|
69202
69202-11010-J0 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 DEEP BLUE MC.,8X5 |
69202-11010-J0 |
US $388.75 |
||
|
69202
|
69202
69202-11010-J1 Handle Sub-Assy, Door Outside, Lh[01.2017 -] GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
69202-11010-J1 |
US $388.75 |
||
|
69205
|
69205
69270-11010 Handle Sub-Assy, Front Door Inside, Rh[01.2017 -] GWZ100,URZ100 |
69270-11010 |
US $36.84 |
||
|
69205B
|
69205B
90541-07050 Cushion(For Front Door Inside Handle)[01.2017 -] GWZ100,URZ100 |
90541-07050 |
US $1.31 |
||
|
69206B
|
69206B
69280-11010 Handle Sub-Assy, Front Door Inside, Lh[01.2017 -] GWZ100,URZ100 |
69280-11010 |
US $36.84 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[01.2017 -] GWZ100,URZ100 |
69318-51010 |
US $2.15 |
||
|
69410
|
69410
69410-30060 Plate Assy, Front Door Lock Striker[01.2017 -] GWZ100,URZ100 |
69410-30060 |
US $17.81 |
||
|
69415B
|
69415B
69415-60020 Cover, Door Lock Striker, Front[01.2017 -] GWZ100,URZ100 |
69415-60020 |
from US $4.73 |
||
|
69710B
|
69710B
69710-11020 Cable Assy, Front Door Lock Remote Control, Rh[01.2017 -] GWZ100,URZ100 |
69710-11020 |
US $23.59 |
||
|
69720B
|
69720B
69710-11020 Cable Assy, Front Door Lock Remote Control, Rh[01.2017 -] GWZ100,URZ100 |
69710-11020 |
US $23.59 |
||
|
69750C
|
69750C
69750-11040 Cable Assy, Front Door Inside Locking, Rh[01.2017 -] GWZ100,URZ100 |
69750-11040 |
US $1.16 |
||
|
69760C
|
69760C
69750-11040 Cable Assy, Front Door Inside Locking, Rh[01.2017 -] GWZ100,URZ100 |
69750-11040 |
US $1.16 |
||
|
9011906871
|
9011906871
90119-06871 BOLT WWASHER |
90119-06871 |
US $1.08 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.65 |
||
|
9014860087
|
9014860087
90148-60087 New Genuine Part |
90148-60087 |
US $0.73 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.65 |
||
