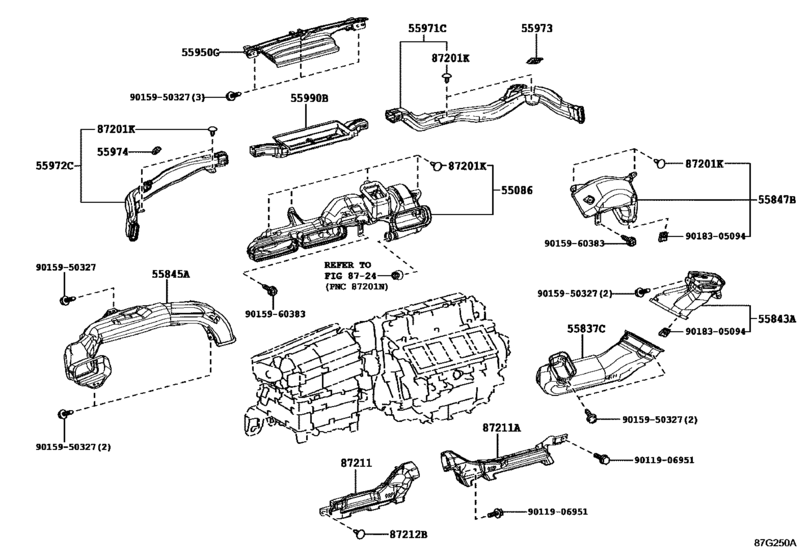

Heating & Air Conditioning - Control & Air Duct ([01.2017 - ] ｴｱﾀﾞｸﾄ (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55086
|
55086
55086-11030 Duct Sub-Assy, Heater To Register, No.3[01.2017 -] GWZ100,URZ100 |
55086-11030 |
US $41.20 |
||
|
55837C
|
55837C
55837-11020 Duct, Heater To Register Center Sub[01.2017 -] GWZ100,URZ100 |
55837-11020 |
US $18.93 |
||
|
55843A
|
55843A
55843-11020 Duct, Heater To Register, No.1[01.2017 -] GWZ100,URZ100 |
55843-11020 |
US $11.36 |
||
|
55845A
|
55845A
55845-11020 Duct, Heater To Register, No.3[01.2017 -] GWZ100,URZ100 |
55845-11020 |
US $22.71 |
||
|
55847B
|
55847B
55847-11020 Duct, Heater To Register, No.5[01.2017 -] GWZ100,URZ100 |
55847-11020 |
US $14.27 |
||
|
55950G
|
55950G
55950-11020 Nozzle Assy, Defroster[01.2017 -] GWZ100,URZ100 |
55950-11020 |
US $29.41 |
||
|
55971C
|
55971C
55971-11020 Duct, Side Defroster Nozzle, No.1[01.2017 -] GWZ100,URZ100 |
55971-11020 |
US $21.40 |
||
|
55972C
|
55972C
55972-11020 Duct, Side Defroster Nozzle, No.2[01.2017 -] GWZ100,URZ100 |
55972-11020 |
US $19.51 |
||
|
55973
|
55973
55973-11030 Duct, Side Defroster Nozzle, No.3[01.2017 -] GWZ100,URZ100 |
55973-11030 |
US $2.62 |
||
|
55974
|
55974
55973-11040 Duct, Side Defroster Nozzle, No.4[01.2017 -] GWZ100,URZ100 |
55973-11040 |
US $2.62 |
||
|
55990B
|
55990B
55990-11020 Nozzle Assy, Defroster, Lower[01.2017 -] GWZ100,URZ100 |
55990-11020 |
US $17.18 |
||
|
87201K
|
87201K
90467-05162-C0 Clip, Heater To Register Duct[01.2017 -] GWZ100,URZ100 BLACK |
90467-05162-C0 |
from US $0.65 |
||
|
87211
|
87211
87211-11050
Duct, Air, No.1
[01.2017 -] GWZ100,URZ100 |
87211-11050 |
— | ||
|
87211A
|
87211A
87211-11040
Duct, Air, No.2
[01.2017 -] GWZ100,URZ100 |
87211-11040 |
— | ||
|
87212B
|
87212B
90467-05021-C0 Clip (For Center Pillar Garnish Panel, Upper)[01.2017 -] GWZ100,URZ100 BLACK |
90467-05021-C0 |
from US $1.06 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.91 |
