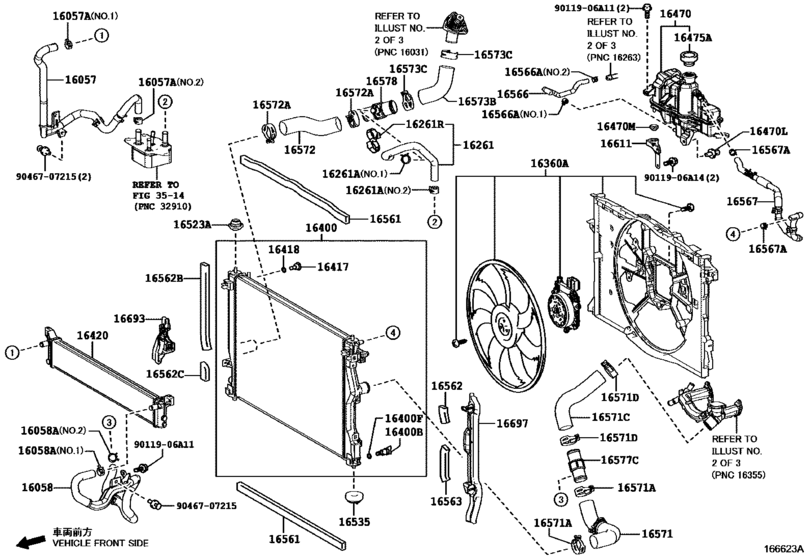

Radiator & Water Outlet ([03.2017 - ] ﾗｼﾞｴｰﾀｶﾞﾜ (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16057
|
16057
16058-31060 Hose Sub-Assy, Radiator[03.2017 -] 2URGSE..URZ100 |
16058-31060 |
US $51.98 |
||
|
16057A
|
16057A
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 ＮＯ．２：イラスト参照 |
96136-42101 |
from US $2.85 |
||
|
16057A
|
16057A
96138-52501 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 ＮＯ．１：イラスト参照 |
96138-52501 |
from US $3.23 |
||
|
16058
|
16058
16058-31050 Hose Sub-Assy, Radiator, No.2[03.2017 -] 2URGSE..URZ100 |
16058-31050 |
US $51.98 |
||
|
16058A
|
16058A
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 ＮＯ．２：イラスト参照 |
96138-42501 |
from US $2.87 |
||
|
16058A
|
16058A
96138-52501 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 ＮＯ．１：イラスト参照 |
96138-52501 |
from US $3.23 |
||
|
16261
|
16261
16261-31180 Hose, Water By-Pass[03.2017 -] 2URGSE..URZ100 |
16261-31180 |
US $10.63 |
||
|
16261A
|
16261A
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 ＮＯ．２：イラスト参照 |
96136-42101 |
from US $2.85 |
||
|
16261A
|
16261A
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 ＮＯ．１：イラスト参照 |
96138-42501 |
from US $2.87 |
||
|
16261R
|
16261R
32923-50110 Clamp Or Clip(For Water By-Pass Hose)[03.2017 -] 2URGSE..URZ100 |
32923-50110 |
US $9.69 |
||
|
16360A
|
16360A
16360-31520 Fan Assy, W/motor[03.2017 -] 2URGSE..URZ100 |
16360-31520 |
US $683.11 |
||
|
16400
|
16400
16400-31700 Radiator Assy[03.2017 -] 2URGSE..URZ100 |
16400-31700 |
US $496.20 |
||
|
16400B
|
16400B
16417-21280 Cock Sub-Assy, Radiator Drain[03.2017 -] 2URGSE..URZ100 |
16417-21280 |
from US $3.46 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[03.2017 -] 2URGSE..URZ100 |
16492-21050 |
from US $2.13 |
||
|
16417
|
16417
16417-28530 Plug, Radiator Drain Cock[03.2017 -] 2URGSE..URZ100 |
16417-28530 |
from US $4.69 |
||
|
16418
|
16418
16418-20291 Packing(For Radiator Drain Cock)[03.2017 -] 2URGSE..URZ100 |
16418-20291 |
US $3.76 |
||
|
16420
|
16420
G9010-11010 Radiator Assy, Sub[03.2017 -] 2URGSE..URZ100 |
G9010-11010 |
US $354.33 |
||
|
16470
|
16470
16470-38060 Tank Assy, Radiator Reserve[03.2017 -] 2URGSE..URZ100 |
16470-38060 |
US $103.03 |
||
|
16470L
|
16470L
90467-07215 Clip[03.2017 -] 2URGSE..URZ100 |
90467-07215 |
from US $0.82 |
||
|
16470M
|
16470M
90480-18010 Grommet, Radiator Reserve Tank Hose[03.2017 -] 2URGSE..URZ100 |
90480-18010 |
from US $2.09 |
||
|
16475A
|
16475A
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[03.2017 -] 2URGSE..URZ100 |
16475-28140 |
from US $20.16 |
||
|
16523A
|
16523A
16523-38010 Cushion, Radiator Support[03.2017 -] 2URGSE..URZ100 |
16523-38010 |
from US $5.43 |
||
|
16535
|
16535
90480-40022 Support, Radiator, Lower[03.2017 -] 2URGSE..URZ100 |
90480-40022 |
from US $10.39 |
||
|
16561
|
16561
16561-31170 Seal, Radiator To Support, No.1[03.2017 -] 2URGSE..URZ100 |
16561-31170 |
US $4.12 |
||
|
16562
|
16562
16561-31180 Seal, Radiator To Support, No.2[03.2017 -] 2URGSE..URZ100 |
16561-31180 |
US $1.43 |
||
|
16562B
|
16562B
16561-31200 Seal, Radiator To Support, No.4[03.2017 -] 2URGSE..URZ100 |
16561-31200 |
US $2.87 |
||
|
16562C
|
16562C
16561-31210 Seal, Radiator To Support, No.5[03.2017 -] 2URGSE..URZ100 |
16561-31210 |
US $1.43 |
||
|
16563
|
16563
16561-31190 Seal, Radiator To Support, No.3[03.2017 -] 2URGSE..URZ100 |
16561-31190 |
US $1.43 |
||
|
16566
|
16566
16566-31050 Hose, Reserve Tank Outlet[03.2017 -] 2URGSE..URZ100 |
16566-31050 |
US $4.66 |
||
|
16566A
|
16566A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[03.2017 -] 2URGSE..URZ100 ＮＯ．２：イラスト参照 |
96137-41501 |
from US $2.09 |
||
|
16566A
|
16566A
96137-41701 Clamp Or Clip, Hose(For Water By-Pass Hose)[03.2017 -] 2URGSE..URZ100 ＮＯ．１：イラスト参照 |
96137-41701 |
from US $2.36 |
||
|
16567
|
16567
16567-31060 Hose(For Radiator Reserve Tank)[03.2017 -] 2URGSE..URZ100 |
16567-31060 |
US $15.43 |
||
|
16567A
|
16567A
96136-41901 Clip Or Clamp(For Ventilation Hose)[03.2017 -] 2URGSE..URZ100 |
96136-41901 |
from US $2.05 |
||
|
16571
|
16571
16571-31440 Hose, Radiator, Inlet[03.2017 -] 2URGSE..URZ100 |
16571-31440 |
US $14.56 |
||
|
16571A
|
16571A
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 |
90466-39002 |
from US $3.80 |
||
|
16571C
|
16571C
16571-31410 Hose, Radiator, No.1[03.2017 -] 2URGSE..URZ100 |
16571-31410 |
US $14.02 |
||
|
16571D
|
16571D
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 |
90466-39002 |
from US $3.80 |
||
|
16572
|
16572
16572-31480 Hose, Radiator, Outlet[03.2017 -] 2URGSE..URZ100 |
16572-31480 |
US $13.54 |
||
|
16572A
|
16572A
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 |
90466-39002 |
from US $3.80 |
||
|
16573B
|
16573B
16573-31120 Hose, Radiator, No.3[03.2017 -] 2URGSE..URZ100 |
16573-31120 |
US $10.63 |
||
|
16573C
|
16573C
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 2URGSE..URZ100 |
90466-39002 |
from US $3.80 |
||
|
16577C
|
16577C
16577-31060 Pipe, Radiator[03.2017 -] 2URGSE..URZ100 |
16577-31060 |
US $15.14 |
||
|
16578
|
16578
16577-31060 Pipe, Radiator[03.2017 -] 2URGSE..URZ100 |
16577-31060 |
US $15.14 |
||
|
16611
|
16611
16611-38020 Bracket, Radiator Reserve Tank[03.2017 -] 2URGSE..URZ100 |
16611-38020 |
US $16.31 |
||
|
16693
|
16693
16693-31030 Plate, Radiator Side Air Guide, Rr Rh[03.2017 -] 2URGSE..URZ100 |
16693-31030 |
US $11.83 |
||
|
16697
|
16697
16697-31030 Plate, Radiator Side Air Guide, Rr Lh[03.2017 -] 2URGSE..URZ100 |
16697-31030 |
US $18.82 |
||
|
9011906A11
|
9011906A11
90119-06A11 BOLT WWASHER |
90119-06A11 |
US $1.08 |
||
|
9011906A14
|
9011906A14
90119-06A14 BOLT, W/WASHER |
90119-06A14 |
US $1.08 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.82 |
