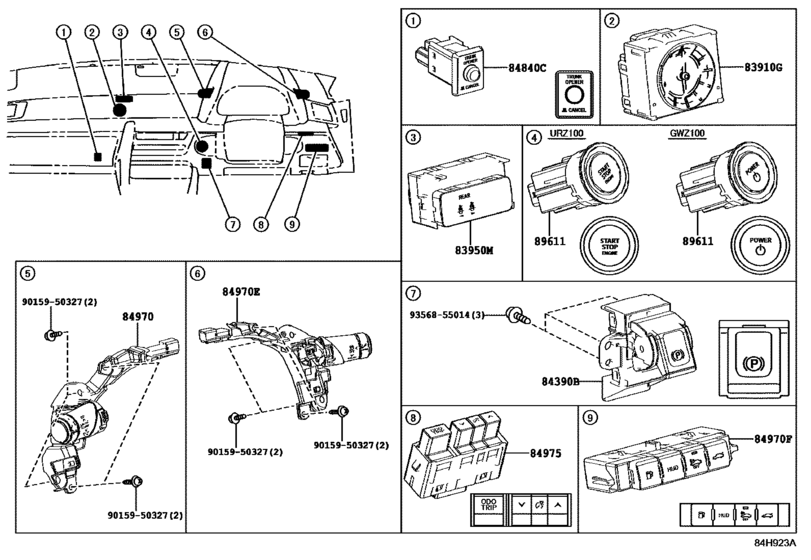

Switch & Relay & Computer ([01.2017 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2 (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-11010 Clock Assy[01.2017 -] GWZ100,URZ100 |
83910-11010 |
US $317.41 |
||
|
83950M
|
83950M
83950-11050 Lamp Assy, Telltale[01.2017 -] GWZ100,URZ100 |
83950-11050 |
US $49.07 |
||
|
84390B
|
84390B
84390-11010 Switch Assy, Electric Parking Brake[01.2017 -] GWZ100,URZ100 |
84390-11010 |
US $35.96 |
||
|
84840C
|
84840C
84840-24020 Switch Assy, Luggage Door Opening, Cancel[01.2017 -] GWZ100,URZ100 |
84840-24020 |
US $30.23 |
||
|
84970
|
84970
84970-11170 Switch Assy, Combination[01.2017 -] GWZ100,URZ100 |
84970-11170 |
US $104.83 |
||
|
84970E
|
84970E
84970-11040 Switch Assy, Combination No.2[01.2017 -] GWZ100,URZ100 |
84970-11040 |
US $104.83 |
||
|
84970F
|
84970F
84970-11110 Switch Assy, Combination, No.3[03.2017 -] URZ100 ヘッドアップディスプレイ−有り |
84970-11110 |
US $74.26 |
||
|
84970F
|
84970F
84970-11120 Switch Assy, Combination, No.3[03.2017 -] URZ100 |
84970-11120 |
US $63.63 |
||
|
84975
|
84975
84975-11020 Switch, Trip[01.2017 -] GWZ100,URZ100 |
84975-11020 |
US $59.99 |
||
|
89611
|
89611
89611-11010
Switch, Push Start
[03.2017 -] URZ100 |
89611-11010 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-11011 Switch, Push Start[03.2017 -] URZ100 |
89611-11011 |
US $110.88 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
