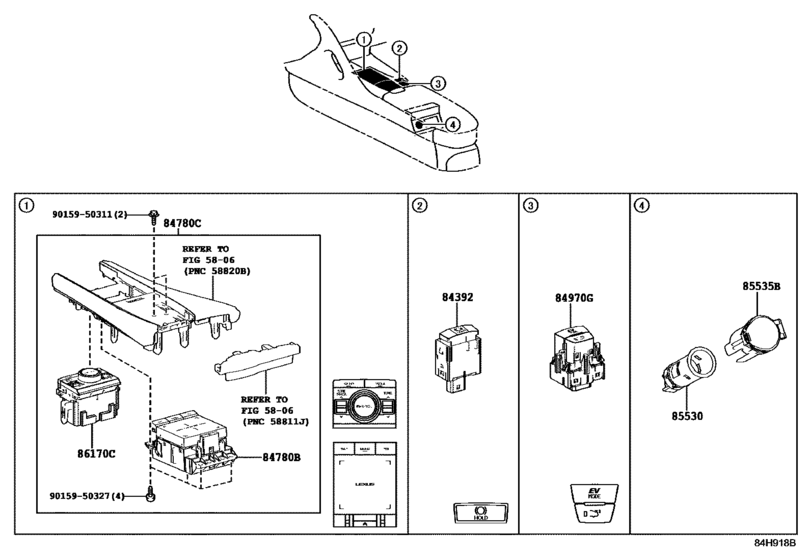

Switch & Relay & Computer ([01.2017 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2 (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84392
|
84392
84392-11010 Switch, Brake Hold[01.2017 -] GWZ100,URZ100 |
84392-11010 |
US $35.96 |
||
|
84780B
|
84780B
84780-11010 Controller Assy, Remote Operation[01.2017 -] GWZ100,URZ100 |
84780-11010 |
US $333.42 |
||
|
84780C
|
84780C
84780-11040-C2 Switch Assy, Radio Remote Tuning[01.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3# |
84780-11040-C2 |
US $2,198.56 |
||
|
84780C
|
84780C
84780-11040-E1 Switch Assy, Radio Remote Tuning[01.2017 -] GWZ100,URZ100 OCHRE,TRIM4# |
84780-11040-E1 |
US $2,198.56 |
||
|
84780C
|
84780C
84780-11040-J1 Switch Assy, Radio Remote Tuning[01.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
84780-11040-J1 |
US $2,198.56 |
||
|
84970G
|
84970G
84970-11190 Switch Assy, Combination, No.4[03.2017 -] URZ100 スポーツプラス |
84970-11190 |
US $54.16 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[01.2017 -] GWZ100,URZ100 |
85530-42010 |
from US $25.59 |
||
|
85535B
|
85535B
85535-30020 Cover, Power Outlet Socket, No.1[01.2017 -] GWZ100,URZ100 |
85535-30020 |
from US $6 |
||
|
86170C
|
86170C
86170-11010 Switch & Volume Assy[01.2017 -] GWZ100,URZ100 |
86170-11010 |
US $352.35 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
