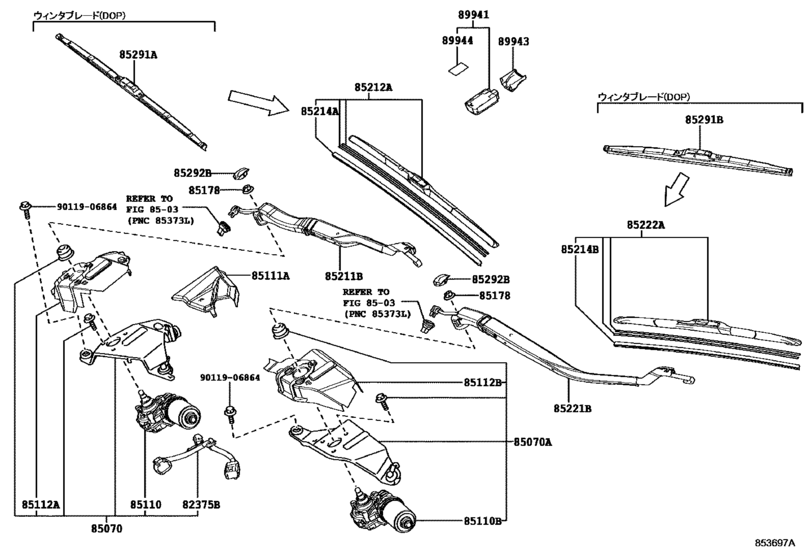

Windshield Wiper ([01.2017 - ] (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-11010 Wire, Wiper Motor[01.2017 -] GWZ100,URZ100 |
82375-11010 |
US $28.83 |
||
|
85070
|
85070
85070-11010 Motor & Bracket Assy, Front Wiper[01.2017 -] GWZ100,URZ100 |
85070-11010 |
US $556.19 |
||
|
85070A
|
85070A
85070-11020 Motor & Bracket Assy, Front Wiper, No.2[01.2017 -] GWZ100,URZ100 |
85070-11020 |
US $556.19 |
||
|
85110
|
85110
85110-11030 Motor Assy, Windshield Wiper[01.2017 -] GWZ100,URZ100 |
85110-11030 |
US $496.50 |
||
|
85110B
|
85110B
85110-11040 Motor Assy, Windshield Wiper, No.2[01.2017 -] GWZ100,URZ100 |
85110-11040 |
US $496.50 |
||
|
85111A
|
85111A
85111-11030
Cover, Front Wiper Motor
[01.2017 -] GWZ100,URZ100 |
85111-11030 |
— | ||
|
85112A
|
85112A
85112-11030
Cover, Windshield Wiper Shaft, No.1
[01.2017 -] GWZ100,URZ100 |
85112-11030 |
— | ||
|
85112B
|
85112B
85112-11040
Cover, Windshield Wiper Shaft, No.2
[01.2017 -] GWZ100,URZ100 |
85112-11040 |
— | ||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[01.2017 -] GWZ100,URZ100 |
90182-10006 |
US $1.43 |
||
|
85211B
|
85211B
85211-11010 Arm, Front Wiper, Rh[01.2017 -] GWZ100,URZ100 |
85211-11010 |
US $85.90 |
||
|
85212A
|
85212A
85212-11020 Blade, Fr Wiper, Rh[01.2017 -] GWZ100,URZ100 |
85212-11020 |
US $72.07 |
||
|
85214A
|
85214A
85214-11010 Rubber, Wiper, Rh[01.2017 -] GWZ100,URZ100 |
85214-11010 |
from US $16.13 |
||
|
85214B
|
85214B
85214-33180 Rubber, Wiper, Lh[01.2017 -] GWZ100,URZ100 |
85214-33180 |
from US $8.12 |
||
|
85221B
|
85221B
85221-11020 Arm, Front Wiper, Lh[01.2017 -] GWZ100,URZ100 |
85221-11020 |
US $97.55 |
||
|
85222A
|
85222A
85222-11050 Blade, Fr Wiper, Lh[01.2017 -] GWZ100,URZ100 |
85222-11050 |
US $36.62 |
||
|
85291A
|
85291A
85291-47040 Blade, Front Wiper, Winter, Rh[01.2017 -] GWZ100,URZ100 ＃−ウィンタブレード（ＤＯＰ） |
85291-47040 |
US $98.40 |
||
|
85291B
|
85291B
85291-11010 Blade, Front Wiper, Winter, Lh[01.2017 -] GWZ100,URZ100 ＃−ウィンタブレード（ＤＯＰ） |
85291-11010 |
US $61.15 |
||
|
85292B
|
85292B
85292-11010 Cap, Front Wiper Arm Head[01.2017 -] GWZ100,URZ100 |
85292-11010 |
from US $2.62 |
||
|
89941
|
89941
89941-11010 Sensor, Rain[01.2017 -] GWZ100,URZ100 |
89941-11010 |
US $167.44 |
||
|
89943
|
89943
89943-11010 Cover, Rain Sensor[01.2017 -] GWZ100,URZ100 |
89943-11010 |
US $3.93 |
||
|
89944
|
89944
89944-48010 Tape, Rain Sensor[01.2017 -] GWZ100,URZ100 |
89944-48010 |
from US $1.82 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
