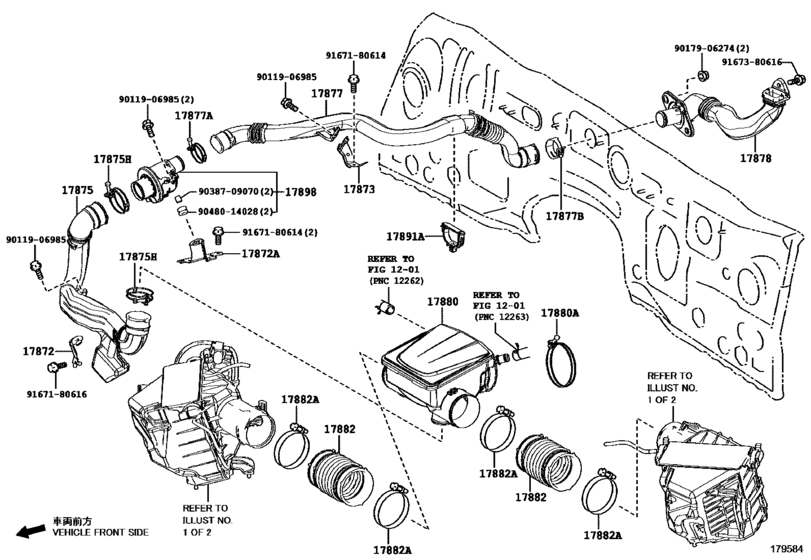

Air Cleaner ([03.2017 - ] AIR CLEANER HOSE & SOUND GENERATOR (1703- )2URGSE..LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17872
|
17872
17872-38030 Bracket, Intake Air Connector[03.2017 -] 2URGSE..URZ100 |
17872-38030 |
US $4.66 |
||
|
17872A
|
17872A
17872-38020 Bracket, Intake Air Connector, No.1[03.2017 -] 2URGSE..URZ100 |
17872-38020 |
US $12.96 |
||
|
17873
|
17873
17873-38020 Bracket, Intake Air Connector, No.2[03.2017 -] 2URGSE..URZ100 |
17873-38020 |
US $4.80 |
||
|
17875
|
17875
17875-38050 Pipe, Intake Air Connector[03.2017 -] 2URGSE..URZ100 |
17875-38050 |
US $91.73 |
||
|
17875H
|
17875H
90460-55017 Clamp, Hose(For Intake Air Connector Pipe)[03.2017 -] 2URGSE..URZ100 |
90460-55017 |
US $3.20 |
||
|
17877
|
17877
17877-38030 Pipe, Intake Air Connector, No.2[03.2017 -] 2URGSE..URZ100 |
17877-38030 |
US $38.29 |
||
|
17877A
|
17877A
90460-43002 Clamp, Hose(For Intake Air Connector Pipe, No.2)[03.2017 -] 2URGSE..URZ100 |
90460-43002 |
US $2.48 |
||
|
17877B
|
17877B
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[03.2017 -] 2URGSE..URZ100 |
96136-44301 |
from US $5.56 |
||
|
17878
|
17878
17878-38030
Pipe, Intake Air Connector, No.3
[03.2017 -] 2URGSE..URZ100..LHD |
17878-38030 |
— | ||
|
17880
|
17880
17880-38090 Hose Assy, Air Cleaner[03.2017 -] 2URGSE..URZ100 |
17880-38090 |
US $50.67 |
||
|
17880A
|
17880A
17891-38070 Clamp, Hose[03.2017 -] 2URGSE..URZ100 |
17891-38070 |
US $4.80 |
||
|
17882
|
17882
17882-36030 Hose, Air Cleaner, No.2[03.2017 -] 2URGSE..URZ100 |
17882-36030 |
US $23.76 |
||
|
17882A
|
17882A
90460-88009 Clamp(For Air Cleaner Hose, No.2)[03.2017 -] 2URGSE..URZ100 |
90460-88009 |
US $4.22 |
||
|
17891A
|
17891A
17891-38080 Clamp, Air Cleaner Hose[03.2017 -] 2URGSE..URZ100 |
17891-38080 |
US $8.74 |
||
|
17898
|
17898
17898-38030
Creator, Intake Air Sound
[03.2017 -] 2URGSE..URZ100 |
17898-38030 |
— | ||
|
9011906985
|
9011906985
90119-06985 New Genuine Part |
90119-06985 |
US $1.02 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9038709070
|
9038709070
90387-09070 New Genuine Part |
90387-09070 |
US $1.31 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.63 |
