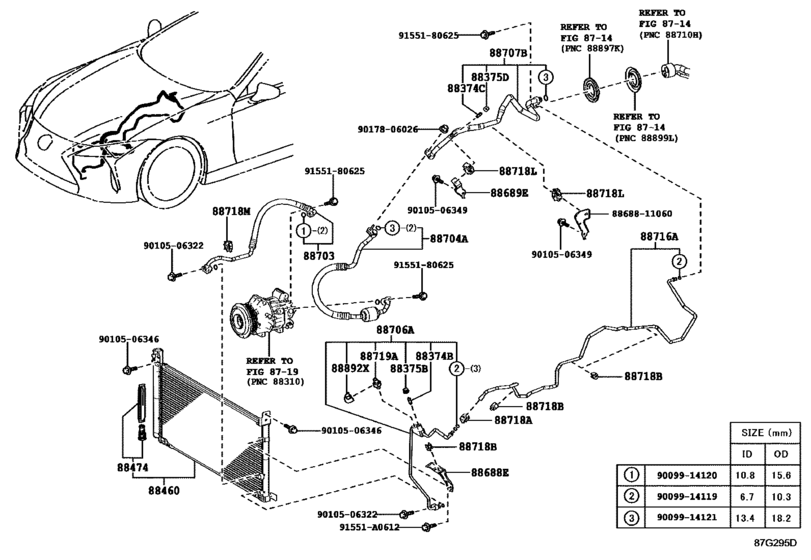

Heating & Air Conditioning - Cooler Piping ([03.2017 - ] (1703- )URZ100..LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[03.2017 -] GWZ100,URZ100 |
88374-30010 |
from US $3.08 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[03.2017 -] GWZ100,URZ100 |
88374-30010 |
from US $3.08 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[03.2017 -] GWZ100,URZ100 |
88375-30280 |
from US $0.98 |
||
|
88375D
|
88375D
88375-30290 Cap, Service Valve (For Cooler Pipe)[03.2017 -] GWZ100,URZ100 |
88375-30290 |
from US $0.78 |
||
|
88460
|
88460
884A0-11010 Condenser Assy, Cooler[03.2017 -] URZ100 |
884A0-11010 |
US $508.44 |
||
|
88474
|
88474
88474-47030 Dryer, Cooler[03.2017 -] GWZ100,URZ100 |
88474-47030 |
US $72.68 |
||
|
88688E
|
88688E
88688-11010
Bracket, Cooler Refrigerant Hose, No.1
[03.2017 -] GWZ100,URZ100 |
88688-11010 |
— | ||
|
88689E
|
88689E
88688-11030
Bracket, Cooler, No.1
[03.2017 -] URZ100 |
88688-11030 |
— | ||
|
88703
|
88703
88703-11010 Hose Sub-Assy, Discharge[03.2017 -] URZ100 |
88703-11010 |
US $110.66 |
||
|
88704A
|
88704A
88704-11010 Hose Sub-Assy, Suction, A[03.2017 -] URZ100 |
88704-11010 |
US $132.50 |
||
|
88706A
|
88706A
88706-11010 Tube Sub-Assy, Liquid, A[03.2017 -] GWZ100,URZ100 |
88706-11010 |
US $151.42 |
||
|
88707B
|
88707B
88707-11010 Tube Sub-Assy, Suction, B[03.2017 -] URZ100 |
88707-11010 |
US $123.76 |
||
|
88716A
|
88716A
88716-11010
Pipe, Cooler Refrigerant Liquid, A
[03.2017 -] URZ100..LHD |
88716-11010 |
— | ||
|
88718A
|
88718A
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1[03.2017 -] GWZ100,URZ100 |
88718-2D150 |
from US $5.55 |
||
|
88718B
|
88718B
88718-50390
Clamp(For Cooler Refrigerant Pipe), No.2
[03.2017 -] GWZ100,URZ100 |
88718-50390 |
— | ||
|
88718L
|
88718L
88718-42110
Clamp, Piping
[03.2017 -] GWZ100,URZ100 |
88718-42110 |
— | ||
|
88718M
|
88718M
88718-47090
Clamp, Piping
[03.2017 -] GWZ100,URZ100 |
88718-47090 |
— | ||
|
88719A
|
88719A
88719-11010 Sensor, Airconditioner Pressure[03.2017 -] GWZ100,URZ100 |
88719-11010 |
US $135.11 |
||
|
88892X
|
88892X
88892-50120
Cover, Cooler, No.2
[03.2017 -] GWZ100,URZ100 |
88892-50120 |
— | ||
|
91551A0612
|
91551A0612
91551-A0612 New Genuine Part |
91551-A0612 |
US $1.08 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.54 |
||
|
9010506322
|
9010506322
90105-06322 New Genuine Part |
90105-06322 |
US $1.08 |
||
|
9010506346
|
9010506346
90105-06346
New Genuine Part
|
90105-06346 |
— | ||
|
9010506349
|
9010506349
90105-06349 BOLT FLANGE |
90105-06349 |
from US $0.49 |
||
|
9017806026
|
9017806026
90178-06026 New Genuine Part |
90178-06026 |
US $1.43 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
