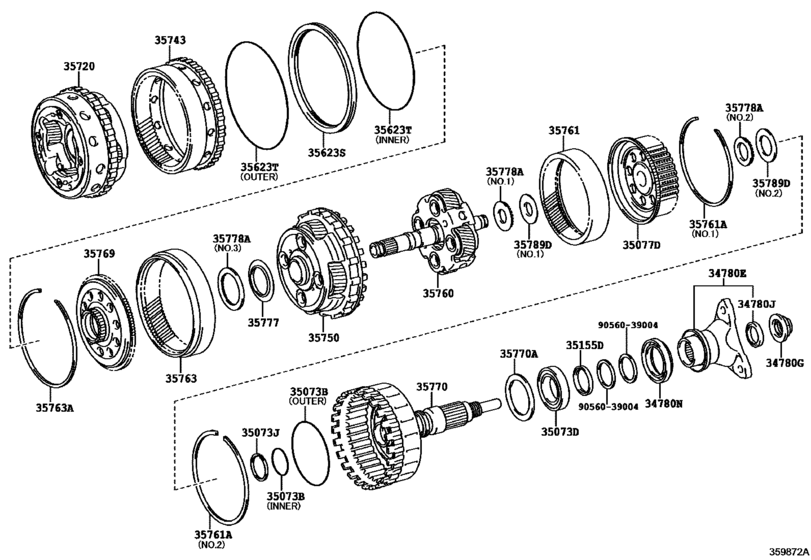

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34780E
|
34780E
34780-11010 Yoke Assy, Flange (For Automatic Transmission)[03.2017 -] URZ100 |
34780-11010 |
US $81.54 |
||
|
34780G
|
34780G
90179-22030 Nut (For Atm Frange Yoke)[03.2017 -] URZ100 |
90179-22030 |
US $2.80 |
||
|
34780J
|
34780J
90312-33001 Seal, Type V Oil (For Frange Yoke)[03.2017 -] URZ100 |
90312-33001 |
from US $5.38 |
||
|
34780N
|
34780N
90311-50038 Seal, Type T Oil (For Frange Yoke)[03.2017 -] URZ100 |
90311-50038 |
from US $10.93 |
||
|
35073B
|
35073B
90301-43010 Ring, O (For Output Shaft)[03.2017 -] URZ100 INNER |
90301-43010 |
US $2.18 |
||
|
35073B
|
35073B
90301-99223 Ring, O (For Output Shaft)[03.2017 -] URZ100 OUTER |
90301-99223 |
US $2.62 |
||
|
35073D
|
35073D
90363-42001 Bearing, Radial Ball (For Output Shaft Rear)[03.2017 -] URZ100 |
90363-42001 |
US $34.80 |
||
|
35073J
|
35073J
90520-38022 Ring, Hole Snap (For Output Shaft)[03.2017 -] URZ100 |
90520-38022 |
US $0.87 |
||
|
35077D
|
35077D
35077-11010 Flange Sub-Assy, Rr Planetary Ring Gear[03.2017 -] URZ100 |
35077-11010 |
US $110.66 |
||
|
35155D
|
35155D
35155-50080 Sleeve, Rear Cover[03.2017 -] URZ100 T=1.75 |
35155-50080 |
US $8.44 |
||
|
35155D
|
35155D
35155-50090 Sleeve, Rear Cover[03.2017 -] URZ100 T=1.80 |
35155-50090 |
US $8.44 |
||
|
35155D
|
35155D
35155-50100 Sleeve, Rear Cover[03.2017 -] URZ100 T=1.85 |
35155-50100 |
US $8.44 |
||
|
35155D
|
35155D
35155-50110 Sleeve, Rear Cover[03.2017 -] URZ100 T=1.90 |
35155-50110 |
US $8.44 |
||
|
35155D
|
35155D
35155-50120 Sleeve, Rear Cover[03.2017 -] URZ100 T=1.95 |
35155-50120 |
US $8.44 |
||
|
35155D
|
35155D
35155-50130 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.00 |
35155-50130 |
US $8.44 |
||
|
35155D
|
35155D
35155-50140 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.05 |
35155-50140 |
US $8.44 |
||
|
35155D
|
35155D
35155-50150 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.10 |
35155-50150 |
US $8.21 |
||
|
35155D
|
35155D
35155-50160 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.15 |
35155-50160 |
US $8.21 |
||
|
35155D
|
35155D
35155-50170 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.20 |
35155-50170 |
US $8.44 |
||
|
35155D
|
35155D
35155-50180 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.25 |
35155-50180 |
US $8.44 |
||
|
35155D
|
35155D
35155-50190 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.30 |
35155-50190 |
US $8.44 |
||
|
35155D
|
35155D
35155-50200 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.35 |
35155-50200 |
US $8.44 |
||
|
35155D
|
35155D
35155-50210 Sleeve, Rear Cover[03.2017 -] URZ100 T=2.40 |
35155-50210 |
US $8.44 |
||
|
35155D
|
35155D
35155-50230 Sleeve, Rear Cover[03.2017 -] URZ100 T=1.70 |
35155-50230 |
US $8.44 |
||
|
35623S
|
35623S
35623-11010 Piston,1St & Reverse Brake[03.2017 -] URZ100 |
35623-11010 |
US $18.78 |
||
|
35623T
|
35623T
90301-99224 Ring, O(For 1St & Reverse Brake Piston)[03.2017 -] URZ100 OUTER |
90301-99224 |
US $3.49 |
||
|
35623T
|
35623T
90301-99225 Ring, O(For 1St & Reverse Brake Piston)[03.2017 -] URZ100 INNER |
90301-99225 |
US $2.62 |
||
|
35720
|
35720
35720-11010 Gear Assy, Front Planetary[03.2017 -] URZ100 |
35720-11010 |
US $611.52 |
||
|
35743
|
35743
35743-11020 Gear, Front Planetary Ring[03.2017 -] URZ100 |
35743-11020 |
US $407.68 |
||
|
35750
|
35750
35750-11020
Gear Assy, Center Planetary
[03.2017 -] URZ100 |
35750-11020 |
— | ||
|
35760
|
35760
35760-11020 Gear Assy, Rear Planetary[03.2017 -] URZ100 |
35760-11020 |
US $480.48 |
||
|
35761
|
35761
35761-11020 Gear, Rear Planetary Ring[03.2017 -] URZ100 |
35761-11020 |
US $113.57 |
||
|
35761A
|
35761A
90521-99207 Ring, Hole Snap (For Rear Planetary Ring Gear)[03.2017 -] URZ100 NO.1 |
90521-99207 |
US $2.48 |
||
|
35761A
|
35761A
90521-99208 Ring, Hole Snap (For Rear Planetary Ring Gear)[03.2017 -] URZ100 NO.2 |
90521-99208 |
US $4.08 |
||
|
35763
|
35763
35763-11020
Gear, Center Planetary Ring
[03.2017 -] URZ100 |
35763-11020 |
— | ||
|
35763A
|
35763A
90521-99206 Ring, Snap(For Center Planetary Ring Gear)[03.2017 -] URZ100 |
90521-99206 |
US $3.20 |
||
|
35769
|
35769
35769-11010 Flange, Planetary Ring Gear, Ctr[03.2017 -] URZ100 |
35769-11010 |
US $32.32 |
||
|
35770
|
35770
35770-11010 Shaft Assy, Output[03.2017 -] URZ100 |
35770-11010 |
US $573.66 |
||
|
35770A
|
35770A
90374-58006 Bearing, Thrust (For Output Shaft)[03.2017 -] URZ100 |
90374-58006 |
US $26.21 |
||
|
35777
|
35777
35777-11010 Race, Thrust Bearing, No.7[03.2017 -] URZ100 |
35777-11010 |
US $9.32 |
||
|
35778A
|
35778A
90374-22011 Bearing, Thrust Needle Roller[03.2017 -] URZ100 NO.1 |
90374-22011 |
US $10.48 |
||
|
35778A
|
35778A
90374-30019 Bearing, Thrust Needle Roller[03.2017 -] URZ100 NO.2 |
90374-30019 |
US $16.02 |
||
|
35778A
|
35778A
90374-50003 Bearing, Thrust Needle Roller[03.2017 -] URZ100 NO.3 |
90374-50003 |
US $16.89 |
||
|
35789D
|
35789D
35789-11120 Race, Thrust Bearing (For Front Planetary Gear Rear)[03.2017 -] URZ100 NO.1 |
35789-11120 |
US $9.03 |
||
|
35789D
|
35789D
35789-11130 Race, Thrust Bearing (For Front Planetary Gear Rear)[03.2017 -] URZ100 NO.2 |
35789-11130 |
US $14.85 |
||
|
9056039004
|
9056039004
90560-39004 Spacer, No.1 (For Output Shaft Rear Bearing) |
90560-39004 |
from US $0.87 |
