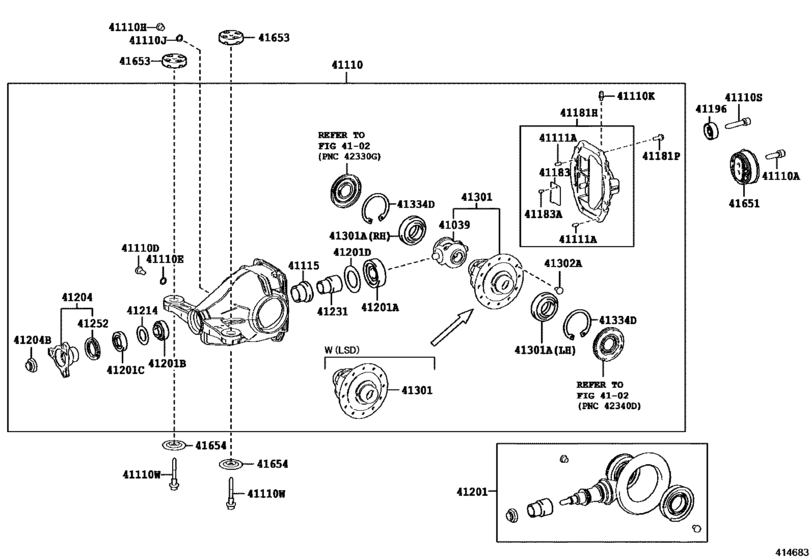

Rear Axle Housing & Differential ([03.2017 - ] (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41039
|
41039
41039-34121 Gear Kit, Differential, Rear[03.2017 -] GWZ100,URZ100 |
41039-34121 |
US $193.94 |
||
|
41110
|
41110
41110-11020 Carrier Assy, Differential, Rear[03.2017 -] URZ100 *FGR=47:16=2.937 |
41110-11020 |
US $2,446.08 |
||
|
41110
|
41110
41110-11040 Carrier Assy, Differential, Rear[03.2017 -] URZ100 *FGR=47:16=2.937,REAR DIFFERENTIAL-FD23AT 2.937 LSD |
41110-11040 |
US $3,698.24 |
||
|
41110A
|
41110A
90110-14007 Bolt, No.1 (For Rear Differential Carrier Set)[03.2017 -] GWZ100,URZ100 *14-2.0PX47.3-35 |
90110-14007 |
from US $1.63 |
||
|
41110D
|
41110D
90341-18035 Plug, No.1 (With Magnet)[03.2017 -] GWZ100,URZ100 |
90341-18035 |
from US $3.36 |
||
|
41110E
|
41110E
12157-10010 Gasket (For Drain Plug)[03.2017 -] GWZ100,URZ100 |
12157-10010 |
from US $0.72 |
||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [03.2017 -] GWZ100,URZ100 |
90341-18032 |
from US $3.76 |
||
|
41110J
|
41110J
12157-10010 Gasket (For Drain Plug)[03.2017 -] GWZ100,URZ100 |
12157-10010 |
from US $0.72 |
||
|
41110K
|
41110K
90930-03077 Plug, Breather (For Automatic Transmission Case)[03.2017 -] GWZ100,URZ100 |
90930-03077 |
US $8.06 |
||
|
41110S
|
41110S
90110-14009 Bolt, No.2 (For Rear Differential Carrier Set)[03.2017 -] GWZ100,URZ100 |
90110-14009 |
US $5.56 |
||
|
41110W
|
41110W
90119-12449 Bolt, No.4 (For Rear Differential Carrier Set)[03.2017 -] GWZ100,URZ100 |
90119-12449 |
US $6.45 |
||
|
41111A
|
41111A
90250-10017 Pin, Straight(For Clutch Housing Set)[03.2017 -] GWZ100,URZ100 |
90250-10017 |
from US $1.41 |
||
|
41115
|
41115
41115-11010 Ring, Differential Oil Storage[03.2017 -] GWZ100,URZ100 |
41115-11010 |
US $5.82 |
||
|
41181H
|
41181H
41108-11010 Cover, Rear Differential Carrier[03.2017 -] GWZ100,URZ100 |
41108-11010 |
US $163.07 |
||
|
41181P
|
41181P
90105-10417 Bolt (For Front Differential Carrier Cover Setting)[03.2017 -] GWZ100,URZ100 |
90105-10417 |
US $3.05 |
||
|
41183
|
41183
41183-11010 Deflector, Rear Differential Breather Plug Oil[03.2017 -] GWZ100,URZ100 |
41183-11010 |
US $3.93 |
||
|
41183A
|
41183A
91651-60614 Bolt[03.2017 -] GWZ100,URZ100 |
91651-60614 |
from US $1.16 |
||
|
41196
|
41196
41196-50010 Damper, Rear Differential Dynamic[03.2017 -] GWZ100,URZ100 |
41196-50010 |
US $20.44 |
||
|
41201
|
41201
41201-19815 Final Gear Kit, Differential, Rear[03.2017 -] URZ100 *FGR=47:16=2.937 |
41201-19815 |
US $690.14 |
||
|
41201A
|
41201A
90363-45029 Bearing (For Rear Drive Pinion Rear)[03.2017 -] GWZ100,URZ100 |
90363-45029 |
US $62.46 |
||
|
41201B
|
41201B
90363-40089 Bearing (For Rear Drive Pinion Front)[03.2017 -] GWZ100,URZ100 |
90363-40089 |
US $21.68 |
||
|
41201C
|
41201C
90311-51012 Seal, Oil (For Rear Differential Carrier)[03.2017 -] GWZ100,URZ100 |
90311-51012 |
US $12.19 |
||
|
41201D
|
41201D
90560-62001 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.82 |
90560-62001 |
US $4.80 |
||
|
41201D
|
41201D
90560-62002 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.84 |
90560-62002 |
US $4.80 |
||
|
41201D
|
41201D
90560-62003 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.86 |
90560-62003 |
US $4.80 |
||
|
41201D
|
41201D
90560-62004 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.88 |
90560-62004 |
US $4.80 |
||
|
41201D
|
41201D
90560-62005 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.90 |
90560-62005 |
US $4.80 |
||
|
41201D
|
41201D
90560-62006 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.92 |
90560-62006 |
US $4.80 |
||
|
41201D
|
41201D
90560-62007 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.94 |
90560-62007 |
US $4.80 |
||
|
41201D
|
41201D
90560-62008 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.96 |
90560-62008 |
US $4.80 |
||
|
41201D
|
41201D
90560-62009 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=1.98 |
90560-62009 |
US $4.80 |
||
|
41201D
|
41201D
90560-62010 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.00 |
90560-62010 |
US $4.80 |
||
|
41201D
|
41201D
90560-62011 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.02 |
90560-62011 |
US $4.80 |
||
|
41201D
|
41201D
90560-62012 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.04 |
90560-62012 |
US $4.80 |
||
|
41201D
|
41201D
90560-62013 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.06 |
90560-62013 |
US $4.80 |
||
|
41201D
|
41201D
90560-62014 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.08 |
90560-62014 |
US $4.80 |
||
|
41201D
|
41201D
90560-62015 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.10 |
90560-62015 |
US $4.80 |
||
|
41201D
|
41201D
90560-62016 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.12 |
90560-62016 |
US $4.80 |
||
|
41201D
|
41201D
90560-62017 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.14 |
90560-62017 |
US $5.68 |
||
|
41201D
|
41201D
90560-62018 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.16 |
90560-62018 |
US $5.68 |
||
|
41201D
|
41201D
90560-62019 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.18 |
90560-62019 |
US $5.68 |
||
|
41201D
|
41201D
90560-62020 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.20 |
90560-62020 |
US $5.68 |
||
|
41201D
|
41201D
90560-62021 Washer, Plate (For Rear Differential Drive Pinion)[03.2017 -] GWZ100,URZ100 T=2.22 |
90560-62021 |
US $5.68 |
||
|
41204
|
41204
41204-11020 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[03.2017 -] GWZ100,URZ100 |
41204-11020 |
US $57.08 |
||
|
41204B
|
41204B
90179-26010 Nut (For Rear Drive Pinion)[03.2017 -] GWZ100,URZ100 OD=48.0 |
90179-26010 |
US $3.93 |
||
|
41214
|
41214
41214-11020 Slinger, Rear Differential Drive Pinion Oil[03.2017 -] GWZ100,URZ100 |
41214-11020 |
US $2.62 |
||
|
41231
|
41231
41231-11020 Spacer, Rear Differential Drive Pinion Bearing[03.2017 -] GWZ100,URZ100 |
41231-11020 |
US $10.48 |
||
|
41252
|
41252
41252-11020 Deflector, Dust (For Rear Differential)[03.2017 -] GWZ100,URZ100 |
41252-11020 |
US $5.10 |
||
|
41301
|
41301
41301-11010 Case Sub-Assy, Rear Differential[03.2017 -] URZ100 |
41301-11010 |
US $442.62 |
||
|
41301
|
41301
41301-11030 Case Sub-Assy, Rear Differential[03.2017 -] URZ100 REAR DIFFERENTIAL-FD23AT 2.937 LSD |
41301-11030 |
US $2,504.17 |
||
|
41301A
|
41301A
90366-60027
Bearing(For Rear Differential Case)
[03.2017 -] GWZ100,URZ100 RH |
90366-60027 |
— | ||
|
41301A
|
41301A
90366-60030
Bearing(For Rear Differential Case)
[03.2017 -] GWZ100,URZ100 LH |
90366-60030 |
— | ||
|
41302A
|
41302A
90105-12219 Bolt(For Rear Differential Case)[03.2017 -] GWZ100,URZ100 |
90105-12219 |
US $2.33 |
||
|
41334D
|
41334D
90521-99149 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.52 |
90521-99149 |
US $4.80 |
||
|
41334D
|
41334D
90521-99150 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.54 |
90521-99150 |
US $4.80 |
||
|
41334D
|
41334D
90521-99151 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.56 |
90521-99151 |
US $4.80 |
||
|
41334D
|
41334D
90521-99152 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.58 |
90521-99152 |
US $4.80 |
||
|
41334D
|
41334D
90521-99153 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.60 |
90521-99153 |
US $4.80 |
||
|
41334D
|
41334D
90521-99154 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.62 |
90521-99154 |
US $4.80 |
||
|
41334D
|
41334D
90521-99155 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.64 |
90521-99155 |
US $4.80 |
||
|
41334D
|
41334D
90521-99156 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.66 |
90521-99156 |
US $4.80 |
||
|
41334D
|
41334D
90521-99157 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.68 |
90521-99157 |
US $4.80 |
||
|
41334D
|
41334D
90521-99158 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.70 |
90521-99158 |
US $4.80 |
||
|
41334D
|
41334D
90521-99159 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.72 |
90521-99159 |
US $4.80 |
||
|
41334D
|
41334D
90521-99160 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.74 |
90521-99160 |
US $4.80 |
||
|
41334D
|
41334D
90521-99161 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.76 |
90521-99161 |
US $4.80 |
||
|
41334D
|
41334D
90521-99162 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.78 |
90521-99162 |
US $4.80 |
||
|
41334D
|
41334D
90521-99163 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.80 |
90521-99163 |
US $4.80 |
||
|
41334D
|
41334D
90521-99164 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.82 |
90521-99164 |
US $4.80 |
||
|
41334D
|
41334D
90521-99165 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.84 |
90521-99165 |
US $4.80 |
||
|
41334D
|
41334D
90521-99166 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.86 |
90521-99166 |
US $4.80 |
||
|
41334D
|
41334D
90521-99167 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.88 |
90521-99167 |
US $4.80 |
||
|
41334D
|
41334D
90521-99168 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.90 |
90521-99168 |
US $4.80 |
||
|
41334D
|
41334D
90521-99169 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.92 |
90521-99169 |
US $4.80 |
||
|
41334D
|
41334D
90521-99170 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.94 |
90521-99170 |
US $4.80 |
||
|
41334D
|
41334D
90521-99171 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.96 |
90521-99171 |
US $4.80 |
||
|
41334D
|
41334D
90521-99172 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=3.98 |
90521-99172 |
US $4.80 |
||
|
41334D
|
41334D
90521-99173 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.00 |
90521-99173 |
US $4.80 |
||
|
41334D
|
41334D
90521-99174 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.02 |
90521-99174 |
US $4.80 |
||
|
41334D
|
41334D
90521-99175 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.04 |
90521-99175 |
US $4.80 |
||
|
41334D
|
41334D
90521-99176 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.06 |
90521-99176 |
US $4.80 |
||
|
41334D
|
41334D
90521-99177 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.08 |
90521-99177 |
US $4.80 |
||
|
41334D
|
41334D
90521-99178 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.10 |
90521-99178 |
US $4.80 |
||
|
41334D
|
41334D
90521-99179 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.12 |
90521-99179 |
US $4.80 |
||
|
41334D
|
41334D
90521-99180 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.14 |
90521-99180 |
US $4.80 |
||
|
41334D
|
41334D
90521-99181 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.16 |
90521-99181 |
US $4.80 |
||
|
41334D
|
41334D
90521-99182 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.18 |
90521-99182 |
US $4.80 |
||
|
41334D
|
41334D
90521-99183 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.20 |
90521-99183 |
US $4.80 |
||
|
41334D
|
41334D
90521-99184 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.22 |
90521-99184 |
US $4.80 |
||
|
41334D
|
41334D
90521-99185 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.24 |
90521-99185 |
US $5.68 |
||
|
41334D
|
41334D
90521-99186 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.26 |
90521-99186 |
US $5.68 |
||
|
41334D
|
41334D
90521-99187 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[03.2017 -] GWZ100,URZ100 T=4.28 |
90521-99187 |
US $5.68 |
||
|
41651
|
41651
41651-11020 Cushion, Rear Differential Mount, No.1[03.2017 -] GWZ100,URZ100 |
41651-11020 |
from US $55.10 |
||
|
41653
|
41653
41653-11010 Stopper, Rear Differential Mount, Upper[03.2017 -] GWZ100,URZ100 H=19.7 |
41653-11010 |
US $12.23 |
||
|
41654
|
41654
41654-11010 Stopper, Rear Differential Mount, Lower[03.2017 -] GWZ100,URZ100 |
41654-11010 |
US $10.83 |
