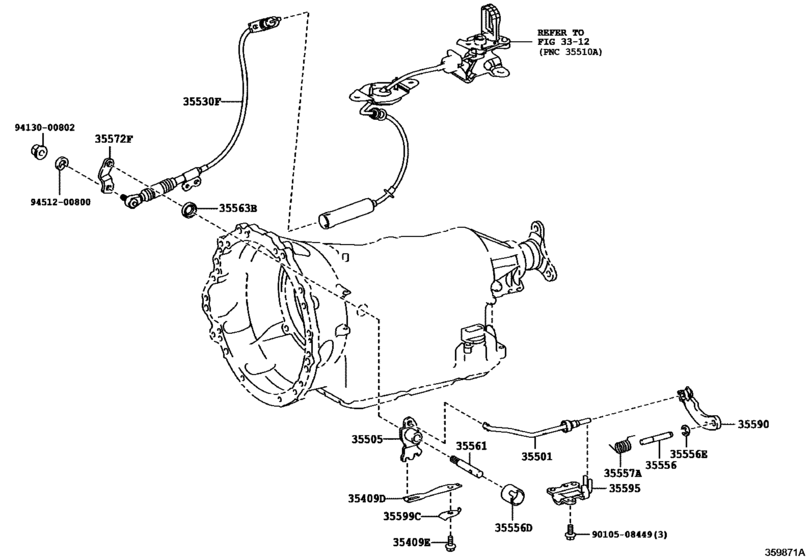

Throttle Link & Valve Lever (Atm) ([03.2017 - ] AGA0E (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35409D
|
35409D
35409-11020 Spring Sub-Assy, Manual Detent[03.2017 -] URZ100 |
35409-11020 |
US $7.28 |
||
|
35409E
|
35409E
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover)[03.2017 -] URZ100 |
91551-80820 |
from US $0.76 |
||
|
35501
|
35501
35501-11020 Rod Sub-Assy, Parking Lock[03.2017 -] URZ100 |
35501-11020 |
US $22.42 |
||
|
35505
|
35505
35505-11010 Lever Sub-Assy, Manual Valve[03.2017 -] URZ100 |
35505-11010 |
US $17.91 |
||
|
35530F
|
35530F
35530-11020 Rod Assy, Throttle Link Connecting[03.2017 -] URZ100 |
35530-11020 |
US $10.77 |
||
|
35556
|
35556
35556-60020 Shaft, Parking Lock Pawl[03.2017 -] URZ100 |
35556-60020 |
from US $5.10 |
||
|
35556D
|
35556D
90560-20025 Spacer (For Manual Valve Lever)[03.2017 -] URZ100 |
90560-20025 |
from US $1.62 |
||
|
35556E
|
35556E
90523-08021 Ring, E (For Parking Lock Pawl Shaft)[03.2017 -] URZ100 |
90523-08021 |
US $1.46 |
||
|
35557A
|
35557A
90949-03147 Spring, Torsion (For Parking Lock Pawl Shaft)[03.2017 -] URZ100 |
90949-03147 |
US $1.75 |
||
|
35561
|
35561
35561-11010 Shaft, Manual Valve Lever[03.2017 -] URZ100 |
35561-11010 |
US $6.84 |
||
|
35563B
|
35563B
35563-11010 Seal, Shift Control Actuator[03.2017 -] URZ100 |
35563-11010 |
US $1.16 |
||
|
35572F
|
35572F
35572-11020 Lever, Transmission, Outer[03.2017 -] URZ100 |
35572-11020 |
US $3.49 |
||
|
35590
|
35590
35590-11010 Pawl Assy, Parking Lock[03.2017 -] URZ100 |
35590-11010 |
US $60.72 |
||
|
35595
|
35595
35595-11010 Bracket, Parking Lock Pawl[03.2017 -] URZ100 |
35595-11010 |
US $9.46 |
||
|
35599C
|
35599C
35599-11010 Cover, Manual Detent Spring[03.2017 -] URZ100 |
35599-11010 |
US $3.20 |
||
|
9010508449
|
9010508449
90105-08449
New Genuine Part
|
90105-08449 |
— | ||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
