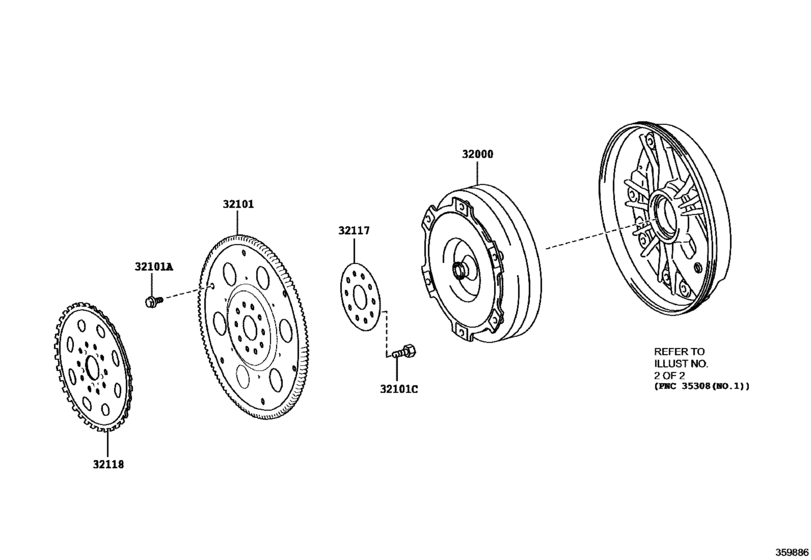

Torque Converter, Front Oil Pump & Chain (Atm) ([03.2017 - ] AGA0E (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-11010
Converter Assy, Torque
[03.2017 -] URZ100 |
32000-11010 |
— | ||
|
32101
|
32101
32101-24020 Gear Sub-Assy, Drive Plate & Ring[03.2017 -] URZ100 |
32101-24020 |
US $180.54 |
||
|
32101A
|
32101A
90105-10340 Bolt(For Drive Plate & Torque Converter Setting)[03.2017 -] URZ100 *10-1.5PX12.8-9.8,SILVER WHITE |
90105-10340 |
US $1.97 |
||
|
32101A
|
32101A
90105-10547 Bolt(For Drive Plate & Torque Converter Setting)[03.2017 -] URZ100 *10-1.5PX12.8-9.7,BLACK |
90105-10547 |
US $2.87 |
||
|
32101C
|
32101C
90910-02129 Bolt, Flywheel Setting[03.2017 -] URZ100 *10-1.25PX23-16,(J) |
90910-02129 |
from US $1.81 |
||
|
32101C
|
32101C
90910-A2002
Bolt, Hexagon(For Drive Plate Setting)
[03.2017 -] URZ100 *10-1.25PX23-16,(L) |
90910-A2002 |
— | ||
|
32117
|
32117
32117-34010 Spacer, Drive Plate, Rear[03.2017 -] URZ100 |
32117-34010 |
US $12.52 |
||
|
32118
|
32118
32118-24010 Rotor, Crankshaft Angle Sensor[03.2017 -] URZ100 |
32118-24010 |
US $33.34 |
