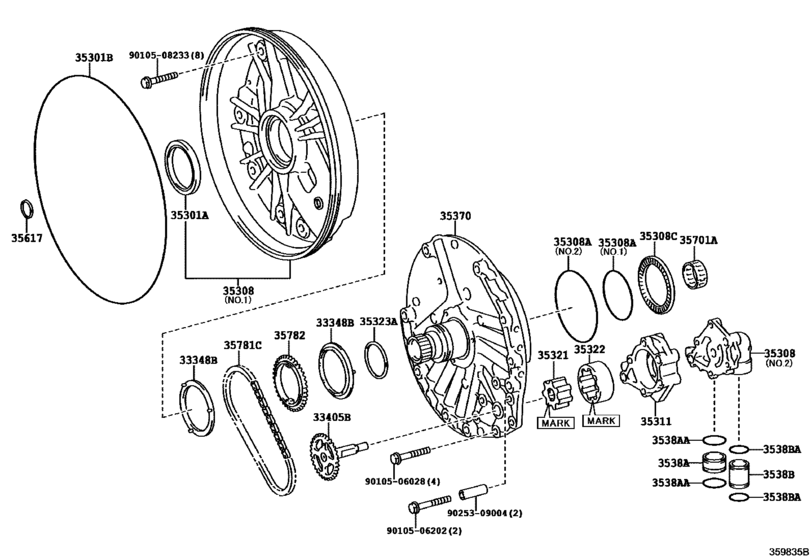

Torque Converter, Front Oil Pump & Chain (Atm) ([03.2017 - ] AGA0E (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3538A
|
3538A
3538A-11010
Pipe, Oil Pump Suction
[03.2017 -] URZ100 |
3538A-11010 |
— | ||
|
3538AA
|
3538AA
90301-25010 Ring, O(For Oil Pump Suction Pipe)[03.2017 -] URZ100 |
90301-25010 |
US $1.22 |
||
|
3538B
|
3538B
3538B-11010
Pipe, Oil Pump Delivery
[03.2017 -] URZ100 |
3538B-11010 |
— | ||
|
3538BA
|
3538BA
90301-18016 Ring, O(For Oil Pump Delivery Pipe)[03.2017 -] URZ100 |
90301-18016 |
US $1.75 |
||
|
33348B
|
33348B
33348-11020 Washer, Gear Thrust[03.2017 -] URZ100 |
33348-11020 |
US $2.62 |
||
|
33405B
|
33405B
33405-11020 Shaft Sub-Assy, Oil Pump Drive[03.2017 -] URZ100 |
33405-11020 |
US $10.92 |
||
|
35301A
|
35301A
90311-54007 Seal, Oil (For Front Oil Pump)[03.2017 -] URZ100 |
90311-54007 |
US $10.93 |
||
|
35301B
|
35301B
90301-99228 Ring, O (For Front Oil Pump Body)[03.2017 -] URZ100 |
90301-99228 |
from US $5.91 |
||
|
35308
|
35308
35308-11020
Cover Sub-Assy, Front Oil Pump
[03.2017 -] URZ100 NO.2 |
35308-11020 |
— | ||
|
35308
|
35308
35308-11030 Cover Sub-Assy, Front Oil Pump[03.2017 -] URZ100 NO.1 |
35308-11030 |
US $200.93 |
||
|
35308A
|
35308A
90301-60005 Seal, Oil (For Front Oil Pump Cover)[03.2017 -] URZ100 NO.1 |
90301-60005 |
US $2.18 |
||
|
35308A
|
35308A
90301-87004 Seal, Oil (For Front Oil Pump Cover)[03.2017 -] URZ100 NO.2 |
90301-87004 |
US $2.62 |
||
|
35308C
|
35308C
90374-57008 Race, Thrust Bearing (For Front Oil Pump Cover)[03.2017 -] URZ100 OD=75.0 |
90374-57008 |
US $17.47 |
||
|
35311
|
35311
35311-11020
Body, Front Oil Pump
[03.2017 -] URZ100 |
35311-11020 |
— | ||
|
35321
|
35321
35321-11040 Gear, Front Oil Pump Drive[03.2017 -] URZ100 T=19.475-19.480,MARK A |
35321-11040 |
US $40.77 |
||
|
35321
|
35321
35321-11050 Gear, Front Oil Pump Drive[03.2017 -] URZ100 T=19.475-19.480,MARK B |
35321-11050 |
US $40.77 |
||
|
35322
|
35322
35322-11040 Gear, Front Oil Pump Driven[03.2017 -] URZ100 T=19.475-19.480,MARK A |
35322-11040 |
US $40.77 |
||
|
35322
|
35322
35322-11050 Gear, Front Oil Pump Driven[03.2017 -] URZ100 T=19.481-19.486,MARK B |
35322-11050 |
US $40.77 |
||
|
35323A
|
35323A
35323-11010
Ring(For Oil Seal)
[03.2017 -] URZ100 |
35323-11010 |
— | ||
|
35370
|
35370
35370-11010 Shaft Assy, Stator[03.2017 -] URZ100 |
35370-11010 |
US $200.93 |
||
|
35617
|
35617
35617-11030 Ring, Clutch Drum Oil Seal[03.2017 -] URZ100 |
35617-11030 |
US $2.18 |
||
|
35701A
|
35701A
90364-30016
Bearing, Thrust (For Input Shaft Front)
[03.2017 -] URZ100 |
90364-30016 |
— | ||
|
35781C
|
35781C
35781-11010
Chain, Transmission Drive
[03.2017 -] URZ100 |
35781-11010 |
— | ||
|
35782
|
35782
35782-11020
Sprocket, Drive
[03.2017 -] URZ100 |
35782-11020 |
— | ||
|
9010506028
|
9010506028
90105-06028 New Genuine Part |
90105-06028 |
US $1.02 |
||
|
9010506202
|
9010506202
90105-06202 Bolt(For Cylinder Head Cover) |
90105-06202 |
from US $0.82 |
||
|
9010508233
|
9010508233
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting) |
90105-08233 |
US $0.79 |
