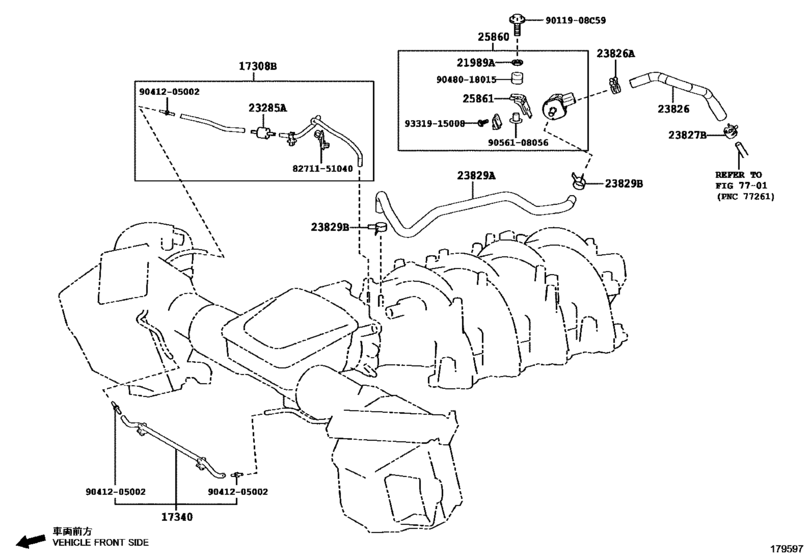

Vacuum Piping ([03.2017 - ] (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17308B
|
17308B
17308-38020 Hose Sub-Assy, Vacuum[03.2017 -] 2URGSE..URZ100 |
17308-38020 |
from US $29.26 |
||
|
17340
|
17340
17340-38040
Hose Assy, Vacuum Switching Valve
[03.2017 -] 2URGSE..URZ100 |
17340-38040 |
— | ||
|
21989A
|
21989A
21989-38010 Insulator, Plate[03.2017 -] 2URGSE..URZ100 |
21989-38010 |
US $4.95 |
||
|
23285A
|
23285A
90917-10065 Valve, Check[03.2017 -] 2URGSE..URZ100 |
90917-10065 |
from US $13.08 |
||
|
23826
|
23826
23826-38040 Hose, Fuel Vapor Feed, No.1[03.2017 -] 2URGSE..URZ100 |
23826-38040 |
US $11.65 |
||
|
23826A
|
23826A
96132-51300 Clip(For Ventilation Hose No.2)[03.2017 -] 2URGSE..URZ100 |
96132-51300 |
from US $1.44 |
||
|
23827B
|
23827B
96136-41801 Clip(For Fuel Vapor Feed Hose, No.2)[03.2017 -] 2URGSE..URZ100 |
96136-41801 |
from US $2.87 |
||
|
23829A
|
23829A
23829-38070 Hose, Fuel Vapor Feed[03.2017 -] 2URGSE..URZ100 |
23829-38070 |
US $23.67 |
||
|
23829B
|
23829B
96132-51300 Clip(For Ventilation Hose No.2)[03.2017 -] 2URGSE..URZ100 |
96132-51300 |
from US $1.44 |
||
|
25860
|
25860
25860-38030 Valve Assy, Vacuum Switching, No.1[03.2017 -] 2URGSE..URZ100 |
25860-38030 |
US $58.46 |
||
|
25861
|
25861
25861-38010 Bracket, Vacuum Switching Valve[03.2017 -] 2URGSE..URZ100 |
25861-38010 |
US $3.06 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.43 |
||
|
8271151040
|
8271151040
82711-51040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-51040 |
US $3.23 |
||
|
9041205002
|
9041205002
90412-05002 Way, 2(For Fuel Expansion Tank) |
90412-05002 |
US $4.30 |
||
|
9048018015
|
9048018015
90480-18015
New Genuine Part
|
90480-18015 |
— | ||
|
9056108056
|
9056108056
90561-08056 New Genuine Part |
90561-08056 |
US $1.16 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
