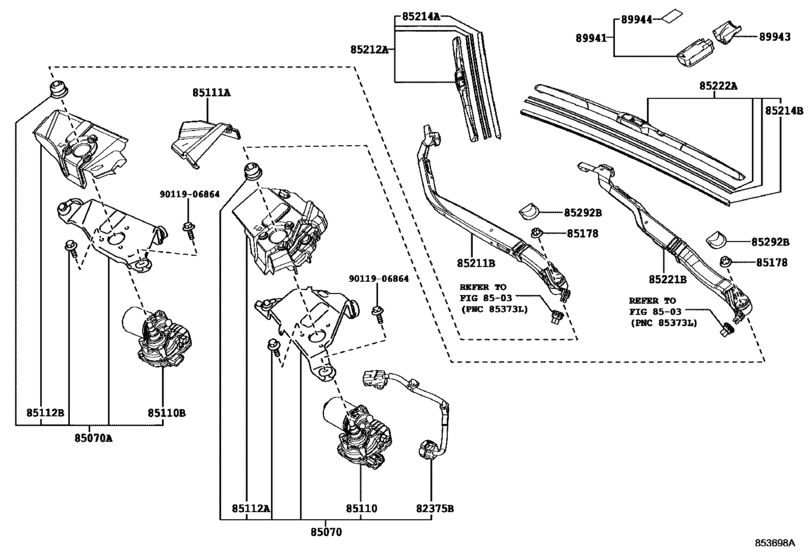

Windshield Wiper ([03.2017 - ] (1703- )LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-11020
Wire, Wiper Motor
[03.2017 -] GWZ100,URZ100..LHD |
82375-11020 |
— | ||
|
85070
|
85070
85070-11030
Motor & Bracket Assy, Front Wiper
[03.2017 -] GWZ100,URZ100..LHD |
85070-11030 |
— | ||
|
85070A
|
85070A
85070-11040
Motor & Bracket Assy, Front Wiper, No.2
[03.2017 -] GWZ100,URZ100..LHD |
85070-11040 |
— | ||
|
85110
|
85110
85110-11050
Motor Assy, Windshield Wiper
[03.2017 -] GWZ100,URZ100..LHD |
85110-11050 |
— | ||
|
85110B
|
85110B
85110-11060
Motor Assy, Windshield Wiper, No.2
[03.2017 -] GWZ100,URZ100..LHD |
85110-11060 |
— | ||
|
85111A
|
85111A
85111-11040
Cover, Front Wiper Motor
[03.2017 -] GWZ100,URZ100..LHD |
85111-11040 |
— | ||
|
85112A
|
85112A
85112-11050
Cover, Windshield Wiper Shaft, No.1
[03.2017 -] GWZ100,URZ100..LHD |
85112-11050 |
— | ||
|
85112B
|
85112B
85112-11060
Cover, Windshield Wiper Shaft, No.2
[03.2017 -] GWZ100,URZ100..LHD |
85112-11060 |
— | ||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[03.2017 -] GWZ100,URZ100 |
90182-10006 |
US $1.43 |
||
|
85211B
|
85211B
85211-11030
Arm, Front Wiper, Rh
[03.2017 -] GWZ100,URZ100..LHD |
85211-11030 |
— | ||
|
85212A
|
85212A
85212-11030
Blade, Fr Wiper, Rh
[03.2017 -] GWZ100,URZ100..LHD |
85212-11030 |
— | ||
|
85214A
|
85214A
85214-33180 Rubber, Wiper, Lh[03.2017 -] GWZ100,URZ100..LHD |
85214-33180 |
from US $8.12 |
||
|
85214B
|
85214B
85214-11010 Rubber, Wiper, Rh[03.2017 -] GWZ100,URZ100..LHD |
85214-11010 |
from US $16.13 |
||
|
85221B
|
85221B
85221-11040
Arm, Front Wiper, Lh
[03.2017 -] GWZ100,URZ100..LHD |
85221-11040 |
— | ||
|
85222A
|
85222A
85222-11040
Blade, Fr Wiper, Lh
[03.2017 -] GWZ100,URZ100..LHD |
85222-11040 |
— | ||
|
85292B
|
85292B
85292-11010 Cap, Front Wiper Arm Head[03.2017 -] GWZ100,URZ100 |
85292-11010 |
from US $2.62 |
||
|
89941
|
89941
89941-11010 Sensor, Rain[03.2017 -] GWZ100,URZ100 |
89941-11010 |
US $167.44 |
||
|
89943
|
89943
89943-11010 Cover, Rain Sensor[03.2017 -] GWZ100,URZ100 |
89943-11010 |
US $3.93 |
||
|
89944
|
89944
89944-48010 Tape, Rain Sensor[03.2017 -] GWZ100,URZ100 |
89944-48010 |
from US $1.82 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
