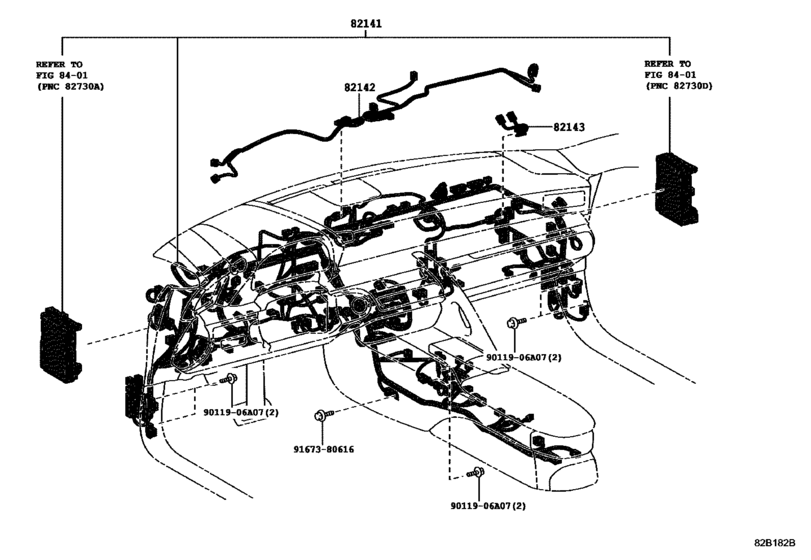

Wiring & Clamp ([03.2017 - ] INSTRUMENT PANEL (1703- )LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-11590
Wire, Instrument Panel
[03.2017 -] URZ100..LHD |
82141-11590 |
— | ||
|
82141
|
82141
82141-11600
Wire, Instrument Panel
[03.2017 -] URZ100..LHD SPORT PLUS |
82141-11600 |
— | ||
|
82141
|
82141
82141-11680
Wire, Instrument Panel
[03.2017 -] URZ100..GEN PHILIPPINE SPEC; URZ100..GEN MIDDLE & SOUTH AMERICA SPEC; URZ100..GEN COSTA RICA & PANAMA SPEC |
82141-11680 |
— | ||
|
82141
|
82141
82141-11690
Wire, Instrument Panel
[03.2017 -] URZ100..GEN PHILIPPINE SPEC&SPORT PLUS; URZ100..GEN MIDDLE & SOUTH AMERICA SPEC&SPORT PLUS; URZ100..GEN COSTA RICA & PANAMA SPEC&SPORT PLUS |
82141-11690 |
— | ||
|
82142
|
82142
82142-11010
Wire, Instrument Panel, No.2
[03.2017 -] GWZ100,URZ100..LHD |
82142-11010 |
— | ||
|
82143
|
82143
82140-11010 Wire, Instrument Panel, No.3[03.2017 -] GWZ100,URZ100 |
82140-11010 |
US $7.28 |
||
|
9011906A07
|
9011906A07
90119-06A07 New Genuine Part |
90119-06A07 |
US $1.08 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.63 |
