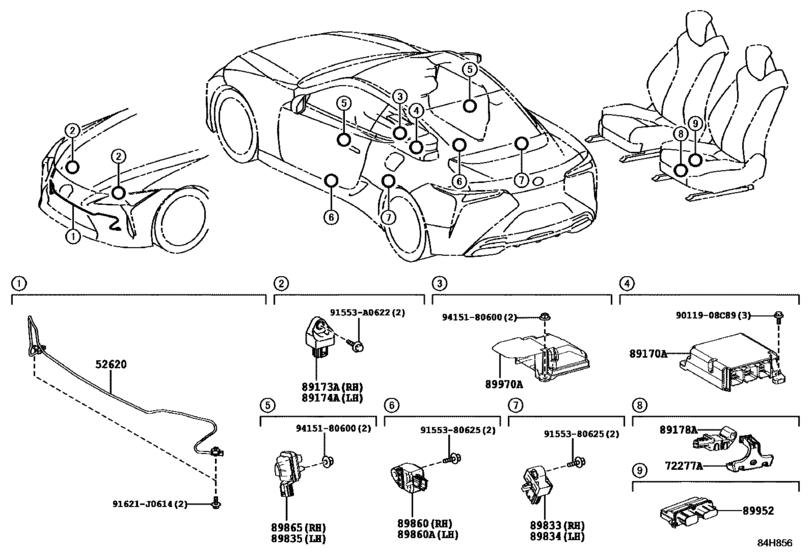

Air Bag ([01.2017 - ] (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52620
|
52620
52620-11010
Chamber Assy, Pedestrian Detection
[01.2017 -] GWZ100,URZ100 |
52620-11010 |
— | ||
|
72277A
|
72277A
72277-47050
Protector, Seat Slide Position Sensor
[01.2017 -] GWZ100,URZ100 |
72277-47050 |
— | ||
|
89170A
|
89170A
89170-11020
Computer Assy, Air Bag
[01.2017 -] GWZ100,URZ100 |
89170-11020 |
— | ||
|
89170A
|
89170A
89170-11030
Computer Assy, Air Bag
[01.2017 -] GWZ100,URZ100 KOREA SPEC |
89170-11030 |
— | ||
|
89173A
|
89173A
89173-19505 Sensor, Air Bag, Front Rh[01.2017 -] GWZ100,URZ100 |
89173-19505 |
from US $109.99 |
||
|
89174A
|
89174A
89173-19505 Sensor, Air Bag, Front Rh[01.2017 -] GWZ100,URZ100 |
89173-19505 |
from US $109.99 |
||
|
89178A
|
89178A
89178-33050 Sensor, Seat Position Air Bag[01.2017 -] GWZ100,URZ100 |
89178-33050 |
from US $33.83 |
||
|
89833
|
89833
89831-28030 Sensor, Side Air Bag, Rh, No.1[01.2017 -] GWZ100,URZ100 |
89831-28030 |
US $134.48 |
||
|
89834
|
89834
89831-28030 Sensor, Side Air Bag, Rh, No.1[01.2017 -] GWZ100,URZ100 |
89831-28030 |
US $134.48 |
||
|
89835
|
89835
8983A-33010 Sensor, Door Side Air Bag, Lh[01.2017 -] GWZ100,URZ100 |
8983A-33010 |
US $110.66 |
||
|
89860
|
89860
89831-11010 Sensor Assy, Side Air Bag, Rh[01.2017 -] GWZ100,URZ100 |
89831-11010 |
US $110.66 |
||
|
89860A
|
89860A
89831-11010 Sensor Assy, Side Air Bag, Rh[01.2017 -] GWZ100,URZ100 |
89831-11010 |
US $110.66 |
||
|
89865
|
89865
8983A-33010 Sensor, Door Side Air Bag, Lh[01.2017 -] GWZ100,URZ100 |
8983A-33010 |
US $110.66 |
||
|
89952
|
89952
89952-11010
Computer, Occupant Detection
[01.2017 -] GWZ100,URZ100; GWZ100,URZ100 KOREA SPEC |
89952-11010 |
— | ||
|
89970A
|
89970A
89970-11010 Computer Assy, Pedestrian Detection[01.2017 -] GWZ100,URZ100 |
89970-11010 |
US $235.28 |
||
|
91553A0622
|
91553A0622
91553-A0622 New Genuine Part |
91553-A0622 |
US $1.08 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
9011908C89
|
9011908C89
90119-08C89 BOLT WWASHER |
90119-08C89 |
from US $0.78 |
||
|
9155380625
|
9155380625
91553-80625 New Genuine Part |
91553-80625 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
