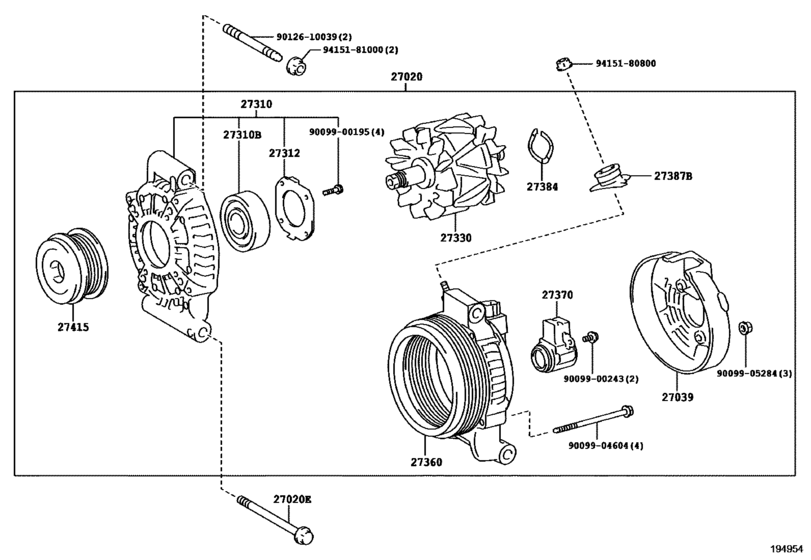

Alternator ([03.2017 - ] 12V 180A (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-38170 Alternator Assy[03.2017 -] 2URGSE..URZ100 12V 180A |
27060-38170 |
US $1,514.24 |
||
|
27020E
|
27020E
90105-10557 Bolt(For Alternator)[03.2017 -] 2URGSE..URZ100 |
90105-10557 |
US $3.20 |
||
|
27039
|
27039
27039-38150
Cover, Alternator Rear End
[03.2017 -] 2URGSE..URZ100 |
27039-38150 |
— | ||
|
27310
|
27310
27310-38250
Frame Assy, Drive End, Alternator
[03.2017 -] 2URGSE..URZ100 |
27310-38250 |
— | ||
|
27310B
|
27310B
90099-10226 Bearing(For Alternator Drive End Frame)[03.2017 -] 2URGSE..URZ100 |
90099-10226 |
US $10.85 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[03.2017 -] 2URGSE..URZ100 |
27312-42010 |
— | ||
|
27330
|
27330
27330-38140
Rotor Assy, Alternator
[03.2017 -] 2URGSE..URZ100 |
27330-38140 |
— | ||
|
27360
|
27360
27360-38250
Coil Assy, Alternator
[03.2017 -] 2URGSE..URZ100 |
27360-38250 |
— | ||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[03.2017 -] 2URGSE..URZ100 |
27370-58460 |
from US $14.61 |
||
|
27384
|
27384
27384-38130
Washer
[03.2017 -] 2URGSE..URZ100 |
27384-38130 |
— | ||
|
27387B
|
27387B
27387-38130
Insulator, Terminal
[03.2017 -] 2URGSE..URZ100 |
27387-38130 |
— | ||
|
27415
|
27415
27415-38010 Pulley, Alternator W/clutch[03.2017 -] 2URGSE..URZ100 |
27415-38010 |
US $74.26 |
||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009904604
|
9009904604
90099-04604
New Genuine Part
|
90099-04604 |
— | ||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9012610039
|
9012610039
90126-10039 New Genuine Part |
90126-10039 |
US $5.39 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
