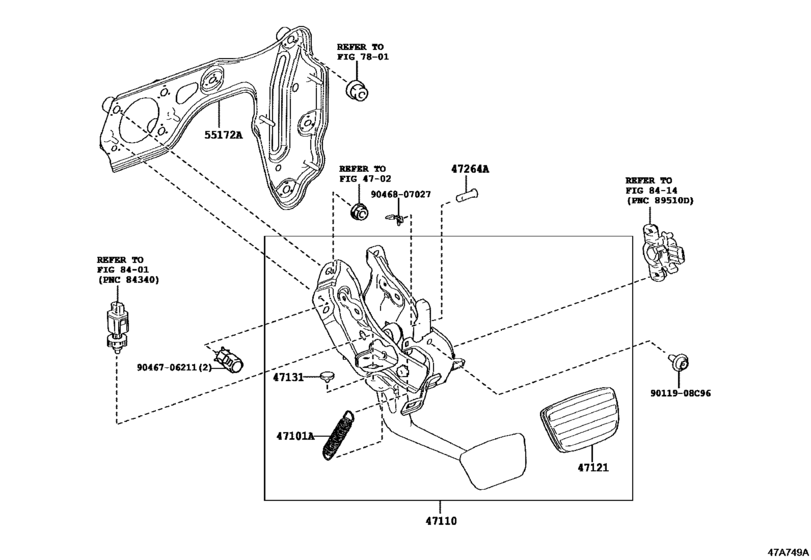

Brake Pedal & Bracket ([01.2017 - ] (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101A
|
47101A
90507-14054 Spring(For Brake Pedal Return)[01.2017 -] GWZ100,URZ100 |
90507-14054 |
US $1.18 |
||
|
47110
|
47110
47110-11010
Support Assy, Brake Pedal
[01.2017 -] GWZ100,URZ100 |
47110-11010 |
— | ||
|
47121
|
47121
47121-11010 Pad, Brake Pedal[01.2017 -] GWZ100,URZ100 |
47121-11010 |
US $67.20 |
||
|
47131
|
47131
90541-06036 Cushion, No.1(For Clutch Pedal)[01.2017 -] GWZ100,URZ100 |
90541-06036 |
from US $0.87 |
||
| replacement | |||||
|
47131
|
47131
90541060361
CUSHION
[01.2017 -] GWZ100,URZ100 |
90541060361 |
— | ||
|
47264A
|
47264A
90240-08082 Pin(For Push Rod)[01.2017 -] GWZ100,URZ100 |
90240-08082 |
US $1.60 |
||
|
55172A
|
55172A
55172-11010
Base, Brake Pedal Support
[01.2017 -] GWZ100,URZ100 |
55172-11010 |
— | ||
|
9011908C96
|
9011908C96
90119-08C96 New Genuine Part |
90119-08C96 |
US $1.43 |
||
|
9046706211
|
9046706211
90467-06211 New Genuine Part |
90467-06211 |
US $1.43 |
||
|
9046807027
|
9046807027
90468-07027 Clip(For Push Rod Clevis Pin) |
90468-07027 |
from US $0.67 |
||
