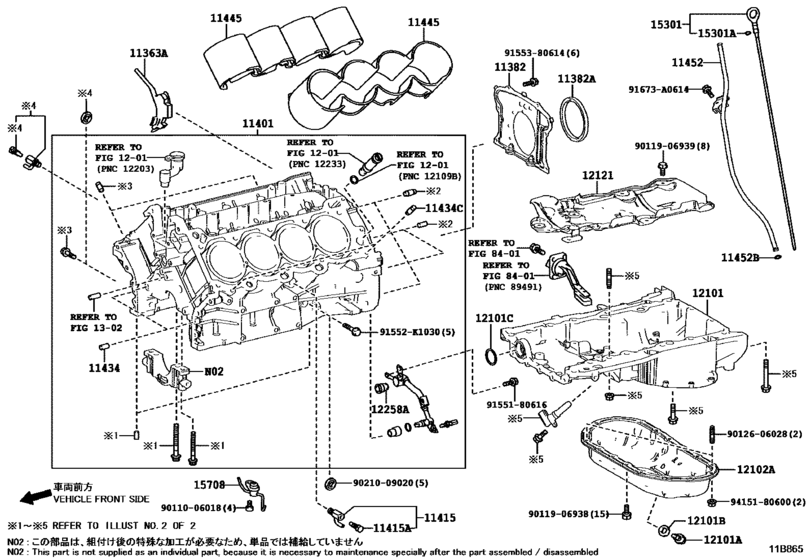

Cylinder Block ([03.2017 - ] (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11363A
|
11363A
11363-38020 Cover, Flywheel Housing Side[03.2017 -] 2URGSE..URZ100 |
11363-38020 |
US $9.76 |
||
|
11382
|
11382
11381-38020 Retainer, Engine Rear Oil Seal[03.2017 -] 2URGSE..URZ100 |
11381-38020 |
from US $41.59 |
||
|
11382A
|
11382A
90311-95013 Seal, Engine Rear Oil[03.2017 -] 2URGSE..URZ100 |
90311-95013 |
from US $25.37 |
||
|
11401
|
11401
11401-80832 Block Sub-Assy, Cylinder[03.2017 -] 2URGSE..URZ100 |
11401-80832 |
US $3,989.44 |
||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[03.2017 -] 2URGSE..URZ100 |
90910-09129 |
from US $6.63 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[03.2017 -] 2URGSE..URZ100 |
90910-09087 |
from US $2.95 |
||
|
11434
|
11434
90250-04097 Pin, Straight(For Camshaft Housing Rh)[03.2017 -] 2URGSE..URZ100 |
90250-04097 |
US $0.90 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[03.2017 -] 2URGSE..URZ100 L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11445
|
11445
11445-38010 Spacer, Cylinder Block Water Jacket[03.2017 -] 2URGSE..URZ100 |
11445-38010 |
from US $15.31 |
||
|
11452
|
11452
11452-38130 Guide, Oil Level Gage[03.2017 -] 2URGSE..URZ100 |
11452-38130 |
US $21.11 |
||
|
11452B
|
11452B
90301-09028 Ring, O(For Oil Level Gage Guide)[03.2017 -] 2URGSE..URZ100 |
90301-09028 |
from US $2.51 |
||
|
12101
|
12101
12111-38160 Pan Sub-Assy, Oil[03.2017 -] 2URGSE..URZ100 |
12111-38160 |
US $515.42 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[03.2017 -] 2URGSE..URZ100 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[03.2017 -] 2URGSE..URZ100 |
90341-T0004 |
US $3.50 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[03.2017 -] 2URGSE..URZ100 |
90430-12031 |
from US $0.80 |
||
|
12101C
|
12101C
90301-35006 Ring, O(For Timing Gear Case, Lower)[03.2017 -] 2URGSE..URZ100 |
90301-35006 |
from US $2.72 |
||
|
12102A
|
12102A
12102-38021 Pan Sub-Assy, Oil, No.2OIL, NO.2 [03.2017 -] 2URGSE..URZ100 |
12102-38021 |
from US $159.08 |
||
|
12121
|
12121
12121-38110 Plate, Oil Pan Baffle, No.1[03.2017 -] 2URGSE..URZ100 |
12121-38110 |
US $72.36 |
||
|
12258A
|
12258A
12269-38010 Gasket, Oil Return Pipe[03.2017 -] 2URGSE..URZ100 |
12269-38010 |
from US $4.79 |
||
|
15301
|
15301
15301-38090 Gage Sub-Assy, Oil Level[03.2017 -] 2URGSE..URZ100 |
15301-38090 |
US $10.05 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[03.2017 -] 2URGSE..URZ100 |
96741-19005 |
from US $2.36 |
||
|
15708
|
15708
15708-38030 Nozzle Sub-Assy, Oil, No.1[03.2017 -] 2URGSE..URZ100 |
15708-38030 |
US $18.31 |
||
|
91552K1030
|
91552K1030
91552-K1030 BOLT FLANGE |
91552-K1030 |
US $0.93 |
||
|
91673A0614
|
91673A0614
91673-A0614 BOLT, FLANGE W-WASER |
91673-A0614 |
from US $0.63 |
||
|
9011006018
|
9011006018
90110-06018 Bolt(For Rear Steering Worm Control Cam) |
90110-06018 |
from US $0.68 |
||
|
9011906938
|
9011906938
90119-06938 BOLT WWASHER |
90119-06938 |
from US $0.63 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.63 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9021009020
|
9021009020
90210-09020 WASHER SEAL |
90210-09020 |
US $0.96 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
