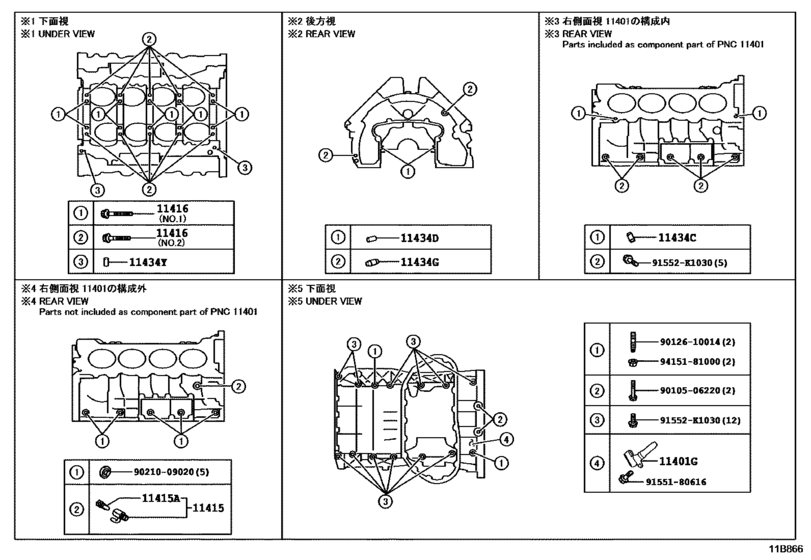

Cylinder Block ([03.2017 - ] (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401G
|
11401G
90919-05071 Sensor, Crank Position[03.2017 -] 2URGSE..URZ100 |
90919-05071 |
from US $69.38 |
||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[03.2017 -] 2URGSE..URZ100 |
90910-09129 |
from US $6.63 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[03.2017 -] 2URGSE..URZ100 |
90910-09087 |
from US $2.95 |
||
|
11416
|
11416
90910-02154 Bolt(For Crankshaft Bearing Cap Set)[03.2017 -] 2URGSE..URZ100 NO.1:REFER ILLUST. |
90910-02154 |
from US $4.30 |
||
|
11416
|
11416
90910-02165 Bolt(For Crankshaft Bearing Cap Set)[03.2017 -] 2URGSE..URZ100 NO.2:REFER ILLUST. |
90910-02165 |
from US $2.34 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[03.2017 -] 2URGSE..URZ100 L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11434D
|
11434D
90250-04097 Pin, Straight(For Camshaft Housing Rh)[03.2017 -] 2URGSE..URZ100 L=12,OD=4.0 |
90250-04097 |
US $0.90 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[03.2017 -] 2URGSE..URZ100 |
90250-10113 |
from US $0.97 |
||
|
11434Y
|
11434Y
90250-04097 Pin, Straight(For Camshaft Housing Rh)[03.2017 -] 2URGSE..URZ100 |
90250-04097 |
US $0.90 |
||
|
91552K1030
|
91552K1030
91552-K1030 BOLT FLANGE |
91552-K1030 |
US $0.93 |
||
|
9010506220
|
9010506220
90105-06220 BOLT WASHER BASED |
90105-06220 |
US $1.79 |
||
|
9012610014
|
9012610014
90126-10014 Bolt, Stud(For Manifold To Cylinder Head) |
90126-10014 |
from US $3.29 |
||
|
9021009020
|
9021009020
90210-09020 WASHER SEAL |
90210-09020 |
US $0.96 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
