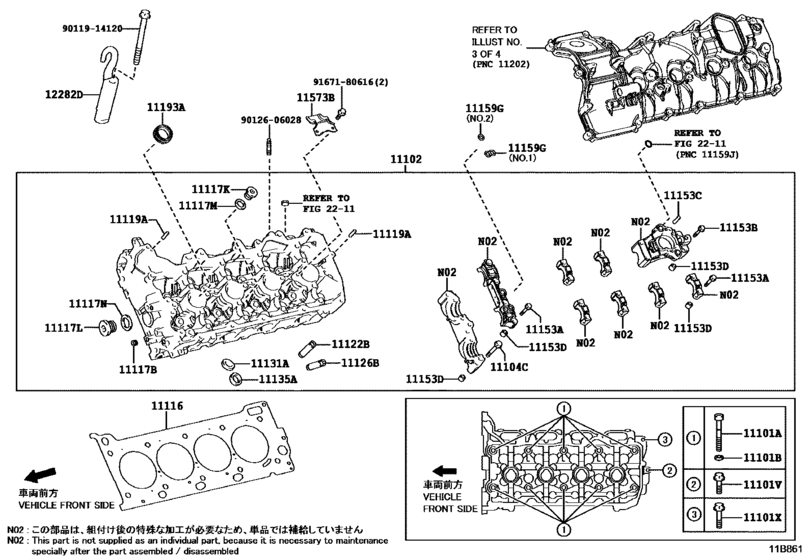

Cylinder Head ([03.2017 - ] CYLINDER HEAD(LH BANK) (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101A
|
11101A
90910-02164 Bolt(For Cylinder Head Set)[03.2017 -] 2URGSE..URZ100 |
90910-02164 |
from US $5.56 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[03.2017 -] 2URGSE..URZ100 |
90201-11034 |
from US $0.87 |
||
|
11101V
|
11101V
91551-80825 Bolt(For Cylinder Head Set Sub)[03.2017 -] 2URGSE..URZ100 |
91551-80825 |
from US $0.78 |
||
|
11101X
|
11101X
91551-F0855 Bolt(For Cylinder Head Set Sub)[03.2017 -] 2URGSE..URZ100 |
91551-F0855 |
from US $0.91 |
||
|
11102
|
11102
11102-39276 Head, Cylinder, Lh[03.2017 -] 2URGSE..URZ100 |
11102-39276 |
US $1,572.48 |
||
|
11104C
|
11104C
91671-G0860 Bolt(For Camshaft Housing Set)[03.2017 -] 2URGSE..URZ100 |
91671-G0860 |
US $1.31 |
||
|
11116
|
11116
11116-38020 Gasket, Cylinder Head, No.2[03.2017 -] 2URGSE..URZ100 |
11116-38020 |
US $81.94 |
||
|
11117B
|
11117B
90344-51005 Plug, W/head Taper Screw, No.1[03.2017 -] 2URGSE..URZ100 |
90344-51005 |
US $3.58 |
||
|
11117K
|
11117K
90341-20012 Plug, W/head Straight Screw, No.1[03.2017 -] 2URGSE..URZ100 |
90341-20012 |
US $3.58 |
||
|
11117L
|
11117L
90341-27006 Plug, W/head Straight Screw, No.1[03.2017 -] 2URGSE..URZ100 |
90341-27006 |
from US $5.73 |
||
|
11117M
|
11117M
90430-20004 Gasket(For Cylinder Head Screw Plug)[03.2017 -] 2URGSE..URZ100 |
90430-20004 |
from US $0.93 |
||
|
11117N
|
11117N
90430-27005 Gasket(For Cylinder Head Screw Plug)[03.2017 -] 2URGSE..URZ100 |
90430-27005 |
from US $1.25 |
||
|
11119A
|
11119A
90250-05021 Pin, Straight[03.2017 -] 2URGSE..URZ100 L=13.8,OD=5.0 |
90250-05021 |
from US $0.67 |
||
|
11122B
|
11122B
11122-31050 Bush, Intake Valve Guide[03.2017 -] 2URGSE..URZ100 STD |
11122-31050 |
US $7.02 |
||
|
11122B
|
11122B
11123-31050 Bush, Intake Valve Guide[03.2017 -] 2URGSE..URZ100 O/S 0.05 |
11123-31050 |
from US $7.02 |
||
|
11126B
|
11126B
11126-31030 Bush, Exhaust Valve Guide[03.2017 -] 2URGSE..URZ100 STD |
11126-31030 |
US $7.02 |
||
|
11126B
|
11126B
11127-31030 Bush, Exhaust Valve Guide[03.2017 -] 2URGSE..URZ100 O/S 0.05 |
11127-31030 |
US $7.02 |
||
|
11131A
|
11131A
11131-31040 Seat, Intake Valve[03.2017 -] 2URGSE..URZ100 STD |
11131-31040 |
from US $7.33 |
||
|
11131A
|
11131A
11132-31040 Seat, Intake Valve[03.2017 -] 2URGSE..URZ100 O/S 0.03 |
11132-31040 |
US $9.46 |
||
|
11135A
|
11135A
11135-38060 Seat, Exhaust Valve[03.2017 -] 2URGSE..URZ100 STD |
11135-38060 |
US $10.34 |
||
|
11135A
|
11135A
11136-38060 Seat, Exhaust Valve[03.2017 -] 2URGSE..URZ100 O/S 0.03 |
11136-38060 |
US $10.34 |
||
|
11153A
|
11153A
90119-07013 Bolt(For Camshaft Bearing Cap To Housing Rh, No.1)[03.2017 -] 2URGSE..URZ100 |
90119-07013 |
US $1.31 |
||
|
11153B
|
11153B
90119-08A58 Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)[03.2017 -] 2URGSE..URZ100 |
90119-08A58 |
US $1.79 |
||
|
11153C
|
11153C
90250-04097 Pin, Straight(For Camshaft Housing Rh)[03.2017 -] 2URGSE..URZ100 |
90250-04097 |
US $0.90 |
||
|
11153D
|
11153D
90253-11021 Pin, Ring[03.2017 -] 2URGSE..URZ100 |
90253-11021 |
from US $1.41 |
||
|
11159G
|
11159G
11159-31010 Gasket, Camshaft Bearing Cap Oil Hole, Rh[03.2017 -] 2URGSE..URZ100 NO.1:REFER ILLUST. |
11159-31010 |
from US $1.41 |
||
|
11159G
|
11159G
11159-38010 Gasket, Camshaft Bearing Cap Oil Hole, Rh[03.2017 -] 2URGSE..URZ100 NO.2:REFER ILLUST. |
11159-38010 |
from US $3.12 |
||
|
11193A
|
11193A
11193-38030 Gasket, Spark Plug Tube[03.2017 -] 2URGSE..URZ100 |
11193-38030 |
from US $2.76 |
||
|
11573B
|
11573B
11573-38030 Plate, Oil Reflector, Rh[03.2017 -] 2URGSE..URZ100 |
11573-38030 |
US $5.24 |
||
|
12282D
|
12282D
12081-38040 Hanger, Engine, No.1[03.2017 -] 2URGSE..URZ100 |
12081-38040 |
from US $58.01 |
||
|
9011914120
|
9011914120
90119-14120 Bolt arm low front |
90119-14120 |
from US $4.43 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
