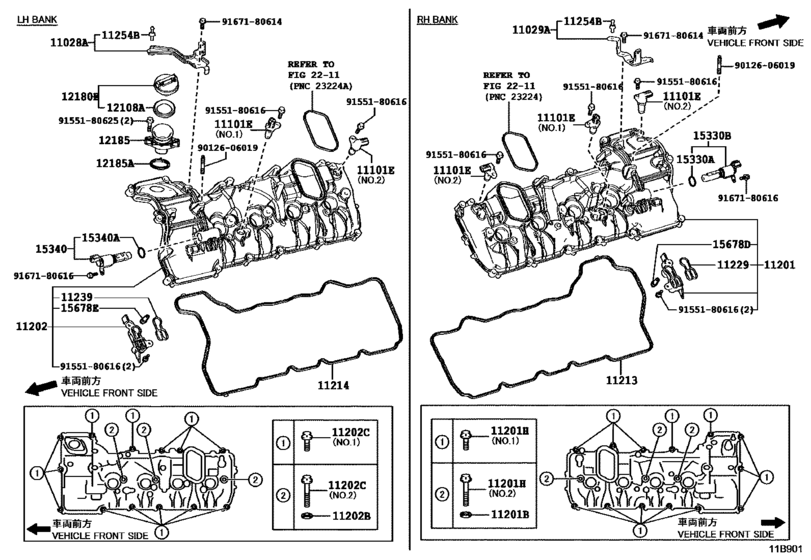

Cylinder Head ([03.2017 - ] CYLINDER HEAD COVER (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11028A
|
11028A
1102B-38020 Bracket Sub-Assy, V-Bank Cover, No.4[03.2017 -] 2URGSE..URZ100 |
1102B-38020 |
US $14.56 |
||
|
11029A
|
11029A
1102A-38040 Bracket Sub-Assy, V-Bank Cover, No.3[03.2017 -] 2URGSE..URZ100 |
1102A-38040 |
US $14.56 |
||
|
11101E
|
11101E
90919-05060 Sensor, Cam Position[03.2017 -] 2URGSE..URZ100 NO.1:REFER ILLUST. |
90919-05060 |
from US $69.38 |
||
|
11101E
|
11101E
90919-05061 Sensor, Cam Position[03.2017 -] 2URGSE..URZ100 NO.2:REFER ILLUST. |
90919-05061 |
from US $69.38 |
||
|
11201
|
11201
11201-38090 Cover Sub-Assy, Cylinder Head[03.2017 -] 2URGSE..URZ100 |
11201-38090 |
US $267.90 |
||
|
11201B
|
11201B
90210-08045 Washer, Seal(For Cylinder Head Cover)[03.2017 -] 2URGSE..URZ100 |
90210-08045 |
US $1.43 |
||
|
11201H
|
11201H
91551-80870 Bolt(For Cylinder Head Cover)[03.2017 -] 2URGSE..URZ100 NO.2:REFER ILLUST. |
91551-80870 |
from US $1.05 |
||
|
11201H
|
11201H
91551-A0625 Bolt(For Cylinder Head Cover)[03.2017 -] 2URGSE..URZ100 NO.1:REFER ILLUST. |
91551-A0625 |
US $1.08 |
||
|
11202
|
11202
11202-38060 Cover Sub-Assy, Cylinder Head, Lh[03.2017 -] 2URGSE..URZ100 |
11202-38060 |
US $267.90 |
||
|
11202B
|
11202B
90210-08045 Washer, Seal(For Cylinder Head Cover)[03.2017 -] 2URGSE..URZ100 |
90210-08045 |
US $1.43 |
||
|
11202C
|
11202C
91551-80870 Bolt(For Cylinder Head Cover)[03.2017 -] 2URGSE..URZ100 NO.2:REFER ILLUST. |
91551-80870 |
from US $1.05 |
||
|
11202C
|
11202C
91551-A0625 Bolt(For Cylinder Head Cover)[03.2017 -] 2URGSE..URZ100 NO.1:REFER ILLUST. |
91551-A0625 |
US $1.08 |
||
|
11213
|
11213
11213-38040 Gasket, Cylinder Head Cover[03.2017 -] 2URGSE..URZ100 |
11213-38040 |
US $15.33 |
||
|
11214
|
11214
11214-38030 Gasket, Cylinder Head Cover, No.2[03.2017 -] 2URGSE..URZ100 |
11214-38030 |
from US $15.33 |
||
|
11229
|
11229
11229-38030 Gasket, Cylinder Head Cover, No.3[03.2017 -] 2URGSE..URZ100 |
11229-38030 |
from US $3.80 |
||
|
11239
|
11239
11229-38030 Gasket, Cylinder Head Cover, No.3[03.2017 -] 2URGSE..URZ100 |
11229-38030 |
from US $3.80 |
||
|
11254B
|
11254B
11254-31020 Bracket, V-Bank Cover, No.1[03.2017 -] 2URGSE..URZ100 |
11254-31020 |
US $1.79 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[03.2017 -] 2URGSE..URZ100 |
90430-35001 |
from US $1.14 |
||
|
12180E
|
12180E
12180-38010 Cap Sub-Assy, Oil Filler[03.2017 -] 2URGSE..URZ100 |
12180-38010 |
from US $11.13 |
||
|
12185
|
12185
12185-38020 Housing, Oil Filler Cap[03.2017 -] 2URGSE..URZ100 |
12185-38020 |
from US $17.10 |
||
|
12185A
|
12185A
12196-38010 Gasket, Oil Filler Cap Housing[03.2017 -] 2URGSE..URZ100 |
12196-38010 |
from US $3.15 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[03.2017 -] 2URGSE..URZ100 |
90099-14137 |
from US $2.11 |
||
|
15330B
|
15330B
15330-38010 Valve Assy, Cam Timing Oil Control, Rh[03.2017 -] 2URGSE..URZ100 |
15330-38010 |
from US $82.84 |
||
| replacement | |||||
|
15330B
|
15330B
15330-0S010 Valve Assy, Cam Timing Oil Control, Rh[03.2017 -] 2URGSE..URZ100 |
15330-0S010 |
US $278.93 |
||
|
15340
|
15340
15330-38010 Valve Assy, Cam Timing Oil Control, Rh[03.2017 -] 2URGSE..URZ100 |
15330-38010 |
from US $82.84 |
||
| replacement | |||||
|
15340
|
15340
15330-0S010 Valve Assy, Cam Timing Oil Control, Rh[03.2017 -] 2URGSE..URZ100 |
15330-0S010 |
US $278.93 |
||
|
15340A
|
15340A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[03.2017 -] 2URGSE..URZ100 |
90099-14137 |
from US $2.11 |
||
|
15678D
|
15678D
15678-46020 Filter, Oil Control Valve[03.2017 -] 2URGSE..URZ100 |
15678-46020 |
from US $3.38 |
||
|
15678E
|
15678E
15678-46020 Filter, Oil Control Valve[03.2017 -] 2URGSE..URZ100 |
15678-46020 |
from US $3.38 |
||
|
9012606019
|
9012606019
90126-06019 New Genuine Part |
90126-06019 |
US $2.33 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
