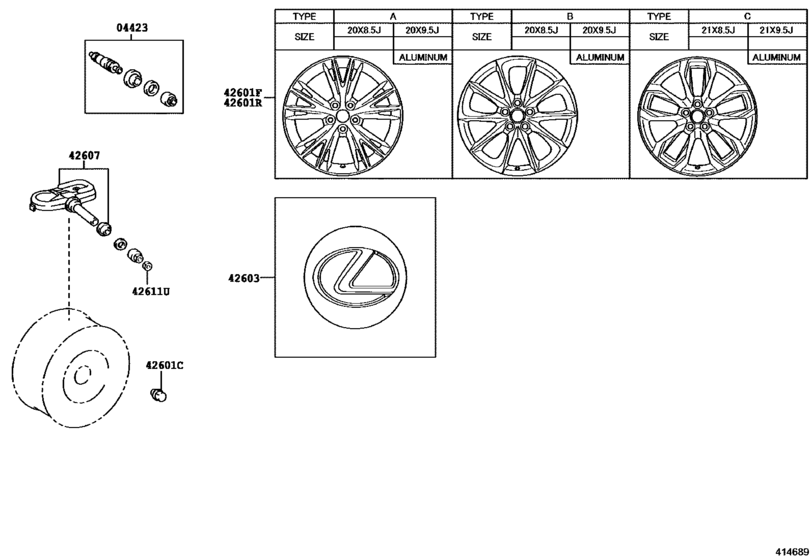

Disc Wheel & Wheel Cap ([01.2017 - ] (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[01.2017 -] GWZ100,URZ100 |
04423-33060 |
from US $4.35 |
||
|
42601C
|
42601C
90942-01111 Nut[03.2017 -] URZ100 TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,DARK CHROME PLATED |
90942-01111 |
from US $8.30 |
||
|
42601C
|
42601C
90942-01118 Nut (BLACK CHROME PLATED)BLACK [03.2017 -] URZ100 CHROME PLATED |
90942-01118 |
US $12.90 |
||
|
42601F
|
42601F
42611-11040 Wheel, Disc[03.2017 -] URZ100 20X8.5J,TYPE A:REFER ILLUST. |
42611-11040 |
US $965.33 |
||
|
42601F
|
42601F
42611-11050
Wheel, Disc (For Front)
[03.2017 -] URZ100 20X8.5J,CANADA SPEC,TYPE A:REFER ILLUST. |
42611-11050 |
— | ||
|
42601F
|
42601F
42611-11090 Wheel, Disc (For Front)[01.2017 -] GWZ100,URZ100 21X8.5J,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED,TYPE C:REFER ILLUST. |
42611-11090 |
US $2,970.24 |
||
|
42601F
|
42601F
42611-11120 Wheel, Disc (For Front)[03.2017 -] URZ100 20X8.5J,CANADA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,TYPE B:REFER ILLU ST.; URZ100 20X8.5J,KOREA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,TYPE B:REFER ILLUS T.; URZ100 20X8.5J,TIRE & DISK WHEEL-245/45 & 275/40RF20 F |
42611-11120 |
US $2,766.40 |
||
|
42601R
|
42601R
42611-11060 Wheel, Disc (For Rear)[03.2017 -] URZ100 20X9.5J,TYPE A:REFER ILLUST. |
42611-11060 |
US $982.80 |
||
|
42601R
|
42601R
42611-11070
Wheel, Disc (For Rear)
[03.2017 -] URZ100 20X9.5J,CANADA SPEC,TYPE A:REFER ILLUST. |
42611-11070 |
— | ||
|
42601R
|
42601R
42611-11110 Wheel, Disc (For Rear)[01.2017 -] GWZ100,URZ100 21X9.5J,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED,TYPE C:REFER ILLUST. |
42611-11110 |
US $2,999.36 |
||
|
42601R
|
42601R
42611-11130 Wheel, Disc (For Rear)[03.2017 -] URZ100 20X9.5J,CANADA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,TYPE B:REFER ILLU ST.; URZ100 20X9.5J,KOREA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,TYPE B:REFER ILLUS T.; URZ100 20X9.5J,TIRE & DISK WHEEL-245/45 & 275/40RF20 F |
42611-11130 |
US $2,795.52 |
||
|
42603
|
42603
42603-53110 Ornament Sub-Assy, Wheel Hub[01.2017 -] GWZ100,URZ100 *ALU |
42603-53110 |
from US $22.51 |
||
|
42607
|
42607
42607-48010 Valve Sub-Assy, Tire Pressure Monitor[01.2017 -] GWZ100,URZ100 |
42607-48010 |
from US $86.24 |
||
|
42607
|
42607
42607-48020 Valve Sub-Assy, Tire Pressure Monitor[01.2017 -] GWZ100,URZ100 KOREA SPEC; GWZ100 KOREA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 CAST |
42607-48020 |
from US $82.84 |
||
|
42611U
|
42611U
90942-05042 Cap, Tire Valve[01.2017 -] GWZ100,URZ100 |
90942-05042 |
from US $1.61 |
