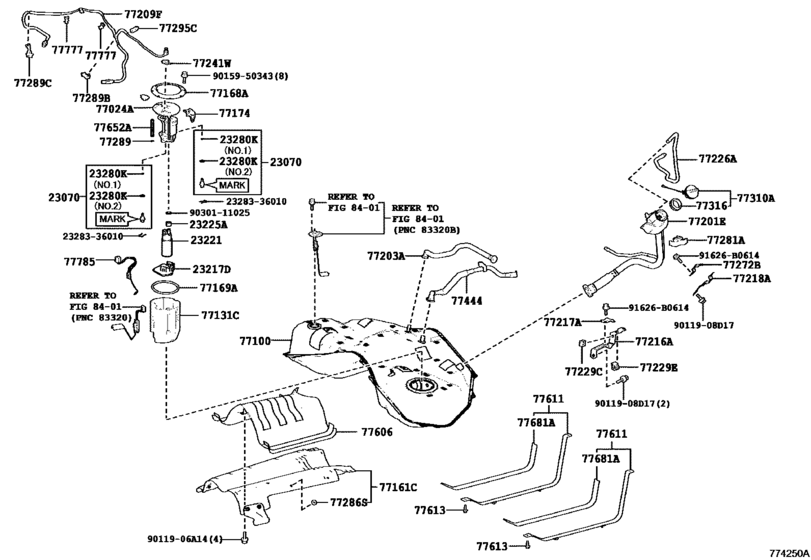

Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23070
|
23070
23070-31030 Valve Assy, Fuel Main[01.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 MARK 23070-31030 |
23070-31030 |
from US $26.81 |
||
|
23070
|
23070
23280-38020 Valve Assy, Fuel Main[03.2017 -] 2URGSE..URZ100 MARK 23280-38020 |
23280-38020 |
from US $50.27 |
||
|
23217D
|
23217D
23217-31080 Filter, Fuel Pump[01.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
23217-31080 |
US $18.70 |
||
|
23221
|
23221
23221-31130 Pump, Fuel[01.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
23221-31130 |
from US $300.87 |
||
|
23225A
|
23225A
23225-31010 Spacer, Fuel Pump[01.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
23225-31010 |
US $0.72 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[01.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 NO.1 |
90301-04013 |
from US $2.13 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[01.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 NO.2 |
90301-15024 |
from US $2.09 |
||
|
77024A
|
77024A
77024-11010 Plate Sub-Assy, Fuel Suction[03.2017 -] URZ100 |
77024-11010 |
from US $84.45 |
||
|
77100
|
77100
77001-11120
Tank Assy, Fuel
[03.2017 -] URZ100 |
77001-11120 |
— | ||
|
77131C
|
77131C
77131-11010 Sub-Tank, Fuel, No.1[01.2017 -] GWZ100,URZ100 |
77131-11010 |
US $18.20 |
||
|
77161C
|
77161C
77607-11010 Protector, Fuel Tank, Lower[01.2017 -] GWZ100,URZ100 |
77607-11010 |
US $67.56 |
||
|
77168A
|
77168A
77168-52020 Plate, Fuel Tank Vent Tube Set[01.2017 -] GWZ100,URZ100 |
77168-52020 |
from US $14.63 |
||
|
77169A
|
77169A
77169-53010 Gasket, Fuel Suction Tube Set[01.2017 -] GWZ100,URZ100 |
77169-53010 |
from US $14.54 |
||
|
77174
|
77174
77174-48040 Support, Fuel Suction, No.1[01.2017 -] GWZ100,URZ100 |
77174-48040 |
US $5.39 |
||
|
77201E
|
77201E
77201-11100
Pipe Sub-Assy, Fuel Tank Filler
[01.2017 -] GWZ100,URZ100 |
77201-11100 |
— | ||
|
77203A
|
77203A
77203-11050
Tube Sub-Assy, Fuel Suction
[01.2017 -] GWZ100,URZ100 |
77203-11050 |
— | ||
|
77209F
|
77209F
77209-11040 Tube Sub-Assy, Fuel Tank Main[03.2017 -] URZ100 |
77209-11040 |
US $49.07 |
||
|
77216A
|
77216A
77216-11010
Support, Fuel Tank Filler Pipe, No.1
[01.2017 -] GWZ100,URZ100 |
77216-11010 |
— | ||
|
77217A
|
77217A
77217-11050
Support, Fuel Tank Filler Pipe, No.2
[01.2017 -] GWZ100,URZ100 |
77217-11050 |
— | ||
|
77218A
|
77218A
77218-11010
Support, Fuel Tank Filler Pipe, No.3
[01.2017 -] GWZ100,URZ100 |
77218-11010 |
— | ||
|
77226A
|
77226A
77226-11030
Tube, Fuel Tank Breather, No.6
[01.2017 -] GWZ100,URZ100 |
77226-11030 |
— | ||
|
77229C
|
77229C
77229-11080 Clamp, Breather Tube[01.2017 -] GWZ100,URZ100 |
77229-11080 |
US $3.93 |
||
|
77229E
|
77229E
77229-11090
Clamp, Breather Tube
[01.2017 -] GWZ100,URZ100 |
77229-11090 |
— | ||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[01.2017 -] GWZ100,URZ100 |
77241-33011 |
from US $0.84 |
||
|
77272B
|
77272B
77272-11030
Support, Breather Tube, No.1
[01.2017 -] GWZ100,URZ100 |
77272-11030 |
— | ||
|
77281A
|
77281A
77229-11100
Clamp, Fuel Filler Pipe
[01.2017 -] GWZ100,URZ100 |
77229-11100 |
— | ||
|
77286S
|
77286S
77286-12110 Cushion, Fuel Tank ProtectorFUEL TANK PROTECTOR [01.2017 -] GWZ100,URZ100 |
77286-12110 |
US $2.62 |
||
|
77289
|
77289
77289-52090 Holder, Fuel Tank Pipe Setting[01.2017 -] GWZ100,URZ100 |
77289-52090 |
US $8.42 |
||
|
77289B
|
77289B
77289-11030 Clamp, Fuel Tube, No.3[01.2017 -] GWZ100,URZ100 |
77289-11030 |
US $3.64 |
||
|
77289C
|
77289C
77289-11040 Clamp, Fuel Tube, No.4[01.2017 -] GWZ100,URZ100 |
77289-11040 |
US $6.55 |
||
|
77295C
|
77295C
77295-35260 Grommet, Fuel Tube[01.2017 -] GWZ100,URZ100 |
77295-35260 |
US $4.37 |
||
|
77310A
|
77310A
77300-53030 Cap Assy, Fuel Tank[03.2017 -] URZ100 |
77300-53030 |
US $32.93 |
||
|
77316
|
77316
77316-75020 Gasket, Fuel Tank Cap[01.2017 -] GWZ100,URZ100 |
77316-75020 |
US $3.58 |
||
|
77444
|
77444
77404-11050
Hose, Fuel Tank Vent
[03.2017 -] URZ100 |
77404-11050 |
— | ||
|
77606
|
77606
77606-11020 Protector Sub-Assy, Fuel Tank, No.1[01.2017 -] GWZ100,URZ100 |
77606-11020 |
US $132.50 |
||
|
77611
|
77611
77601-11040 Band, Fuel Tank[01.2017 -] GWZ100,URZ100 |
77601-11040 |
US $24.61 |
||
|
77613
|
77613
90119-10A05 Bolt, Fuel Tank Band Set[01.2017 -] GWZ100,URZ100 |
90119-10A05 |
US $2.15 |
||
|
77652A
|
77652A
77652-22090 Cushion, Fuel Tank, No.2[01.2017 -] GWZ100,URZ100 |
77652-22090 |
US $6.09 |
||
|
77681A
|
77681A
77681-21020 Seat, Fuel Tank Band, Rh[01.2017 -] GWZ100,URZ100 |
77681-21020 |
US $8.88 |
||
|
77777
|
77777
77778-50020 Bracket, Fuel Tube Clamp[01.2017 -] GWZ100,URZ100 |
77778-50020 |
US $3.06 |
||
|
77785
|
77785
77785-30050 Harness, Fuel Pump[01.2017 -] GWZ100,URZ100 |
77785-30050 |
US $11.65 |
||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
9011906A14
|
9011906A14
90119-06A14 BOLT, W/WASHER |
90119-06A14 |
US $1.08 |
||
|
9011908D17
|
9011908D17
90119-08D17 BOLT WWASHER |
90119-08D17 |
from US $0.89 |
||
|
2328336010
|
2328336010
23283-36010 Holder, Fuel Pressure Regulator |
23283-36010 |
US $1.97 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9030111025
|
9030111025
90301-11025 Ring, O(For Fuel Pump) |
90301-11025 |
from US $2.09 |
