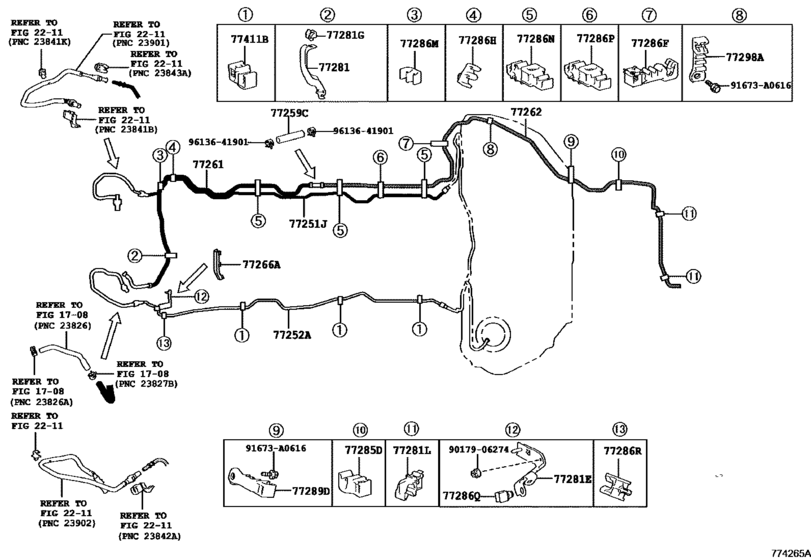

Fuel Tank & Tube ([03.2017 - ] FUEL TUBE (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251J
|
77251J
77252-11010
Tube, Fuel Main, No.1
[03.2017 -] URZ100 |
77252-11010 |
— | ||
|
77252A
|
77252A
77251-11090
Tube, Fuel Main, No.2
[03.2017 -] URZ100 |
77251-11090 |
— | ||
|
77259C
|
77259C
77259-11010 Hose, Fuel[03.2017 -] URZ100 |
77259-11010 |
US $4.37 |
||
|
77261
|
77261
77261-11020
Tube Sub-Assy, Fuel Emission
[03.2017 -] URZ100 |
77261-11020 |
— | ||
|
77262
|
77262
77262-11010 Tube, Fuel Emission, No.2[03.2017 -] URZ100 |
77262-11010 |
US $93.18 |
||
|
77266A
|
77266A
77266-11010
Protector, Fuel Tube, No.1
[03.2017 -] URZ100 |
77266-11010 |
— | ||
|
77281
|
77281
77281-11080
Bracket, Fuel Main Tube, No.1
[03.2017 -] URZ100 |
77281-11080 |
— | ||
|
77281E
|
77281E
77281-11030
Bracket, Fuel Main Tube, No.1
[03.2017 -] URZ100 |
77281-11030 |
— | ||
|
77281G
|
77281G
77281-48030 Clamp, Fuel Filler Pipe[03.2017 -] URZ100 |
77281-48030 |
US $4.30 |
||
|
77281L
|
77281L
89639-28130 Clamp, Fuel Hose[01.2017 -] GWZ100,URZ100 |
89639-28130 |
US $5.56 |
||
|
77285D
|
77285D
77285-11010 Clamp, Fuel Tube, No.1[01.2017 -] GWZ100,URZ100 |
77285-11010 |
US $5.24 |
||
|
77286F
|
77286F
77286-11010 Clamp, Fuel Tube, No.2[01.2017 -] GWZ100,URZ100 |
77286-11010 |
US $7.28 |
||
|
77286H
|
77286H
77286-11020 Clamp, Fuel Tube, No.3[01.2017 -] GWZ100,URZ100 |
77286-11020 |
US $4.37 |
||
|
77286M
|
77286M
77286-11030
Clamp, Fuel Tube, No.6
[03.2017 -] URZ100 |
77286-11030 |
— | ||
|
77286N
|
77286N
77289-11050 Clamp, Fuel Tube, No.7[03.2017 -] URZ100 |
77289-11050 |
US $9.76 |
||
|
77286P
|
77286P
77289-11060 Clamp, Fuel Tube, No.8[03.2017 -] URZ100 |
77289-11060 |
US $8.01 |
||
|
77286Q
|
77286Q
77286-11060 Clamp, Fuel Hose[03.2017 -] URZ100 |
77286-11060 |
US $3.35 |
||
|
77286R
|
77286R
77286-11050 Clamp, Fuel Tube, No.10[03.2017 -] URZ100 |
77286-11050 |
US $2.62 |
||
|
77289D
|
77289D
77298-11020 Clamp, Fuel Tube, No.5[01.2017 -] GWZ100,URZ100 |
77298-11020 |
US $7.86 |
||
|
77298A
|
77298A
77298-11010 Clamp, Fuel Tube, No.4[01.2017 -] GWZ100,URZ100 |
77298-11010 |
US $7.13 |
||
|
77411B
|
77411B
77411-48050 Support, Fuel Tube Grommet, No.1[03.2017 -] URZ100 |
77411-48050 |
US $6.12 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
from US $0.63 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9613641901
|
9613641901
96136-41901 Clip Or Clamp(For Ventilation Hose) |
96136-41901 |
from US $2.05 |
